HEARTLAND PROWLER 302BH – Entry Door Hinge Repair

by

Complete repair guide for the HEARTLAND PROWLER 302BH – Entry Door Hinge Repair.

Parts & Tools You’ll Need

Step 1: Diagnose Door Issues and Prepare Workspace

Begin by fully opening and closing the entry door multiple times while observing its movement—note any sagging, binding, or gaps along the frame perimeter. Check for visible rust, corrosion, or bent hinge brackets, and inspect the weatherstrip seal for cracks, compression, or separation from the door frame. Remove all contents from the entry vestibule and lay down cardboard or a drop cloth to protect flooring. Disconnect your RV’s interior lighting near the door if necessary for safe access, and gather your tools: a cordless drill, socket set, level, measuring tape, and a helper to support the door weight during removal.

Step 2: Remove and Support the Entry Door Assembly

Open the door to 90 degrees and place a floor jack or adjustable support stand beneath the door’s bottom edge to bear its full weight—do not rely on hinges alone during this process. Locate the upper and lower hinge pin retaining clips or cotter pins and carefully remove them using needle-nose pliers, then gently tap upward on the door frame with a rubber mallet to separate it from the hinge pins. Inspect the hinge pins for damage or wear; if they’re bent or pitted, they’ll need replacement along with the hinges. Have your helper support the door from the side while you work, then carefully set it on a padded sawhorse or workbench for detailed inspection of the hinge mounting points.

Step 3: Remove Damaged Hinges and Clean Mounting Surfaces

Using your cordless drill with the appropriate bit, remove all fasteners securing the RV Entry Door Hinge (surface-mount, pair) to both the door and the frame—typically 6-8 screws per hinge. Once hinges are detached, inspect the screw holes and surrounding area for stripped threads, corrosion, or damage; use a wire brush or steel wool to remove rust and old caulk buildup. If screw holes are enlarged or damaged, you’ll need to use the Hinge Screw + Anchor Bolt Kit to re-secure hinges with larger fasteners in slightly offset positions. Wipe the mounting surfaces clean with a dry cloth and inspect the door frame for any warping or deformation that might affect hinge alignment.

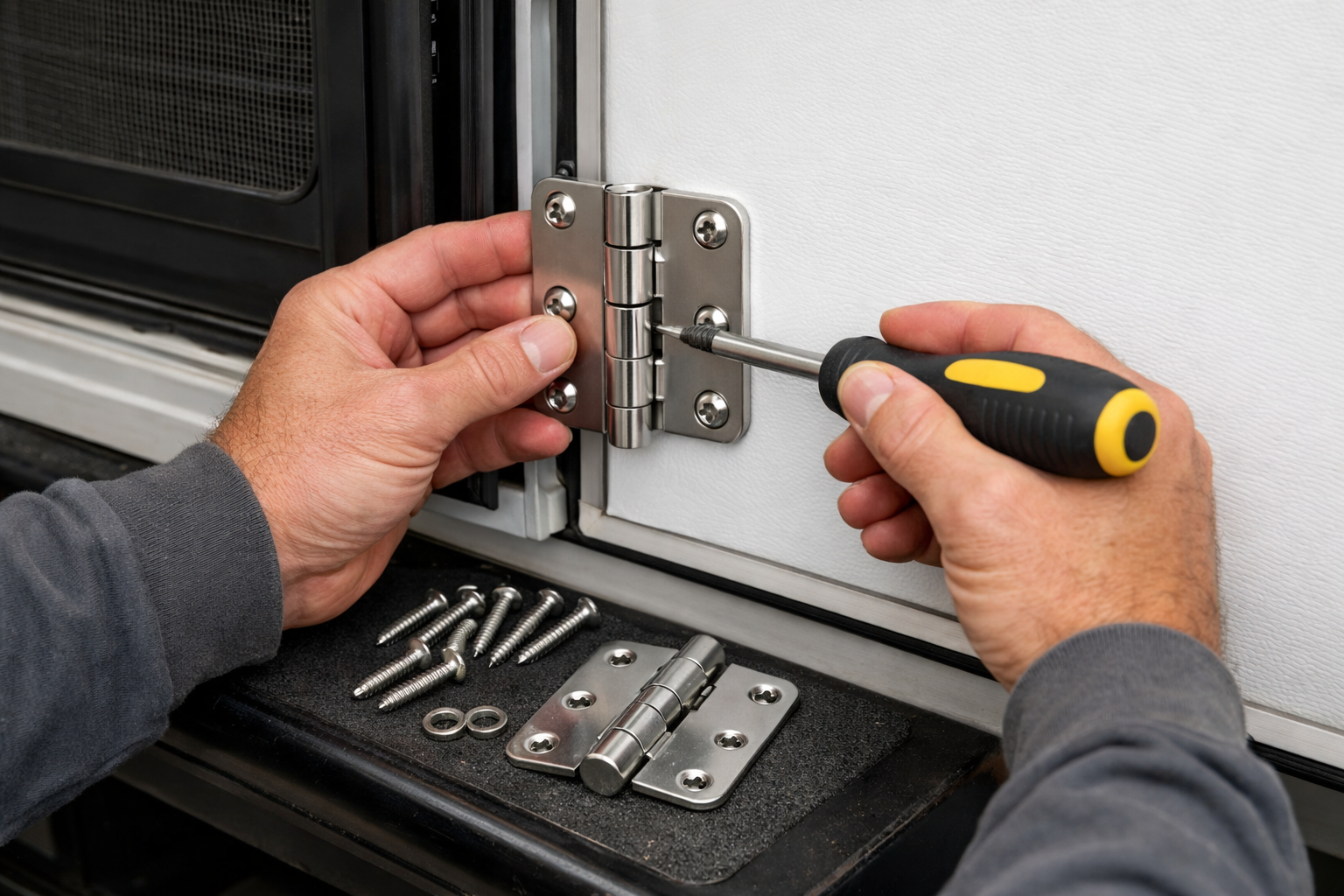

Step 4: Install New RV Entry Door Hinges Correctly

Position the new RV Entry Door Hinge (surface-mount, pair) on the door first, aligning the hinge barrel with the vertical centerline of the door edge and ensuring the hinge sits flush against the door surface with no gaps. Install the upper hinge 2-3 inches below the top of the door and the lower hinge 2-3 inches above the bottom, using the Hinge Screw + Anchor Bolt Kit and tightening fasteners to 15-18 foot-pounds with a torque wrench. Next, reinstall the door onto the frame hinges and insert the hinge pins, then secure the pin retaining clips. Check the door operation through 5-10 full open-close cycles, watching for binding, rubbing, or uneven gaps along the top and sides—you should see a consistent 1/8-inch gap on all sides.

Step 5: Align Door and Correct Frame Gaps

If gaps are uneven or the door sags, use a level on the top edge of the door and check vertical plumb on the side edges—record any deviation from true vertical or horizontal. Loosen the lower hinge fasteners by one-quarter turn and place Door Alignment Shim Set shims behind the hinge as needed to correct vertical alignment; retighten fasteners to 15-18 foot-pounds. Repeat the gap check: the top, bottom, and both sides should show consistent 1/8-inch spacing between door and frame. Make any final adjustments slowly and test door operation again—the door should close smoothly without effort and stop in the same position each time without swinging open or shut.

Step 6: Replace Weatherstrip Seal and Apply Adhesive

Remove the old Door Weatherstrip Seal (foam/rubber) by carefully peeling it away from the door frame channel—if adhesive residue remains, clean it with rubbing alcohol and allow the surface to dry completely for 10 minutes. Apply the Door Seal Adhesive + Primer to the frame channel in a thin, continuous bead following the manufacturer’s instructions; allow the primer to set for the recommended time (typically 2-3 minutes). Starting at the top corner, press the new weatherstrip into the channel firmly using your hand or a rubber roller, working downward and around all sides to ensure full contact and no wrinkles. Trim excess weatherstrip at the bottom corners with a utility knife and allow adhesive to cure for 24 hours before closing the door firmly against the new seal.

Step 7: Final Door Function and Weather Seal Verification

Perform a complete operational test: open and close the door 10 times from both inside and outside, noting smooth operation, proper latching, and no binding at any point in the swing. Visually inspect the weatherstrip seal compression—you should see uniform contact along the entire perimeter with no gaps or areas where light shows through. Check for proper latch engagement by closing the door firmly and attempting to move it side-to-side; there should be no play or movement in the frame. If your RV has a Door Check / Wind Stop Replacement, test that it holds the door open safely at 90 degrees and closes smoothly without slamming. Document your work with photos showing hinge alignment, weatherstrip compression, and final door position, then clean up your workspace and reinstall any trim or interior panels you removed.
