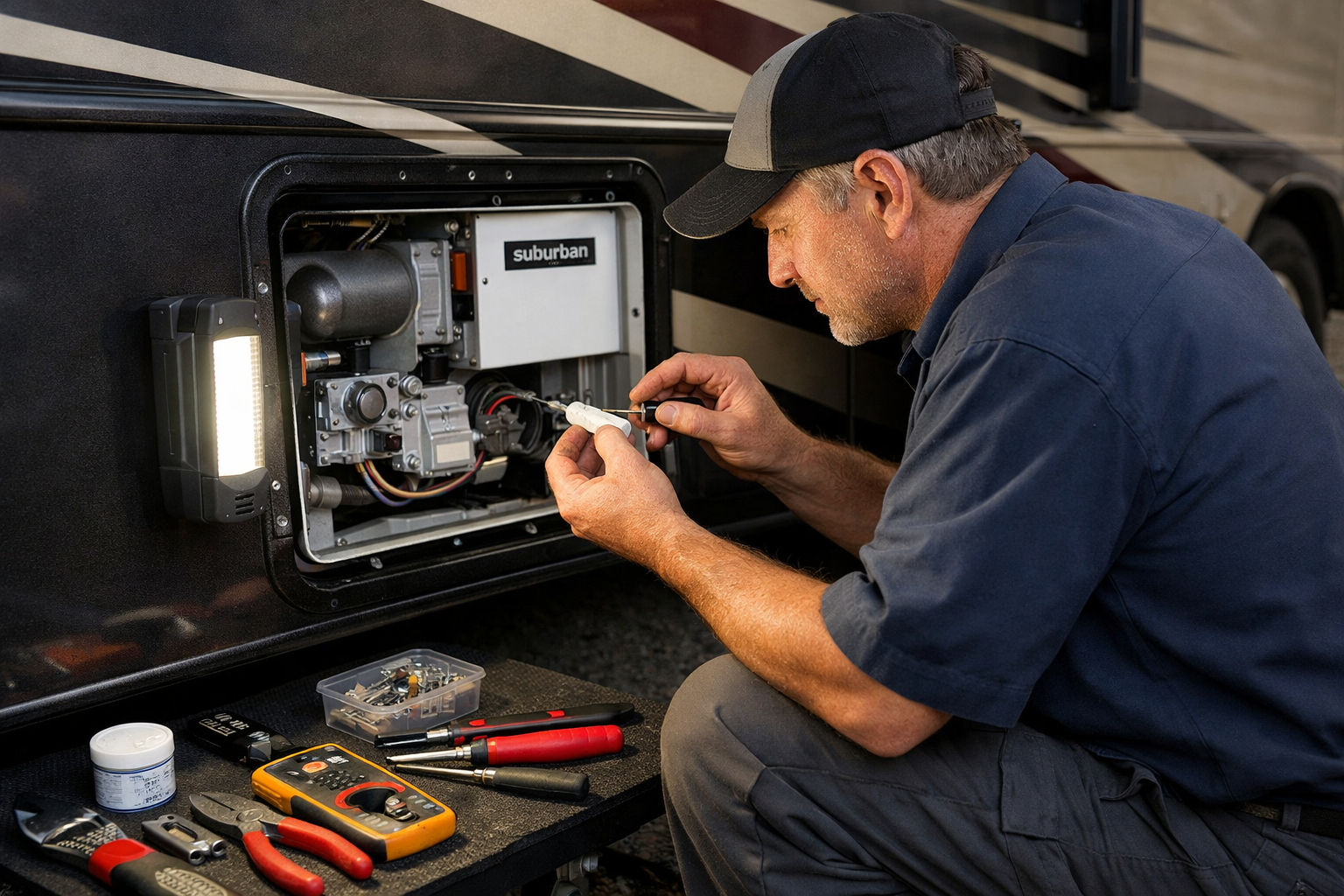

Complete repair guide for the Jayco Alante – Furnace Igniter & Control Board Replacement. Follow these steps to diagnose and fix the issue yourself.
Parts & Tools You’ll Need
- Suburban RP-35Q 35,000 BTU/h RV Replacement Core for Suburban Furnace Series SF-35, SF-35Q, SF-42, SF-42Q, and SF-Q (2609A) — Suburban/Atwood RV furnace (replacement unit)
- Fit For Suburban RV Furnace Parts 232286,Single Probe Gas Furnace Igniters Electrode with Wire Assembly, Camper Furnace For Suburban 232286 Above 934701426 SF-20, SF-25, SF-30, SF-35 (SF Series) — Furnace igniter electrode
- DTAIR 33082 Sail Switch Replacement for Select Dometic Atwood RV Furnace(Pack of 2) — Furnace sail switch
- 520814 Rv Water Heater Module Board Ignition Control Circuit Board Compatible with Suburban Furnace SW4D, SW6D, SW6DE, SW12D, SW6DEM RV Water Heaters,Replace 520814 520820 520871 33550L (With lid) — Furnace circuit board / control board
- DTAIR 33082 Sail Switch Replacement for Select Dometic Atwood RV Furnace(Pack of 2) — Furnace high-limit switch
- Suburban 232684 RV Furnace 12v SF-Series DC Blower Motor, SF-35, SF-35F, SVF-35, SF-42, SF-42F OEM Caliber — Furnace blower motor (12V DC)
- RV Carbon Monoxide & Propane Gas Alarm, Briidea Dual LP/CO Detector with Separate LED Indicator Light, 100dB Loud Alarm, 12 VDC, Black — Propane/CO combo detector alarm
- FKM Pro Digital Multimeter Tester TRMS 6000 Counts,Smart Rechargeable Voltmeter 5″Color LCD,Auto-Ranging Automotive Multimeters,for AC/DC Current/Voltage,NCV,Ohm,Capacitance,Resistance,Continuity,Temp — Digital multimeter
Step 1: Diagnose Furnace Ignition Failure
Before beginning any replacement work, verify the furnace isn’t producing heat by turning on the thermostat and listening for the blower motor engagement. Use your digital multimeter to test for 12V DC power at the igniter electrode connector—if you’re reading zero volts or the furnace clicks repeatedly without igniting, you’ve likely got a failed igniter or control board. Document which symptoms you’re experiencing (no spark, no fuel valve activation, or blower-only operation) as this will guide which components need replacement.
Step 2: Disconnect Power and Propane Supply
Switch off the main 12V DC breaker at your RV’s electrical panel and turn the propane tank valve to the closed position. Wait 5 minutes to allow any residual gas to dissipate from the furnace lines, then open a nearby cabinet or window to ensure adequate ventilation. Never work on furnace components with active power or propane flow—this is a critical safety step that prevents accidental ignition or electrical shock.
Step 3: Remove Furnace Access Panel and Disconnect Harnesses
Locate the furnace access panel (typically held by 4-6 Phillips screws on the exterior of your Jayco Alante) and carefully remove it to expose the internal components. Photograph the igniter electrode and control board harness connections before disconnecting them—note the wire colors and connector positions for reassembly. Gently unplug the multi-pin connector from the control board and the two-pin connector from the igniter electrode, being careful not to bend any pins.
Step 4: Extract the Failing Igniter Electrode Assembly
The igniter electrode is typically secured with a single 8mm bolt or clip at the base of the combustion chamber. Carefully remove this fastener and slide the electrode out at a slight angle—do not force it, as the ceramic insulator can crack if bent sharply. Inspect the electrode tip for cracks, discoloration, or heavy carbon buildup; any of these conditions confirm ignition failure and necessitate full electrode replacement.
Step 5: Install New Igniter Electrode and Control Board
Slide the new igniter electrode into the combustion chamber, ensuring the ceramic insulator sits flush and the electrode tip points toward the burner opening. Secure it with the 8mm fastener, tightening to 4-6 ft-lbs (avoid over-tightening, which can crack the ceramic). Remove the failed control board by unclipping it from its mounting bracket, then install the replacement board in the same position and reconnect all harnesses, matching wire colors to your reference photo.
Step 6: Verify Component Installation and Reassemble
Double-check that the igniter electrode connector is fully seated (you should hear a click) and that the control board harness is fully inserted into its multi-pin connector. Visually inspect the sail switch, high-limit switch, and blower motor connections to ensure nothing was accidentally dislodged during your work. Reinstall the furnace access panel, securing all screws to 2-3 ft-lbs, then restore propane and 12V DC power at the main panel.
Step 7: Test Ignition and Monitor System Performance
Set your thermostat to heat mode and listen for the blower motor to engage within 30 seconds, followed by a clicking spark sound and gas ignition within 60 seconds. Allow the furnace to run for 10 minutes and verify that warm air flows from the vents; the burner should cycle on and off smoothly as the thermostat reaches setpoint. Finally, use your Propane/CO combo detector to confirm no gas leaks or carbon monoxide is present, and document the successful ignition sequence for your maintenance records.
