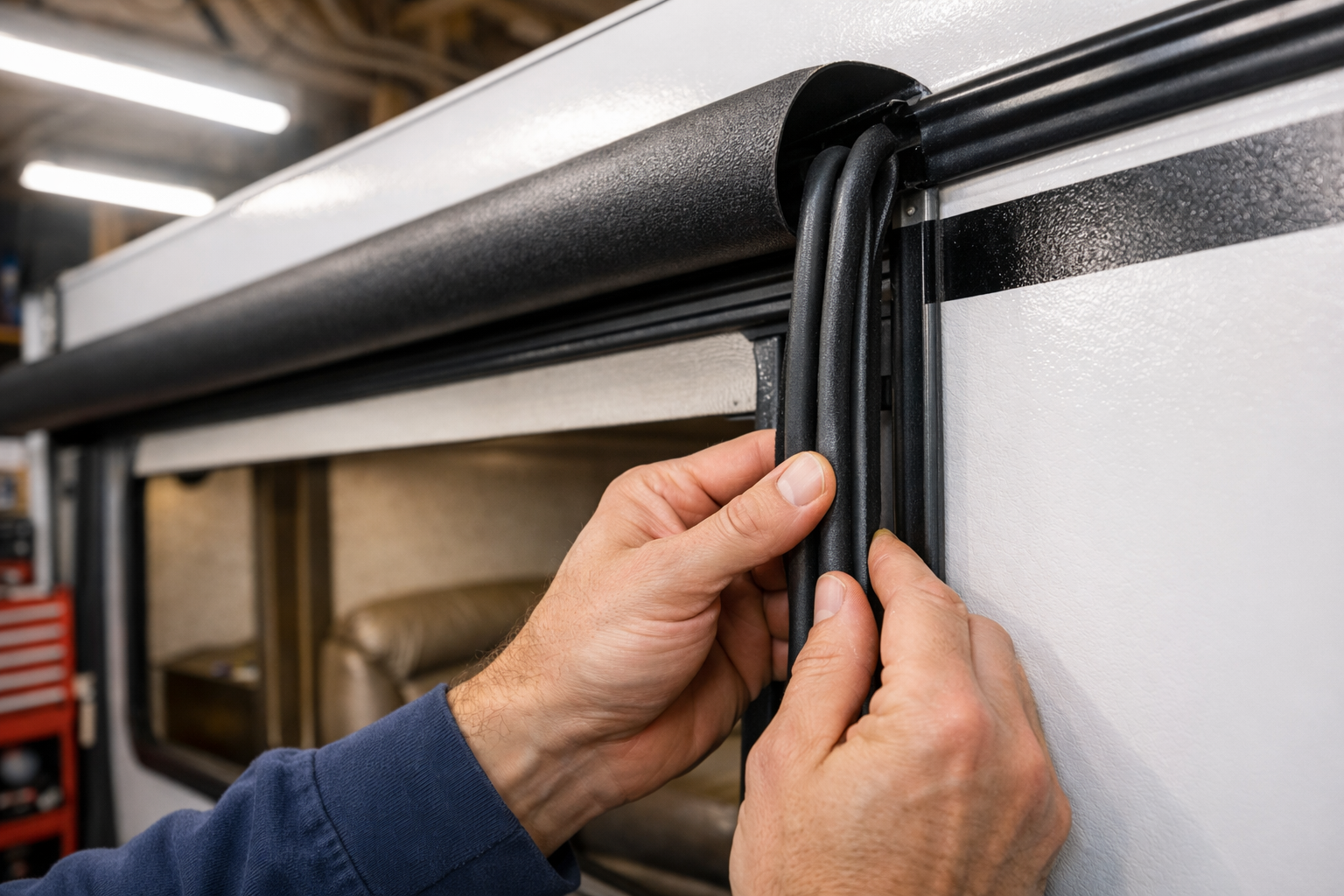

RV Slide-Out Seal & Wiper Replacement Guide

RV Slide-Out Seal & Wiper Replacement Guide

by

RV Slide-Out Seal & Wiper Replacement Guide

A leaking slide-out can dump rain into your living space, damage your flooring and walls, and eventually cause structural wood rot that costs thousands to fix. The good news is that replacing slide-out seals is a DIY-friendly project that costs $50-$200 in materials and a few hours of time — far cheaper than a dealer repair. This guide covers every seal type used on modern RVs, how to identify what you have, and how to replace it correctly so it stays weather-tight for years.

Required Parts & Tools

Step-by-Step Instructions

Step 1: Identifying Your Slide-Out Seal Types

Before buying any replacement seals, you need to identify exactly what type of seals your slide-out uses, as there are several distinct designs. The most common are: D-seals (a hollow D-shaped rubber tube that compresses when the slide is retracted, creating a perimeter air and water seal), wiper seals (a flat rubber blade that drags across the slide surface when retracting or extending, wiping water off and forming a squeegee seal), and bulb seals (a filled or hollow bulb on a mounting base that compresses against the slide-out frame). Many slide-outs use a combination — a wiper seal on the top of the slide opening to shed rain when the slide is out, and D-seals on the sides and bottom for the main weather barrier when the slide is in. To identify what you have, fully extend the slide-out and examine the rubber at each edge of the opening, then retract it fully and examine the same areas again. Take photographs and measurements (total length needed for each side, the profile shape, and the mounting method — adhesive, friction-fit channel, or screwed) before ordering. For vehicles still under warranty, contact your RV manufacturer for the OEM seal part number to ensure compatibility.

Step 2: Inspecting Seals for Failure

Slide-out seal inspection should be part of your pre-trip checklist, especially after winter storage. With the slide fully retracted, run your hand along every seal and look for these failure signs: sections that no longer spring back when pressed (permanent compression set), cracks or tears in the rubber, sections that have pulled away from the mounting channel or adhesive, and areas where daylight is visible around the slide perimeter (in a darkened interior with the slide out, this reveals gaps clearly). For water entry diagnosis, have a helper use a garden hose on low pressure to simulate rain across the slide-out exterior while you watch the interior perimeter for any water entry. Mark all failed areas with masking tape. Also check the slide-out floor seal — many RVs have a rubber or brush seal at the bottom transition between the slide floor and main floor, which can wear through from foot traffic. This bottom seal is often overlooked but is critical for keeping insects and moisture out when traveling with the slide retracted.

Step 3: Removing the Old Seals

Seal removal method depends on how the seal is mounted. Adhesive-mounted seals (the most common) are secured with contact adhesive and must be peeled away carefully to avoid pulling the mounting surface material with them. Work slowly from one end, using a plastic scraper or putty knife to lift the seal where it has bonded firmly. Applying a heat gun on its lowest setting to warm the adhesive makes removal much easier — the adhesive softens at around 120-140°F without damaging the RV material underneath. For seals mounted in a track or channel, slide them out lengthwise from one end. Channel-mounted seals often have a friction-fit bulb that requires firm pulling to extract. For screwed-on seal retaining strips, remove the screws and retain them — reuse the same retaining strip with the new seal. After the old seal is removed, thoroughly clean the mounting surface of all old adhesive residue using a plastic scraper and mineral spirits or Goo Gone. A surface contaminated with old adhesive will not bond well with the new seal. Allow the surface to dry completely before proceeding — any moisture under the new seal will prevent adhesion and cause early failure.

Step 4: Surface Preparation and Measuring

Perfect surface preparation is the most important factor in seal longevity. After removing all old adhesive, clean the entire bonding surface with isopropyl alcohol (70% or higher) on a clean cloth — this removes any silicone, wax, or oil contamination that would prevent adhesion. The surface must be completely dry before applying new seal or adhesive. On the RV exterior substrate (typically an aluminum extrusion or painted wood), check for any deformation, dents, or gaps in the mounting surface itself — a warped mounting channel must be corrected before new seals will lie flat. Now dry-fit the new seal without adhesive: cut it to length (add 1-2 inches extra for trimming to fit), route it around the entire opening, and verify it seats correctly and reaches all corners without gaps. For corners, relief cuts at 45 degrees in the seal body allow it to wrap corners without buckling — cut halfway through the seal profile depth at each corner transition point. These cuts are critical: a straight seal forced around a 90-degree corner will lift and create a leak path exactly where you’re trying to seal.

Step 5: Installing New Seals with Adhesive

For adhesive-mounted seals, use a contact cement specifically rated for rubber-to-substrate bonding — not caulk, not silicone, and not standard construction adhesive. Apply a thin, even coat of contact cement to both the back of the new seal and the mounting surface, following the manufacturer’s pot time (usually 5-10 minutes) before pressing the surfaces together. Contact cement bonds on contact and does not allow repositioning once mated, so position the seal carefully before pressing. Start from one end, pressing down firmly as you work along the entire length. Use a rubber roller or the heel of your hand to apply firm pressure along the entire bond. For corners, use extra adhesive and hold the corner firmly for 60 seconds. After the main adhesive has set (30-60 minutes), apply a bead of Dicor lap sealant along the exposed edge of the seal where it meets the RV’s exterior — this seals the edge and prevents water from wicking under the seal from the outside. Allow the sealant to cure for 24 hours before operating the slide-out. When you do operate it for the first time, do it slowly and observe the seal’s behavior — it should compress evenly without rolling or catching.

Step 6: Sealing Corners and Problem Areas

Corners are the most challenging part of slide-out sealing and the most common source of leaks even after a seal replacement. The issue is that rubber seals are linear components being asked to make a 90-degree turn, and they never do this perfectly. After the main seals are installed and cured, inspect every corner under magnification or bright lighting. Any gap at a corner joint, no matter how small, will allow water intrusion under wind pressure. Fill corner gaps with a compatible sealant — typically butyl rubber or lap sealant — applied with a small brush or gloved finger to work it deep into the gap. Smooth it flush with the adjacent seal surface. For top-corner areas where the slide-out room ceiling meets the side walls, a small bead of lap sealant along the interior corner, applied from inside the coach, provides a final backup seal. Also inspect the area where the slide-out floor meets the main floor: brush seals and transition strips at the bottom are the most wear-prone component in the entire slide system and should be replaced if any bristles are missing, the rubber is cracked, or the strip is more than a few years old.

Step 7: Conditioning and Long-Term Maintenance Schedule

New seals will last far longer with regular conditioning using a protectant like 303 Aerospace Protectant, which prevents UV degradation and keeps the rubber supple. Apply 303 to all accessible seals at least twice a year — spring and fall — by spraying it on and wiping with a clean cloth. This prevents the compression set that turns flexible seals into rigid, cracked strips. Do not use silicone-based protectants or WD-40 on seals — silicone makes the rubber slip but does not condition it, and WD-40 actually accelerates rubber degradation. Also apply slide-out lubricant to the slide-out mechanism rails and gears according to your slide system type: rack-and-pinion systems need white lithium grease on the rack teeth, while Schwintek in-wall systems need a dry lube spray on the gear rails. Lubricate these every six months whether or not the slide-out has been operated. Keep a maintenance log with the date of each seal inspection, any touch-up sealant applied, and the next scheduled replacement — most D-seals last 5-7 years in regular use, and wiper seals last 3-5 years before they need replacement.
