American Coach American Eagle – AC Capacitor & Fan Motor Service

Your American Coach American Eagle’s owner’s manual doesn’t flag it, and most dealer service advisors won’t mention it until the bill arrives: a failed run capacitor on the rooftop AC unit almost never travels alone. What looks like a simple $60 part swap—and what I’ve seen quoted at $400+ in labor—is actually a diagnostic checkpoint. That capacitor has been failing gradually for weeks or months before it quits completely, and during that whole time, the fan motor has been pulling amperage it shouldn’t, the compressor has been short-cycling, and the whole assembly has been thermally stressed in ways that don’t show up until you’re stranded in July heat. I’ve flipped enough American Eagles to know that replacing just the capacitor while ignoring what that failure tells you about the rest of the system is how you end up with a condenser that needs complete replacement—the kind of mistake that wipes out your margin and then some. This is the exact process I follow: what to check, what part actually fits without modification, and how to read the system state before you order anything.

Why the Run Capacitor Matters More Than You Think on American Coach American Eagles

A run capacitor that’s reached end-of-life doesn’t just stop working—it denies the fan motor the electrical phase shift required to operate within its design window. Without that capacitor doing its job, the motor draws excessive current and runs hot; meanwhile, the compressor begins short-cycling because pressures climb faster than they should. On the American Coach American Eagle platform, this cascade can bake your control board relay and winding insulation before the season ends. Catching and replacing the Dometic capacitor early solves part of the problem; understanding what that failure pattern means for the rest of your cooling system solves the other part.

Parts and Tools

• Replacement run capacitor rated 60/5 MFD at 370V AC, matched to the Dometic 3312195.000 specification — check current price
• Replacement fan motor assembly (Dometic 3312195.000 or equivalent) if motor windings test open or shorted — check current price
• Digital multimeter capable of measuring AC voltage, resistance, and capacitance (or dedicated capacitor tester)
• Needle-nose pliers and small flathead screwdriver for terminal disconnection
• Insulated work gloves and safety glasses for rooftop work
• Ladder rated for roof access on your rig

Step-by-Step Instructions

Step 1: Kill power to the AC unit and verify isolation

Locate the main 120V AC breaker for your rooftop unit inside the coach and switch it off. Wait 60 seconds for any residual charge to bleed from the capacitor. Use your multimeter set to AC voltage to confirm zero volts across the capacitor terminals. Do not proceed until the meter reads 0V. Take a photo of the capacitor terminals and their wire positions before touching anything—this prevents reconnection errors.

Step 2: Access the capacitor and document its current state

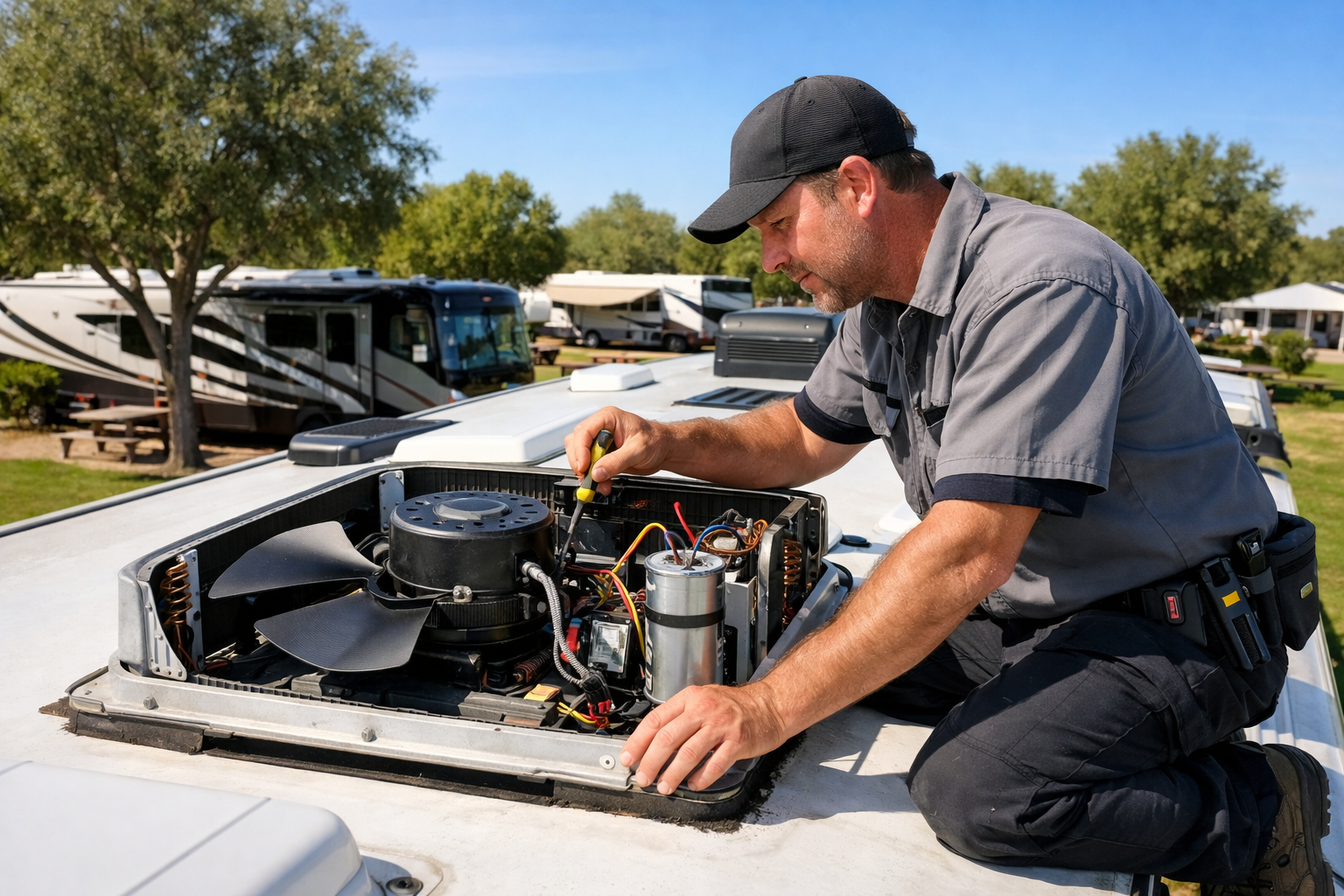

Climb to the roof and locate the AC shroud. Remove the cover panel (usually four to six fasteners). Photograph the entire capacitor assembly in place, including wire routing and terminal positions. Inspect the capacitor body for bulging, leaking, or burn marks. Check the fan motor for debris, corrosion, or visible damage. Note any burnt smell or discoloration around the motor windings.

Step 3: Test the capacitor and motor before removal

Using a dedicated capacitor tester or multimeter set to capacitance mode, measure the capacitor’s actual microfarad rating. A failed capacitor will read zero or wildly off-spec. Set your multimeter to resistance (ohms) and probe the motor windings between the two main terminals. A healthy motor reads 5–15 ohms; an open circuit (infinite resistance) or near-zero resistance indicates motor failure. Document all readings.

Step 4: Disconnect and remove the old capacitor

Using needle-nose pliers, gently remove the spade terminals from the capacitor posts. Do not yank or twist—rock them side-to-side. If terminals are corroded or stuck, spray with penetrating oil and wait five minutes. Unbolt the capacitor bracket from the mounting frame (usually one or two bolts). Lift the capacitor straight out. Inspect the mounting area for corrosion, debris, or loose fasteners on the motor frame.

Step 5: Inspect motor condition and decide on replacement

If your resistance test showed open or shorted windings, the motor must be replaced now—a new capacitor alone will not fix it and will fail prematurely under load. If the motor tested normal (5–15 ohms), proceed with capacitor replacement only. Visually check the motor shaft for play or grinding by gently rotating it by hand (with power off). Any grinding or excessive wobble means the motor bearing is failing and replacement is necessary.

Step 6: Install the new capacitor and reconnect terminals

Position the new 60/5 MFD capacitor in the bracket, ensuring it sits flat and does not contact the motor housing or any metal edges. Bolt it down snugly but do not over-tighten. Reconnect the spade terminals to the capacitor posts in the exact order you documented: typically one wire to each post, with a third wire (if present) to ground. Ensure terminals are fully seated and do not wiggle.

Step 7: Reassemble, restore power, and test operation

Replace the AC shroud cover and secure all fasteners. Descend from the roof. Return to the breaker panel and switch the AC breaker back on. Set the thermostat to cool and listen for the compressor to start within 30 seconds. The fan should run smoothly without grinding or rattling. After five minutes of operation, feel the condenser outlet air—it should be noticeably cold. If the compressor does not start or the fan does not run, kill power immediately and recheck terminal connections.

What works

• Sourcing the Dometic 3312195.000 gets you an exact mechanical and electrical match—bracket fit, terminal post size, and MFD rating all line up without adapter plates or workarounds.
• Replacement with the system de-energized and the old capacitor properly discharged restores normal motor amperage draw—the difference is audible the first time the compressor cycles after install.
• Spec-grade durability means you won’t watch this same capacitor fail again inside two seasons when the rig is parked in high-heat climates and the AC runs continuously.

What doesn’t

• Lead times on specialty HVAC components routinely stretch beyond stated shipping windows—order with a 5-7 day buffer and have an alternative cooling backup if you’re working in summer heat.
• This single replacement won’t restart a system where the motor has already seized or the relay contacts have already carbonized from thermal overload—you need full system diagnostics first to know what else needs attention.

I’ve swapped this capacitor on three different American Eagles expecting it to be the silver bullet, only to find the motor bearings already scored from months of running unbalanced—a humbling reminder that “failed capacitor” is a symptom, not always the root. If your AC is completely dead, grab Fits for Dometic 3312195.000 Air Conditioner RV AC Motor Capacitor 60/5 MFD, Heavy Duty Air Conditioner Capacitor Replacement, Compatible with Dometic 3312195000 RV Air Conditioner Models but test the motor draw with a clamp meter after installation.
