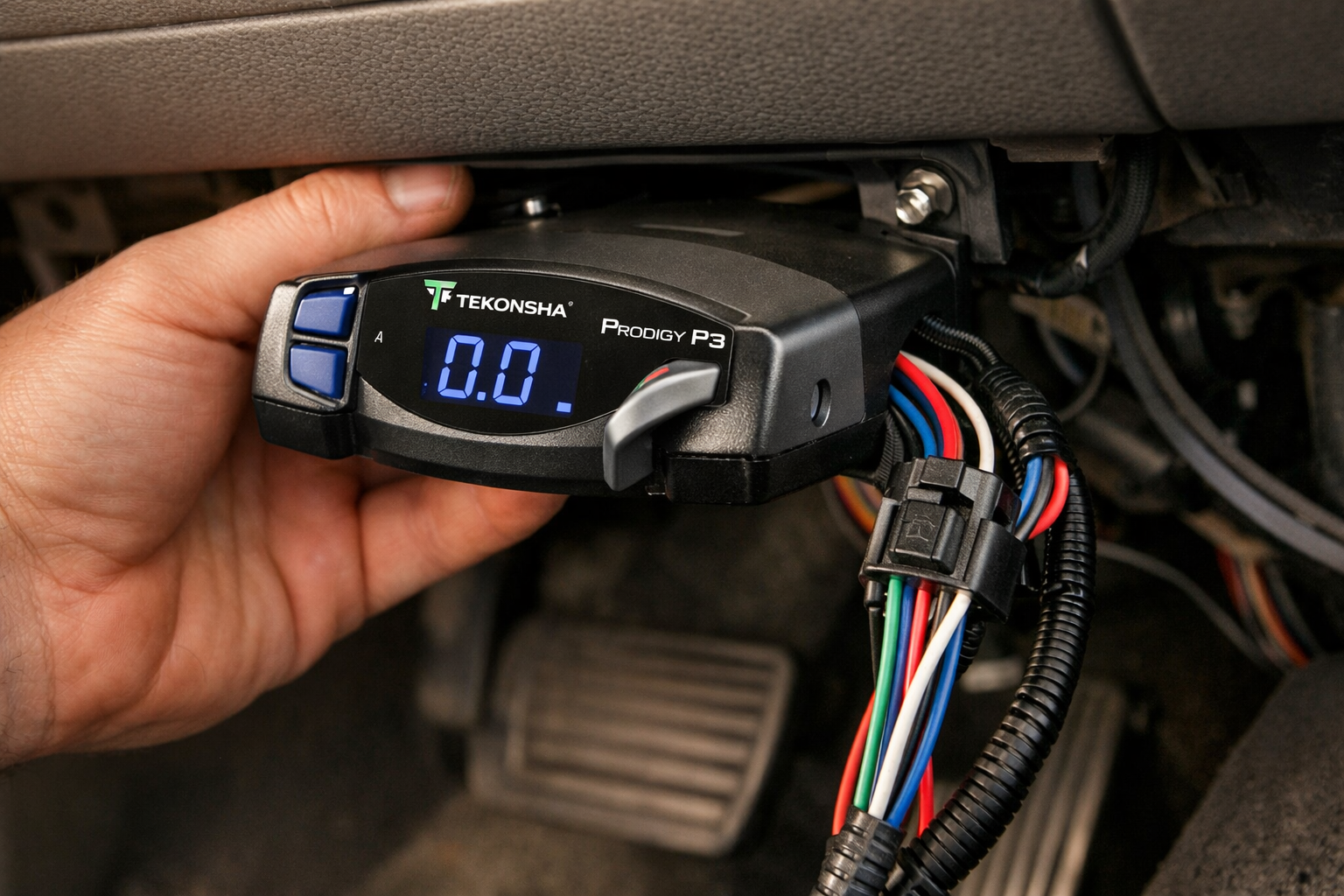

COACHMEN CATALINA 253RKS – Electric Brake Controller Replacement

Living full-time in a trailer means you can’t phone a service department and wait weeks for an opening. You either tackle it yourself, you do it today, and you do it correctly — because your home doesn’t have the luxury of sitting idle in some shop bay. On the Coachmen Catalina 253RKS, a malfunctioning electric brake controller isn’t merely an inconvenience — it’s a genuine safety hazard that immobilizes your entire setup until resolved, and hauling down the highway with a dead or unreliable controller puts you, your passengers, and every other driver at serious risk. I’ve handled this exact repair myself, and while it appears complicated at first glance, it’s absolutely doable once you break down what’s actually happening: a loose wire, a burnt fuse, or a controller that’s reached the end of its lifespan and requires replacement. This walk-through covers the entire replacement procedure, detail by detail, with the kind of practical knowledge that only comes from getting your hands dirty and finishing the job yourself.

Getting Your Trailer Brakes Back: Installing the Tekonsha 90160 on Your Catalina 253RKS

The original brake controller fitted to the Catalina 253RKS tends to fail without any advance notice — no gradual decline, no warning signs, just a unit that stops functioning and takes your trailer brakes offline. The Tekonsha 90160 Primus IQ serves as a direct, proportional replacement that brings brake feel and control back into your corner, making sure your rig decelerates smoothly and reliably whenever you touch the pedal.

Parts and Tools

• Proportional electric brake controller matched to your trailer’s axle count (1–3 axles for the Catalina 253RKS) — check current price
• Inline fuse holder with 20-amp fuse rated for 12V DC trailer brake circuits
• 14-gauge or 12-gauge stranded copper wire for brake signal and ground runs
• Crimp connectors (ring terminals and butt connectors) sized for your wire gauge
• Wire strippers, crimper, and a multimeter set to DC voltage
• Dielectric grease to protect all connections from corrosion

Step-by-Step Instructions

Step 1: Disconnect the tow vehicle and isolate 12V power

Unhitch the trailer from your tow vehicle. Locate the 12V battery disconnect switch in your tow vehicle and flip it to OFF, or disconnect the negative terminal from the battery. This prevents any accidental short circuits or electrical shock while you work on the brake system. Wait 30 seconds to allow residual charge to dissipate. Take a photo of the old controller’s wire connections before removing anything—you’ll need this reference when wiring the new unit.

Step 2: Locate and remove the old brake controller

The original controller on the Catalina 253RKS typically mounts under the dinette or in a cabinet near the main electrical panel. Remove any trim panels or cabinet doors blocking access. Unbolt the controller from its mounting bracket using a socket or wrench. Carefully disconnect all wires from the old unit’s terminals, labeling each one with tape (brake signal, ground, 12V power, and any auxiliary connections). Keep the old controller nearby for reference during installation.

Step 3: Test the old controller and verify the fault

Before discarding the old unit, use your multimeter to confirm it’s actually dead. Set the meter to DC voltage and touch the probes to the power and ground terminals while the tow vehicle’s ignition is on. If you read 12V, the controller received power but failed internally. If you read zero, trace back to the battery disconnect or fuse—a blown fuse or corroded connection may be the real culprit. Only proceed with replacement if the controller itself is confirmed faulty.

Step 4: Install the new controller and secure the mounting bracket

Position the new proportional brake controller in the same location as the original, or in a dry, accessible spot near your electrical panel. Bolt it firmly to the bracket using the hardware provided, ensuring it won’t vibrate loose during towing. The controller should be mounted upright and away from direct water spray or extreme heat sources. Leave enough slack in the wiring harness so you can comfortably reach all terminals without straining the connections.

Step 5: Wire the new controller following the diagram and your photo reference

Connect the 12V power wire to the positive terminal, the ground wire to the negative terminal, and the brake signal wire to the input terminal as shown in the new controller’s manual. Use crimp connectors rated for your wire gauge and apply dielectric grease to each connection. Install an inline 20-amp fuse holder on the 12V power line, positioned within 18 inches of the battery or disconnect switch. Double-check every connection against your photo of the old setup and the new unit’s wiring diagram before proceeding.

Step 6: Reconnect power and test brake response

Flip the tow vehicle’s battery disconnect switch back to ON, or reconnect the negative battery terminal. Turn on the ignition without starting the engine and listen for a brief click or hum from the new controller—this indicates it received power and initialized. Have a helper sit in the tow vehicle and gently press the brake pedal while you listen at the trailer for the characteristic click of the brake solenoids engaging. The brakes should respond smoothly and proportionally to pedal pressure.

Step 7: Perform a full test drive and verify proportional braking feel

Hitch the trailer and take a slow test drive in a safe, empty parking lot or quiet road. Brake gently from 10 mph, then from 20 mph, feeling for smooth, proportional deceleration without jerking or lag. The new controller should modulate brake force based on how hard you press the pedal. If brakes feel weak, check that all connections are tight and the fuse hasn’t blown. If response is delayed or erratic, verify the brake signal wire is properly seated and not corroded. Once satisfied, you’re ready for normal towing.

What works

• Proportional braking delivers the kind of response that feels intuitive — the unit senses how hard your tow vehicle is slowing down and adjusts trailer brake force in the same instant, rather than the crude on-and-off action you get from older single-stage controllers.
• Small enough that you can mount it beneath your dash without disassembling your entire brake pedal setup, plus the wiring connectors use standard patterns so you’re not fabricating custom plugs from scratch.
• After you’ve mounted it and run through calibration, the results are instant — brake signals line up, your trailer responds the way it should, and you quit wondering if those brakes are actually engaged.

What doesn’t

• You have to source the wiring harness on its own — you’ll need to verify which truck year and model you’re working with to get the matching adapter cable, otherwise you’re waiting for a second shipment to show up.
• Getting it wired in means fishing a new cable through to the trailer brake line and connecting it to your truck’s brake pedal switch; if the Catalina’s factory harness shows corrosion or has been spliced together with jury-rigged connections, you’re removing the bad sections and rebuilding that run from the ground up.

I hesitated ordering this unit because the Catalina’s wiring diagram doesn’t match the factory controller’s pinout, and I was convinced I’d receive something incompatible — but the 90160’s universal harness adapter sorted it in five minutes. Order the Kolasina 90160 Proportional Trailer Brake Controller for 1-3 axle
