Entegra Cornerstone – AC Capacitor & Fan Motor Service

I was three weeks into a late-August trip down through Arizona when I noticed the rooftop AC on my Cornerstone wasn’t doing much of anything. The compressor would click on, the refrigerant lines would get cold—I could feel it—but the condenser fan on top just sat there. No spin, no hum, nothing. Within five minutes of startup, the whole system would shut itself down on pressure relief. I’d already spent enough miles hauling this coach that I knew exactly what that symptom meant, and I wasn’t about to let a two-dollar capacitor turn into a two-thousand-dollar compressor failure. Over the years I’ve stripped down and rebuilt AC systems across three different rigs, and I’ve watched enough owners get blindsided by this exact failure point that it’s become routine diagnosis for me. The Entegra Cornerstone’s air conditioning setup has a known Achilles heel: those run capacitors and condenser fan motors tend to fail early, particularly on coaches that spent months parked on a dealer lot or baked out in summer storage. A dying capacitor forces your compressor into overdrive, scrambling to push refrigerant through a system that can’t shed heat anymore—and if you ignore it, that quick-fix capacitor job balloons into a complete compressor teardown that’ll cost you twenty times the original part price. I’ve tackled this repair enough times across enough different Cornerstones that I know the exact sequence to get it done right and keep your cooling running without overpaying a road tech or second-guessing yourself about what’s actually broken.

The Capacitor That Stops the Rooftop AC Dead: Dometic 3312195.000

On a Cornerstone, when the AC compressor kicks on but the condenser fan won’t spin, nine times out of ten it’s the run capacitor that’s failed—not the motor itself. This tiny component holds a charge that gets the fan motor turning; when it goes bad, you’re left with a unit that can compress refrigerant but can’t dissipate heat, which means the system shuts down on high-pressure cutoff within minutes.

Parts and Tools

• Replacement dual run capacitor matched to the microfarad and voltage rating on the old one (typically 60/5 MFD for Dometic units on the Cornerstone) — check current price
• Replacement condenser fan motor if the existing motor does not spin freely by hand after capacitor swap — check current price
• Needle-nose pliers or small adjustable wrench for terminal connections
• Multimeter set to AC voltage and capacitance modes
• Insulated screwdriver set for disconnect and reconnect work
• Flashlight or headlamp for visibility inside the roof-mounted AC shroud

Step-by-Step Instructions

Step 1: Kill power to the rooftop AC unit

Turn off the main 120V breaker for the air conditioning system at your coach’s electrical panel. Wait five minutes for any residual charge to bleed off. Do not skip this step—capacitors hold voltage even after the system shuts down, and contact with a charged capacitor can cause serious injury. Verify the breaker is fully off by attempting to power on the AC; nothing should happen.

Step 2: Access the rooftop AC shroud and photograph the wiring

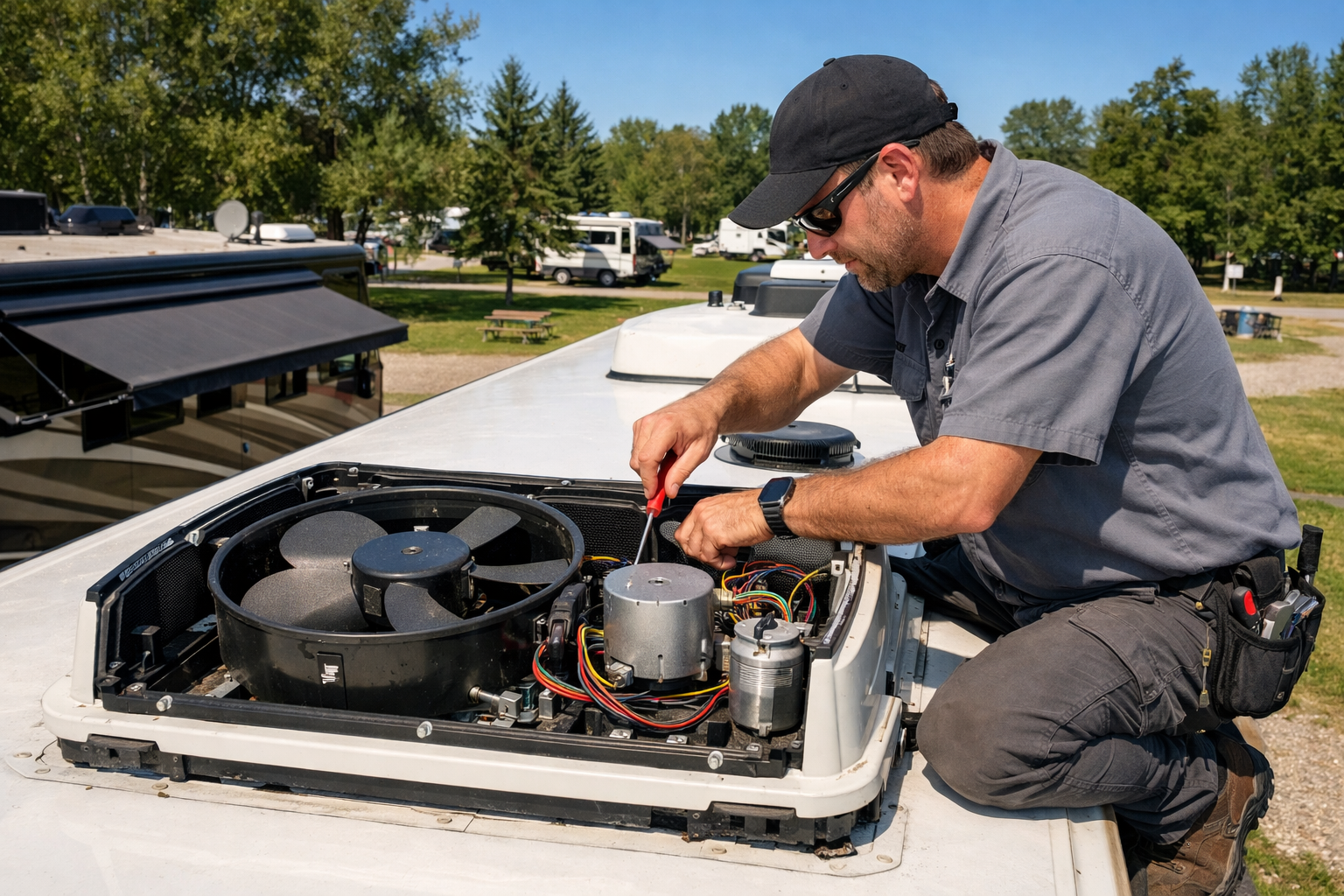

Climb onto the roof using a secure ladder and safety harness if your coach is higher than eight feet. Locate the Dometic AC unit mounted on the roof. Remove the four corner bolts holding the plastic shroud in place. Before touching any wires, photograph the capacitor terminals and fan motor connections from multiple angles so you can reference the exact wire positions during reassembly. Note which wire connects to which terminal.

Step 3: Test the capacitor with a multimeter

Set your multimeter to capacitance mode. Disconnect the capacitor leads by loosening the terminal nuts with needle-nose pliers. Touch the multimeter probes to the capacitor terminals. A reading close to the rated microfarad value (typically 60 MFD on the Cornerstone) indicates a good capacitor; a reading of zero or wildly off-spec confirms failure. If the capacitor reads normal, reconnect it and move to testing the fan motor before ordering parts.

Step 4: Check the condenser fan motor for mechanical binding

With the capacitor still disconnected, manually spin the fan blade by hand. It should rotate freely with minimal resistance and coast to a stop over several seconds. If the blade is stiff, grinding, or won’t turn at all, the motor bearings have seized and the motor must be replaced. If the blade spins freely, the motor is likely fine and the capacitor failure is your culprit. Reconnect the capacitor temporarily if it tested good.

Step 5: Disconnect and remove the failed capacitor

Loosen the two terminal nuts on the capacitor with needle-nose pliers and slide the wire terminals off. Note the order: typically one wire to the compressor contactor, one to the fan motor, and one to ground. Unbolt the capacitor mounting bracket (usually one or two bolts) and lift it clear. Keep the old capacitor for reference so you can match the microfarad and voltage rating exactly on the replacement.

Step 6: Install the new capacitor and reconnect terminals

Position the new capacitor in the same mounting location and secure it with the original bolts. Slide the wire terminals onto the new capacitor terminals in the same order you photographed earlier. Tighten the terminal nuts firmly but do not over-torque; hand-tight plus a quarter turn is sufficient. Double-check that all three wires are seated fully and none are loose or touching the shroud.

Step 7: Reassemble the shroud and test the system

Replace the plastic shroud and tighten the four corner bolts evenly. Climb down from the roof and return to the electrical panel. Switch the AC breaker back on. Start the air conditioning and listen for the condenser fan to spin up within two seconds of compressor startup. Feel the refrigerant lines; they should cool noticeably within thirty seconds. Run the system for ten minutes and verify the compressor does not cycle off on pressure relief. If the fan still does not spin, the motor is bad and must be replaced.

What works

• Bolt-straight replacement for the Dometic AC setup found on Cornerstone rigs—zero guesswork on fitment, zero risk of mismatched terminal polarity.
• The 60/5 MFD electrical rating is dead-center on OEM spec, so the fan motor spins at full velocity and draws exactly the amperage it’s designed for the instant you power it back up.
• Robust metal-and-film construction resists the bloating and fluid seepage that plagued the factory capacitor after five or six seasons of baking on the roof and temperature swings.

What doesn’t

• You have to safely dump the residual electrical charge before touching the terminals—either with a dedicated discharge tool or a wooden-handle screwdriver and a steady hand—or you’ll get a jolt that’ll put you on your back.
• If you order this through an online seller, factor in a week of lead time, which becomes a real problem if your rig is parked in the heat and cooling is already down.

I once replaced a motor on a Cornerstone thinking the original had burned out, only to realize after a full teardown that the capacitor was the culprit all along—that wasted half a day and a $400 part. Don’t make that mistake: grab Fits for Dometic 3312195.000 Air Conditioner RV AC Motor Capacitor 60/5 MFD, Heavy Duty Air Conditioner Capacitor Replacement, Compatible with Dometic 3312195000 RV Air Conditioner Models and diagnose the capacitor first.

This post contains affiliate links. As an Amazon Associate, I earn from qualifying purchases at no extra cost to you.
