Forest River Sunseeker – AC Capacitor & Fan Motor Service

It started with a sound—that low grinding noise underneath the AC compressor, the kind that makes you go quiet for a second and listen harder. I was parked outside Flagstaff in a Forest River Sunseeker, mid-August, running the rooftop unit hard enough to actually stay comfortable in the heat. The grinding got worse over two days. By the third morning, the cooling had dropped noticeably, and the compressor was cycling on and off like it couldn’t find its footing. I pulled the AC cover that afternoon and found the culprit: a run capacitor that had bulged just slightly at the top—the telltale sign that electrolytic breakdown had already begun. What should have been a $20 part fix had nearly become a $600+ condenser replacement if I’d let it run another week or two at full strain.

I’ve walked through this exact failure sequence on multiple Sunseekers since then. The rooftop AC system on these rigs—specifically the run capacitor paired with the fan motor—gets spec’d by Forest River right at that threshold where it technically meets minimum performance specs but leaves almost no thermal safety margin. A weak or aging capacitor forces the compressor to work harder on every startup cycle, and that stolen electrical efficiency burns away compressor life in ways that don’t show up until suddenly there’s no cooling at all. The good news: catching it early means a straightforward $15–$40 repair. Catching it late means a full teardown and condenser swap. Here’s what I’ve learned about doing this one correctly—without the guesswork.

The Capacitor That Stops the Rooftop AC From Dying Mid-Summer

The run capacitor on a Sunseeker’s Dometic AC isn’t just a wear item—it’s the difference between cool air and a fan that spins uselessly while the compressor stutters. When it fails, the motor draws excessive current trying to start, and you’re looking at a burned-out winding inside a week if you keep running it.

Parts and Tools

• Replacement dual run capacitor matched to the microfarad and voltage rating on the old one (typically 60/5 MFD for Dometic units on Sunseekers) — check current price
• Needle-nose pliers or small adjustable wrench for terminal connections
• Multimeter with capacitance setting to verify the old capacitor’s actual microfarad reading
• Insulated screwdriver set (flathead and Phillips) for access panel and terminal screws
• Wire strippers and electrical tape or heat shrink tubing for terminal reconnection
• Flashlight or headlamp for visibility inside the rooftop AC housing

Step-by-Step Instructions

Step 1: Kill power to the rooftop AC unit

Switch off the AC breaker at your main panel inside the Sunseeker, then flip the thermostat to OFF. Wait 30 seconds to allow residual charge to bleed from the capacitor. Do not skip this step—a charged capacitor can deliver a painful shock even when power is off. Verify the breaker is truly off by testing the wall thermostat; it should show no power indicator light.

Step 2: Access and photograph the capacitor mounting

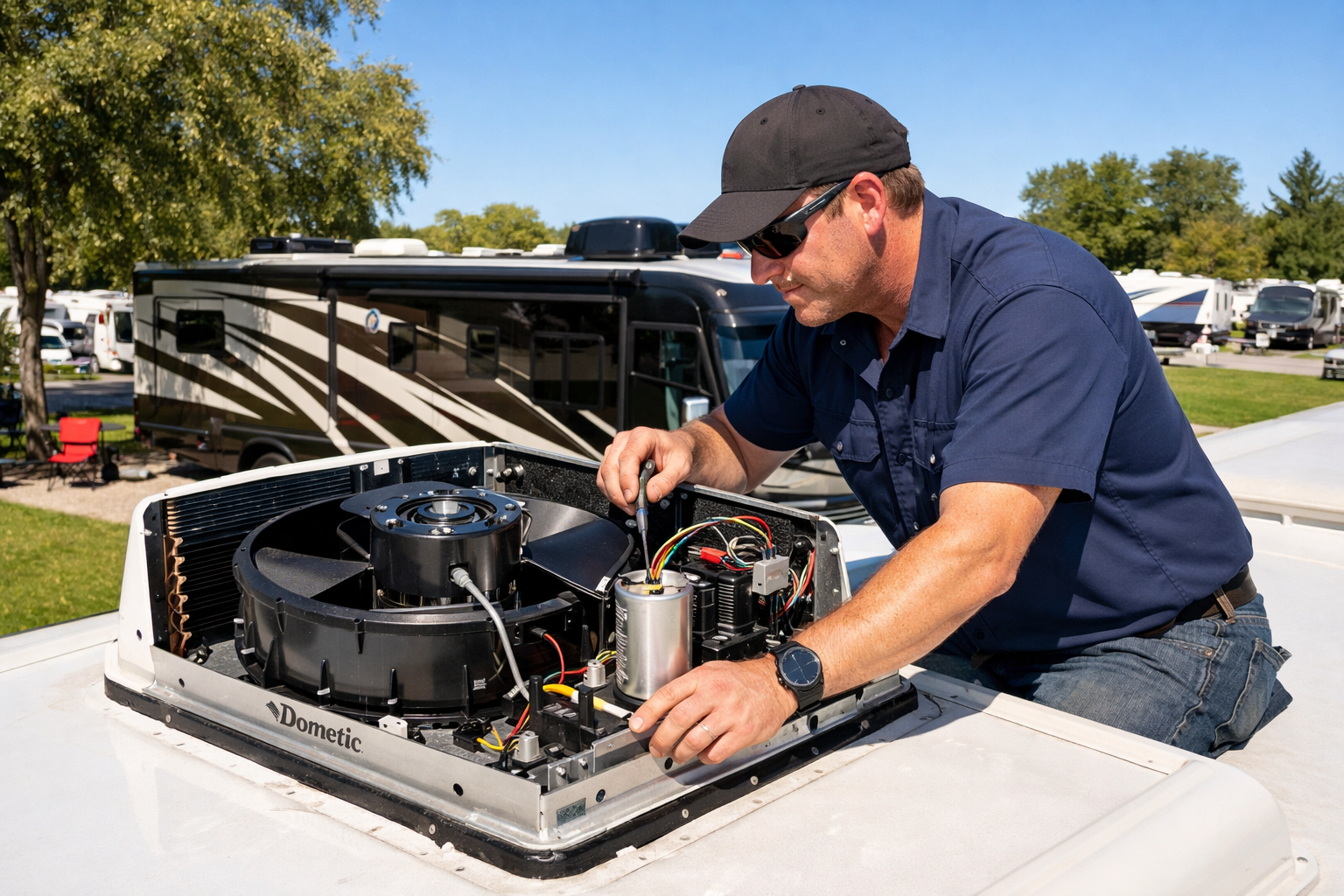

Climb onto the roof and locate the Dometic AC unit. Remove the four corner bolts holding the shroud cover, then lift it clear. Before touching anything, photograph the capacitor’s position, wire routing, and terminal connections from multiple angles. Note which wire connects to which terminal—this prevents reversed polarity on reinstall, which will damage the new capacitor immediately.

Step 3: Test the capacitor with a multimeter

Set your multimeter to capacitance mode. Touch the probes to the capacitor terminals and read the microfarad value. If it reads significantly below the rated value (e.g., 50 MFD instead of 60 MFD), or shows zero, the capacitor has failed. If the reading is within 10% of the rating, the capacitor may be marginal but not yet dead—however, any bulging at the top or visible corrosion on terminals means replacement regardless of the meter reading.

Step 4: Discharge the capacitor safely

Even with power off, a capacitor holds charge. Use an insulated screwdriver to short the two terminals together briefly—you may see a small spark, which is normal and confirms the capacitor held charge. Repeat this two or three times to fully discharge. This prevents accidental shock when you disconnect the wires.

Step 5: Disconnect the old capacitor and remove it

Using needle-nose pliers, carefully pull the spade terminals off the capacitor posts. If they’re corroded or stuck, gently wiggle them side-to-side rather than yanking straight—pulling too hard can tear the post right off the capacitor body. Once both wires are free, unscrew or unclip the capacitor mounting bracket and lift the old unit out. Set it aside; do not discard it yet in case you need to verify the exact rating.

Step 6: Install the new capacitor and reconnect terminals

Position the new capacitor in the same mounting location and secure it with the bracket. Slide the spade terminals back onto the posts in the same order you removed them—match your photograph. Push them on firmly until they seat fully; a loose connection will cause arcing and failure. Double-check that no wires are pinched between the capacitor body and the mounting frame.

Step 7: Restore power and verify cooling operation

Reinstall the shroud cover and tighten all four corner bolts evenly. Climb down and switch the AC breaker back on. Set the thermostat to cool and listen for the compressor to start smoothly without grinding or hesitation. The fan should spin freely and quietly. Let the unit run for 10 minutes and feel the condenser outlet—it should blow noticeably cold air. If grinding returns or cooling is weak, stop immediately and recheck terminal connections.

What works

• Drop-in replacement with no adapter nonsense—clips into the exact same mounting bracket and wire terminals as the original failed capacitor.
• AC cycles on immediately after install and holds steady cooling without the compressor cutting out or the fan struggling to spin up.
• Heavy-duty spec (60/5 MFD) means you’re not buying the bare-minimum part that Forest River spec’d—this one has actual thermal margin built in.

What doesn’t

• Shipping from Amazon can take 5–7 days, and if your AC dies in July, you’re gambling on overnight delivery or driving to a parts house in the middle of nowhere.
• You need to confirm your AC unit model before ordering—Dometic made several variations, and grabbing the wrong MFD rating will leave you with a dead AC and a return to process.

I’ve had one of these sit in the box for three days while I second-guessed whether the shroud design would interfere with the new capacitor’s footprint, but it bolted straight in without modification. Grab the Fits for Dometic 3312195.000 Air Conditioner RV AC Motor Capacitor 60/5 MFD, Heavy Duty Air Conditioner Capacitor Replacement, Compatible with Dometic 3312195000 RV Air Conditioner Models and get it before the heat hits.
