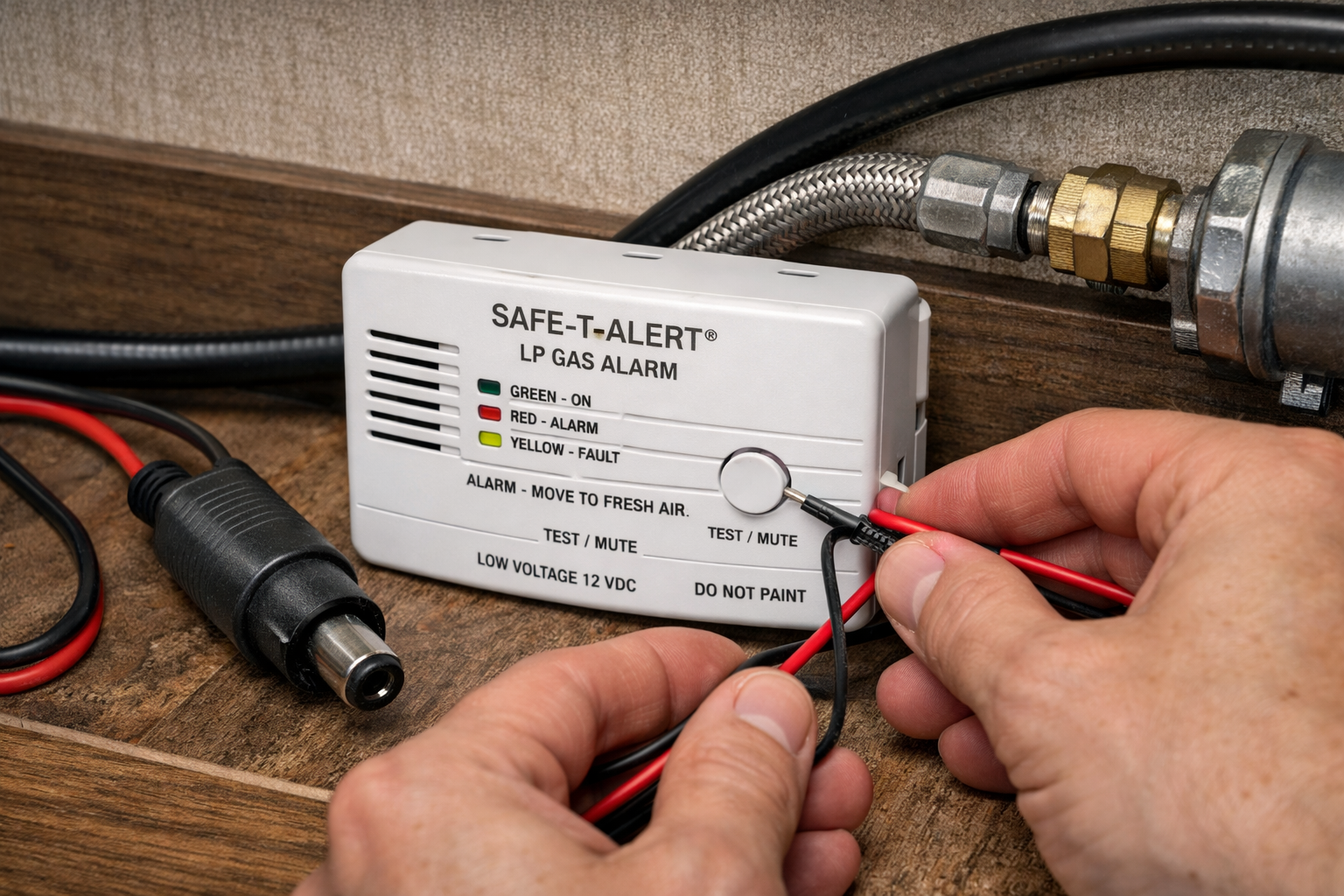

GRAND DESIGN IMAGINE 2500RL – LP Gas Detector Replacement

Most owners of the Grand Design Imagine 2500RL never replace their LP gas detector until it stops working—and by then, it’s usually too late to catch the problem before the alarm screams or, worse, stays silent when it shouldn’t. I get calls on weekends and holidays from people who’ve ignored a chirp for weeks, dismissed a single false alarm, or discovered the unit is completely dead only after trying to light the stove. An LP detector that’s malfunctioning or dead isn’t a minor annoyance; it’s the only line of defense between your family and an undetected propane leak inside an enclosed cabin. I’ve swapped out dozens of these on-site, and the pattern is always the same: owners catch it too late. This walkthrough shows you exactly how I replace the failed unit on a 2500RL, step by step, so you don’t end up stranded at a campground waiting for a mobile tech.

The Briidea Dual Alarm: What Actually Replaces a Failed Grand Design LP/CO Detector

The factory LP/CO detector in the Imagine 2500RL either quits without warning or chirps itself into irrelevance—and once you finally realize it’s gone, you’re operating with zero propane safety coverage. The Briidea dual alarm gives you the redundancy and alarm volume that actually matters when gas detection stops being theoretical.

Parts and Tools

• Replacement LP/CO detector unit rated for RV use with 100dB alarm output and separate LP/CO status indicators — check current price
• Needle-nose pliers or tweezers for removing small wire connectors and retaining clips
• Screwdriver set (Phillips and flathead) to access the detector mounting bracket and trim ring
• Wire strippers to prepare wire ends if connectors are damaged or corroded
• Flashlight or headlamp to see inside the cabinet where the detector is mounted
• Electrical tape to secure wire connections and prevent shorts after installation

Step-by-Step Instructions

Step 1: Turn off propane and isolate the detector circuit

Shut off the main propane valve at the tank or regulator outside the rig. Inside, locate the 12V breaker or fuse that powers the LP detector—usually labeled on the panel near the main electrical box—and switch it off or remove the fuse. Wait 30 seconds to allow any residual charge to dissipate. This prevents accidental alarm activation and protects you from electrical shock while working with the wiring.

Step 2: Locate and photograph the detector before removal

The factory detector in the 2500RL is typically mounted inside a cabinet near the galley or sleeping area, often behind a trim ring or flush-mounted to the wall. Take a clear photo of the wire connections and their positions before touching anything—note which wire goes to which terminal (usually red, black, and sometimes a ground wire). This photo is your reference when reconnecting the new unit and prevents reversed polarity or loose connections.

Step 3: Remove the trim ring and mounting bracket

Use a flathead screwdriver to gently pry the trim ring away from the wall, working from one corner around the perimeter. Once the ring is free, locate the two or three screws holding the detector body to the mounting bracket behind it. Remove these screws and carefully pull the detector forward, keeping tension on the wires so they don’t snap inside the wall cavity. Set the trim ring aside in a safe place.

Step 4: Disconnect the old detector and inspect the wiring

Using needle-nose pliers, gently pull each wire connector straight off the detector terminals. Do not twist or bend the connectors—they crimp easily and will need replacement if damaged. Examine the wire ends for corrosion, burn marks, or loose stranding. If the wires are corroded or the connectors are damaged, strip back ¼ inch of insulation and crimp on new connectors before installing the new detector. Discard the old detector safely.

Step 5: Install the new detector and reconnect wires

Position the new detector body into the mounting bracket, aligning the screw holes. Before tightening, reconnect the wires to their correct terminals using your reference photo: red to positive, black to negative, and any ground wire to the ground terminal. Push connectors firmly onto the terminals until they click or seat fully. Tighten the mounting screws snugly but do not over-tighten, as this can crack the detector housing. Wrap any exposed wire connections with electrical tape.

Step 6: Reinstall the trim ring and restore power

Align the trim ring with the mounting bracket and press it firmly into place around all edges until it sits flush against the wall. Snap or screw it down according to your model’s design. Return to the electrical panel and switch the breaker back on or reinstall the fuse. You should see the detector’s LED light up within a few seconds, indicating power is reaching the unit. If no light appears, turn power off immediately and recheck all wire connections.

Step 7: Test the detector and verify operation

Turn the main propane valve back on. Most detectors have a test button on the face—press and hold it for 3–5 seconds to trigger the alarm and confirm the 100dB siren works. The alarm should sound loud and clear. Release the button and the alarm should stop within 2 seconds. Check that the LP and CO status LEDs are lit or blinking normally. If the alarm does not sound, does not stop, or the LEDs remain dark, turn off propane and power immediately and recheck connections.

What works

• Separate LED status lights for LP and CO detection eliminate the guessing game—you see immediately which gas triggered the alarm, not a single ambiguous indicator.
• 100dB siren output cuts right through engine noise, generator rumble, and sleep—this detector will wake you and the entire campground if propane is present.
• Hardwired 12VDC operation means the detector stays armed as long as your auxiliary battery has voltage; you’re not gambling on internal batteries that go dead during an extended boondock stretch.

What doesn’t

• The mounting hole diameter and spacing don’t always align with the original detector—you may end up drilling new holes or installing a trim collar, which requires you to evaluate your wall finish first.
• 12VDC wiring demands solid connections; corroded terminals or undersized wire on the existing harness will cause nuisance faults or complete power loss—this isn’t a drop-in swap, you’re confirming the whole power circuit works.

I second-guessed this unit the first time I saw the separate LED indicators instead of a single alarm light—then realized that specificity is exactly why it beats the OEM detector by a mile. Order the Safe T Alert – Mini Dual LP/CO Alarm – Flush Mount Black – and test your 12V circuit before installation.
