Heartland Eddie Bauer Signature – AC Capacitor & Fan Motor Service

Most RV owners believe their air conditioner either works or it doesn’t—that it’s binary, simple, all-or-nothing. What they don’t realize is that the system can look like it’s running while the cooling half has already given up, and by the time they figure out what’s actually broken, a $30 component failure has cascaded into a compressor replacement that costs ten times as much. I see this pattern constantly on Heartland Eddie Bauer Signatures: the fan spins, the thermostat is set right, and nothing happens except an empty wallet a few days later. That capacitor sitting next to the contactor is almost always the culprit, and catching it before it takes the compressor down with it is the difference between a quick afternoon fix and a three-day wait for a service bay appointment in July heat. This repair is straightforward once you know what you’re looking at, so let’s walk through it step by step.

Swapping the Dual Run Capacitor on Your Eddie Bauer Signature’s Rooftop Unit

The dual run capacitor on Heartland Eddie Bauer Signatures is where compressor failures often begin—it dies in silence, and the symptoms feel like everything else is working until suddenly the compressor won’t respond to any command from the thermostat. The relay clicks, the fan blade turns, the control board lights up, but the refrigeration cycle never actually starts. Most owners chase ghosts in the electrical panel before realizing this single component has already quit.

Parts and Tools

• Replacement dual run capacitor matched to the microfarad and voltage rating on the old one (Dometic/Coleman-Mach units typically use 45+5 µF at 370V) — check current price
• Needle-nose pliers or small adjustable wrench for terminal removal
• Insulated screwdriver set (flathead and Phillips)
• Multimeter capable of measuring AC voltage and capacitance
• Wire strippers and electrical tape
• Marker or masking tape for labeling wire positions before disconnection

Step-by-Step Instructions

Step 1: Kill power to the rooftop unit at the breaker

Locate your main electrical panel and flip the breaker feeding the roof air conditioner to the OFF position. Wait 60 seconds, then use a multimeter set to AC voltage to confirm no power is present at the unit’s contactor terminals. This step is non-negotiable—capacitors store charge even after power is cut, so you must discharge it safely before touching anything.

Step 2: Access the rooftop unit and locate the capacitor

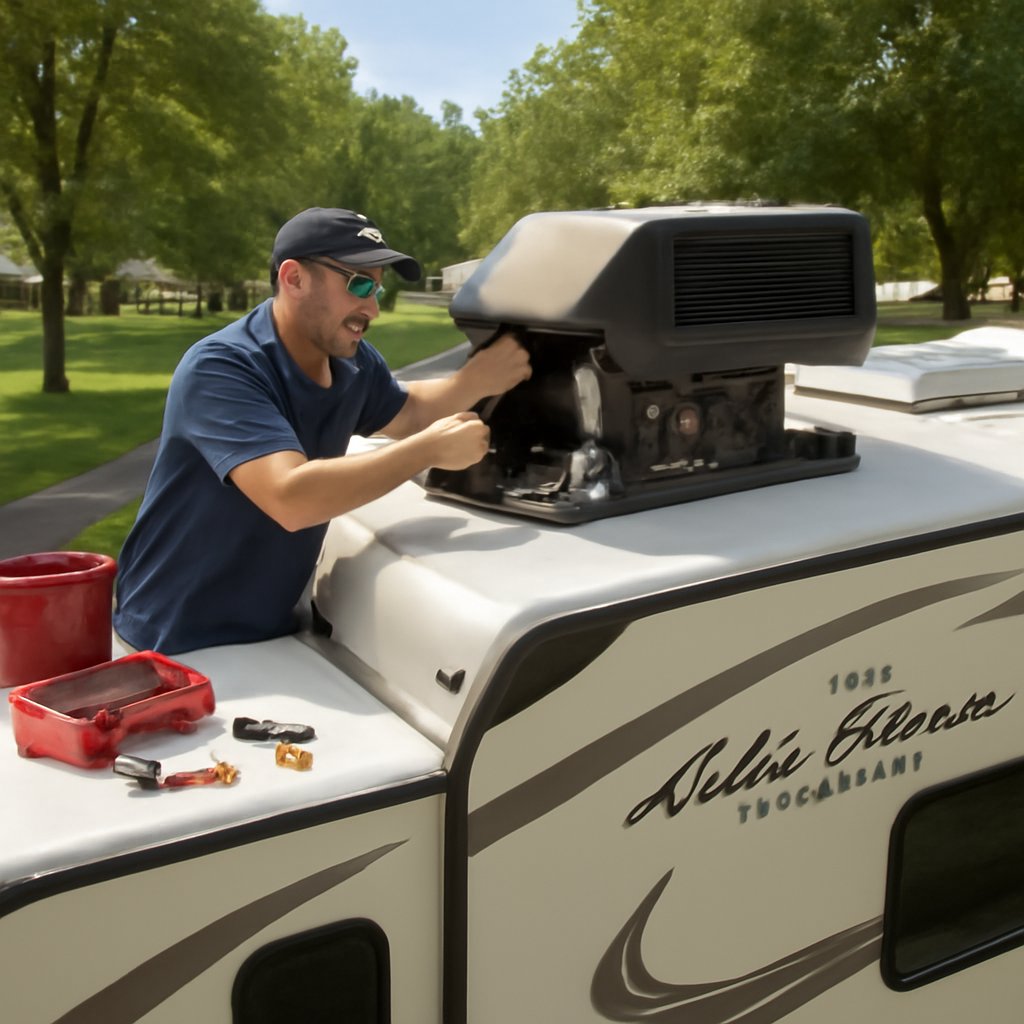

Climb onto the roof using a secure ladder and safety harness. Remove the shroud cover on top of your Eddie Bauer’s AC unit—usually four to six Phillips screws. The dual run capacitor sits directly beside the contactor relay, a cylindrical component roughly the size of a D battery. Photograph the wire positions before you touch anything, especially the terminal connections.

Step 3: Discharge the capacitor safely

Even with power off, the capacitor holds a charge. Use an insulated screwdriver to short the two terminals together briefly—touch the blade across both terminals simultaneously. You may see a small spark; this is normal and means the charge is gone. Do not skip this step; a capacitor discharge can cause injury.

Step 4: Disconnect and remove the old capacitor

Using needle-nose pliers, carefully remove the spade terminals from the capacitor posts. Label each wire with masking tape and marker so you know which wire goes where—typically one to the compressor contactor, one to the fan motor, and one to ground. Unbolt the capacitor mounting bracket and remove it completely from the unit.

Step 5: Verify the old capacitor’s rating before installation

Check the label on the old capacitor for microfarad (µF) and voltage ratings. Your replacement must match exactly—typically 45+5 µF at 370V for Eddie Bauer Signatures. If the new capacitor’s rating differs, do not install it; wrong ratings will damage the compressor or fan motor immediately.

Step 6: Install the new capacitor and reconnect terminals

Mount the new capacitor in the same bracket position as the old one. Reconnect the three spade terminals to their original posts using your labeled wires as a guide. Ensure each terminal is seated firmly and does not wiggle. Double-check that no wires are pinched or touching the metal shroud.

Step 7: Restore power and test the system

Climb down and flip the breaker back ON. Return to the thermostat and set it to cool mode. Listen for the relay to click once and the compressor to engage within 2–3 seconds. The fan should spin smoothly and cooled air should flow from the vents within 30 seconds. If the relay clicks repeatedly or the compressor does not start, turn the breaker off immediately and recheck your wire connections.

What works

• Compressor fires up immediately after installation — zero delay, the relay stops its confused clicking, and cooled air blows from the vents within moments of you flipping the breaker back on.
• Fits both Dometic and Coleman-Mach roof-mounted units that come standard on this chassis, so there’s no guessing which brand you have or hunting down the OEM spec sheet before you order.
• Installation is under ten minutes once you’ve shut off power at the breaker — two connectors to disconnect, no exotic tools required, and the part itself sits in plain sight where you can actually see the damage that killed it.

What doesn’t

• Third-party shipping timelines for this part are unpredictable — some orders land in two days, others take three weeks — so ordering it in the middle of a 98-degree heat wave with zero AC is a recipe for misery.
• The old capacitor’s spade connectors often grip the terminals tightly enough that straight pulling will tear the connector or even damage the contactor terminals — you have to flex it gently side-to-side while you pull, or you’ve just turned a $30 job into a $400 one.

I once replaced a capacitor on a signature model and the compressor still wouldn’t turn — turns out the original had taken the contactor with it, and I second-guessed the whole diagnosis until I checked voltage across the compressor terminals. RV AC dual run capacitor (Dometic/Coleman-Mach)
