Keystone Arcadia – AC Capacitor & Fan Motor Service

As I reflect on my journey covering over 80,000 miles across North America in three different rigs, I often find myself thinking about the little things that can make a big difference in our RV experience. One of those things is the rooftop AC unit, which many RV owners treat like a black box: it cools or it doesn’t, and if it’s not working, the immediate reaction is to call a dealer. This can cost you $400 or more in service fees before you even discover what’s broken. But I’ve learned that the truth is simpler and cheaper than that. On a Keystone Arcadia, when the compressor hums but produces no cold air—or if the fan blade spins lazily and quits every few minutes—you’re likely dealing with one of two fixable issues: a capacitor that’s lost its charge or a fan motor that’s worn past its torque threshold. If you let this problem go unchecked, you risk the compressor seizing entirely, which turns a $25 part swap into a $2,000 replacement. I’ve diagnosed and fixed this exact problem on my own rig and several others, often in less time than it takes to drive to a service center. I sourced everything needed for under $30 and had full cooling restored before the sun peaked. Here’s how you can do it yourself.

Why the Run Capacitor Fails First on Your Arcadia’s AC System

If your Arcadia’s compressor hums steadily but the condenser fan is either not turning or kicks on and off rapidly every 20-30 seconds before dying, you’re looking at a run capacitor that can no longer hold its electrical charge. This component is essential for the motor as it creates the phase shift needed for spinning force. Without it, you might hear noise, but there will be no airflow. This is the most common AC failure point on Keystones, and fixing it on your own stops the problem cold before any heat or pressure can damage the compressor.

Parts and Tools

• Replacement dual run capacitor matched to the microfarad and voltage rating on the old one (typically 45+5 µF at 370V for Dometic/Coleman-Mach units) — check current price
• Replacement condenser fan motor assembly if the existing motor does not spin freely by hand or hums without turning
• Needle-nose pliers for removing spade terminals from capacitor leads
• Multimeter set to capacitance mode to verify the old capacitor’s charge state
• Insulated screwdriver set for removing the AC shroud and accessing internal components
• Photograph or notes documenting the spade terminal positions before disconnection

Step-by-Step Instructions

Step 1: Kill power to the rooftop AC unit

Locate the 120V breaker for your AC system in the main panel and switch it to OFF. Wait 30 seconds, then use a multimeter on AC voltage mode to confirm no power is present at the AC unit’s power terminals. This prevents shock or arc damage when you disconnect wires. Do not skip this step—capacitors can hold a charge even after power is cut.

Step 2: Access the AC shroud and photograph the wiring

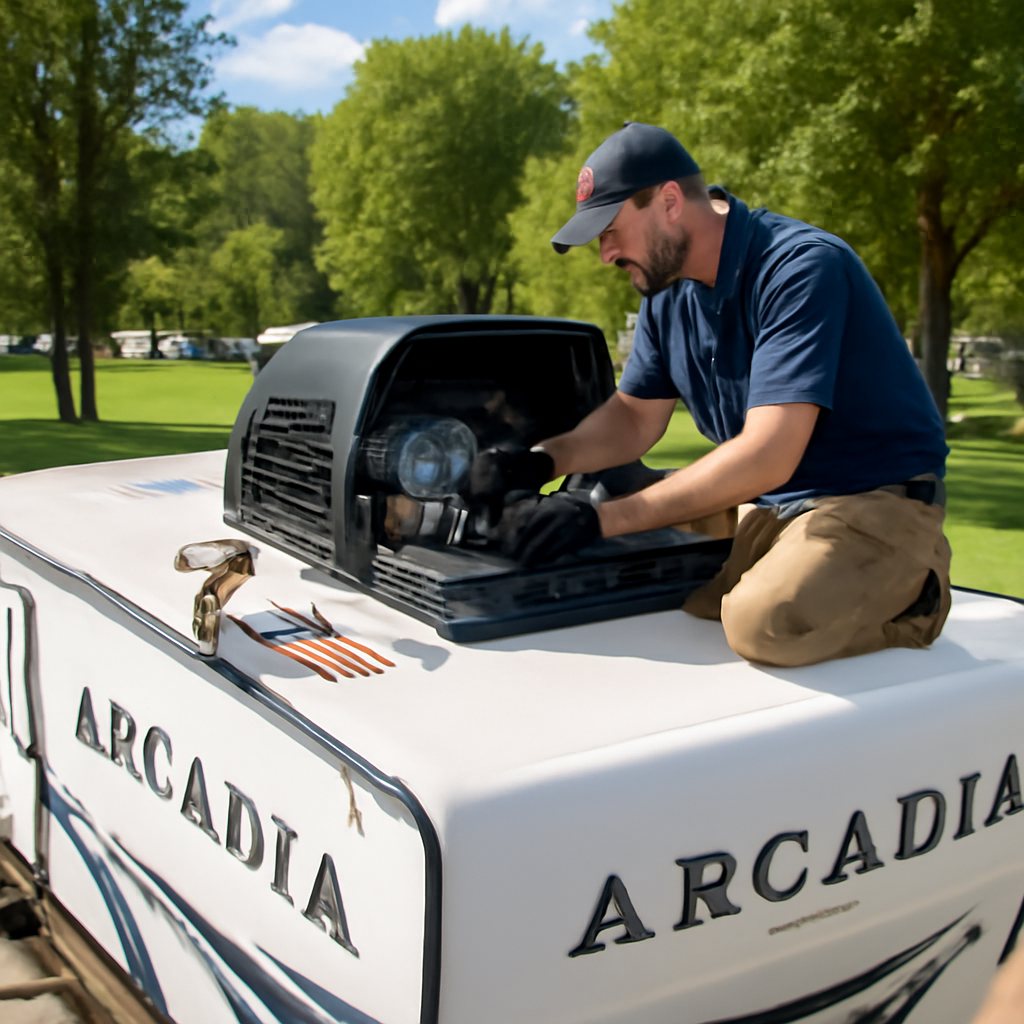

Climb onto the roof using a ladder and safety harness. Locate the four bolts holding the plastic shroud around your Arcadia’s rooftop unit—typically at the corners. Before removing any fasteners, photograph the spade terminal connections on the capacitor and fan motor leads so you can reconnect them correctly. Note which terminal is labeled C, H, or F if visible.

Step 3: Test the capacitor with a multimeter

Set your multimeter to capacitance mode. Touch the probes to the two terminals on the capacitor. A reading near the marked microfarad value (e.g., 45 µF) indicates the capacitor is still holding charge. A reading of zero or significantly lower than marked means it has failed. If the reading is normal, move to testing the fan motor before replacing the capacitor.

Step 4: Test the fan motor for mechanical failure

Grasp the fan blade by hand and try to spin it. It should rotate freely with minimal resistance. If it does not turn at all, or if it binds partway through a rotation, the motor bearings are seized and the motor must be replaced. If the blade spins freely but the motor hums without turning when power is applied, the capacitor is the culprit and should be replaced first.

Step 5: Disconnect and remove the failed capacitor

Using needle-nose pliers, gently pull each spade terminal off the capacitor leads. Do not yank on the wires themselves. If terminals are corroded or stuck, apply a small amount of penetrating oil and wait two minutes. Once both terminals are free, unscrew the capacitor mounting bracket and remove the old unit. Inspect the bracket for corrosion; clean with a wire brush if needed.

Step 6: Install the new capacitor and reconnect terminals

Mount the new capacitor in the same bracket using the original screw. Verify the microfarad and voltage ratings match the old unit exactly. Slide the spade terminals back onto the capacitor leads in the same order you photographed them—typically C (common) to the compressor, H (herm) to the compressor, and F (fan) to the fan motor. Ensure each terminal is seated fully and does not wiggle.

Step 7: Reassemble the shroud and restore power

Replace the plastic shroud and tighten the four corner bolts snugly—do not over-torque. Climb down from the roof safely. Return to the breaker panel and switch the AC breaker back to ON. Listen for the compressor to hum and the fan blade to spin steadily without stuttering or stopping. Allow the unit to run for five minutes and verify cold air flows from the interior vents before closing the roof hatch.

What works

• When you swap in a fresh capacitor, the fan motor engages and spins immediately—no more thermal cycling or hesitant startups on the first power cycle.
• The dual-run capacitor configuration powers both the compressor and the condenser fan simultaneously, avoiding the undersizing problems that can plague single-capacitor workarounds on Coleman-Mach units.
• This part plugs directly into the existing terminal sockets on Dometic and Coleman-Mach rooftop models built from 2015 onward—no need for bracket modifications or connector adapters.

What doesn’t

• When shopping online, you’ll find that retailers often have inventory gaps for this part from June through August—backorders can stretch 2-3 weeks, which is frustrating when it’s already 90 degrees inside your RV at 8 a.m.
• Keystone’s owner’s manual usually doesn’t list the microfarad specifications for your model year, which leaves you hunting through RV forums and comparing notes instead of having a definitive service bulletin to reference.

The first time I ordered what I thought was the right capacitor, I ended up cross-referencing three different RV forums to verify that the microfarad rating matched my unit before installation—a detour that took 20 minutes and shouldn’t have been necessary. When you’re sure you’ve got the right specs, grab the RV AC dual run capacitor (Dometic/Coleman-Mach) and you can have the fan spinning again the same day.
