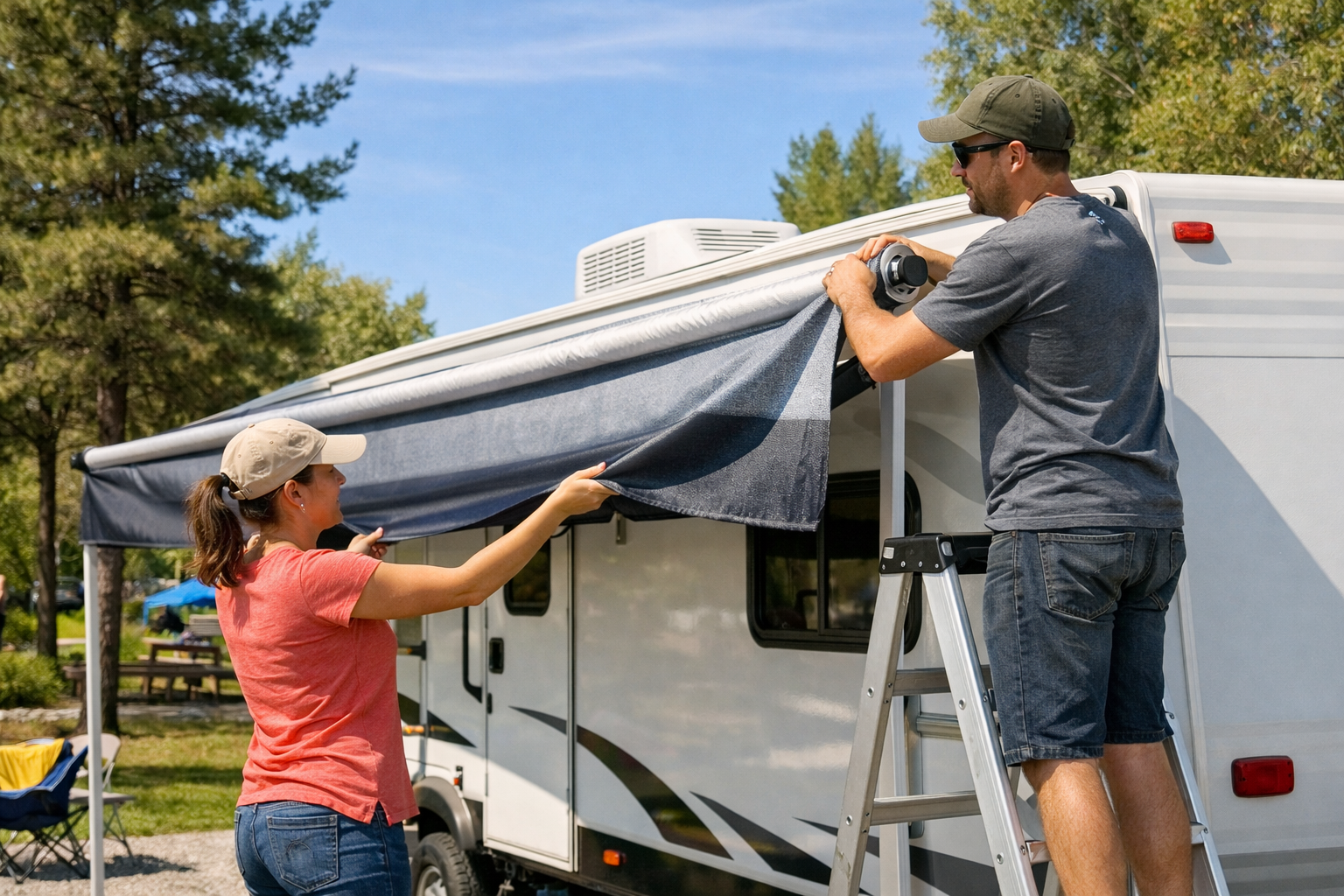

KEYSTONE PASSPORT 221BH – Awning Fabric & Motor Replacement

“Drew, my awning won’t roll back up—it’s just grinding—and the fabric’s basically Swiss cheese from the sun.” That’s the message I got last month from someone running a Passport 221BH out of Tucson. It’s not an isolated problem. Every RV manufacturer builds to a price, and on mid-range rigs like the Keystone line, the awning system is where that cost-cutting shows up fastest. The vinyl they use is thin and UV-vulnerable; the motor is undersized for the load; and by the time most used Passports change hands, you’re dealing with sun-rotted, torn fabric or a motor that grinds, hesitates, or quits mid-retraction. Let that motor seize up while the awning is partially extended and the arm loading will eventually tear the mounting bracket right through the sidewall—what started as a $300 repair becomes a $1,500 structural fix. I’ve replaced the fabric and motor on enough of these trailers to have the process down to a repeatable, painless routine—here’s exactly how I do it, part numbers and all.

Upgraded Awning Fabric: The Durable Option for the Keystone Passport 221BH

The original awning fabric that ships on the 221BH won’t hold up to even one full summer in the Southwest—it’s too light, too thin, and the UV degradation is aggressive. A genuine replacement built to heavier spec is the only move that stops you from doing this repair twice in five years.

Why this upgrade works

• 18.5oz heat-sealed vinyl has actual substance—you can’t look through it after six months in direct sun, unlike the thin factory material that turns brittle and tears at the slightest snag.
• Spline attachment is standard on the 15ft awning, so you’re not locked into buying a Keystone-branded part at premium pricing or waiting weeks for order fulfillment.
• The additional weight eliminates the flutter and flap that the OEM fabric exhibits in wind—it sits flat and doesn’t collect standing water in the low spots the way loose, thin material does.

Where this approach has limits

• A thicker, heavier fabric demands more from the motor—if yours is already worn and struggling, installation of premium fabric will force the problem into the open, and you may find yourself replacing the drive motor at the same time.
• The spline has to come out completely clean, and the new fabric has to seat evenly all the way across—any puckering or misalignment will be visible and will create low spots where rain pools.

I almost sent this back after the first test roll because the motor sounded like it was working harder than before, until I realized the original fabric was so shot that even a functional motor sounded weak pushing it out. Glamful Heavy-Duty 15ft RV Awning Replacement Fabric – 18.5oz Heat-Sealed Vinyl in Ombré Gray, UV-Resistant & Weatherproof, Universal Fit for RVs, Motorhomes, Campers & Travel Trailers

Parts and Tools

• Replacement awning fabric rated for 15 feet, 18.5oz heat-sealed vinyl minimum, UV-resistant — check current price
• RV awning motor assembly compatible with Keystone Passport 221BH (verify OEM part number before ordering)
• Spline roller tool or flathead screwdriver set for removing and reinstalling fabric spline
• Cordless drill with Phillips and square-drive bits for arm and motor mounting hardware
• Adjustable wrench or socket set (7/16″ and 1/2″ sockets typical for awning arm bolts)
• Silicone-based lubricant for roller tube and motor shaft after reassembly

Step-by-Step Instructions

Step 1: Disconnect power and document the setup

Turn off the 12V breaker controlling the awning motor at the main panel inside the trailer. Take photos of the motor connector, arm positions, and any visible wear on the fabric before you touch anything. This prevents confusion during reassembly and gives you a reference if the motor doesn’t operate the same way after installation. On the 221BH, the breaker is typically labeled ‘Awning’ and sits in the kitchen-area panel.

Step 2: Remove the old fabric from the roller tube

Fully retract the awning so the roller tube is tight against the trailer. Use a spline roller tool or flathead screwdriver to pry the rubber spline out of the groove running the length of the tube—work slowly from one end to avoid tearing the spline itself. Once the spline is free, the old fabric will slide off. Inspect the roller tube for dents, rust, or debris; clean it with a dry cloth. A damaged tube will cause the new fabric to bind.

Step 3: Unbolt the motor from the roller tube

Locate the motor mounting bolts where the motor housing connects to the roller tube end cap. On the 221BH, these are typically 7/16″ bolts accessed from underneath the awning arm. Support the roller tube with one hand or a jack before removing bolts—the tube will want to rotate if the motor is the only thing holding it. Disconnect the motor wiring harness and remove the motor completely. Photograph the wire positions if the connector is not clearly labeled.

Step 4: Install the new motor and test rotation

Bolt the replacement motor to the roller tube end cap using the same mounting holes, hand-tight first. Reconnect the motor wiring harness, matching the connector or wire colors to your photos. Turn the 12V breaker back on and test the motor in both extend and retract directions for 2–3 seconds each. Listen for grinding or hesitation. If the motor runs smoothly and quietly, turn it off and proceed. If it grinds or sounds labored, stop and verify the motor part number matches your trailer’s spec.

Step 5: Thread the new fabric onto the roller tube

Unroll the new 18.5oz fabric and align one end with the roller tube. Slide the fabric onto the tube, keeping it centered as you roll it on. The fabric should sit evenly in the groove without twists or bunching. Once fully seated, use the spline roller tool to press the rubber spline back into the groove, working from one end to the other in steady, even strokes. The spline locks the fabric in place and prevents it from sliding during operation.

Step 6: Extend and retract the awning fully twice

With the 12V breaker on, fully extend the awning using the switch or remote. Watch for fabric wrinkles, uneven tracking, or the fabric pulling to one side. Retract it completely. Repeat the cycle a second time. The fabric should roll smoothly without binding, and the arms should extend and retract without hesitation. If the fabric bunches or the motor hesitates, stop and check that the fabric is centered on the tube and the spline is fully seated.

Step 7: Tighten all hardware and lubricate

Once operation is confirmed, tighten all motor mounting bolts to snug (no need to over-torque; these are aluminum end caps). Apply a light coat of silicone-based lubricant to the roller tube where it enters the motor housing and to the motor shaft. Wipe away excess. This reduces friction and extends motor life. Leave the awning fully retracted for 24 hours before extended use to allow the spline to settle.
