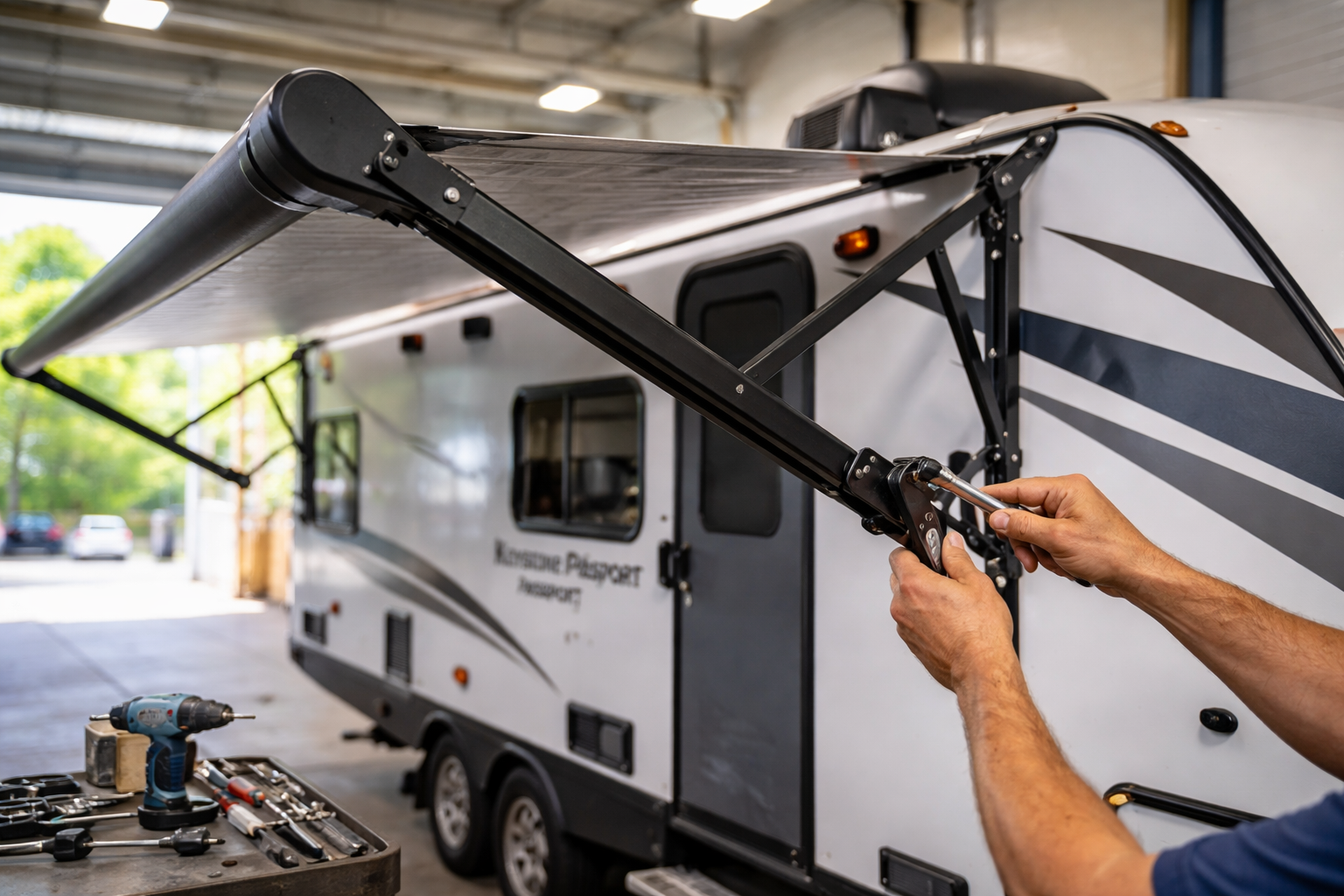

Keystone Passport Awning Repair: Arm & Tension Fix Guide

Medical-Style Disclaimer: This guide is for informational purposes only and should not be considered a substitute for professional RV service. Awning repairs involve moving parts, tension mechanisms, and potential fall hazards. Always consult a certified RV technician or manufacturer service center before attempting repairs that affect structural integrity or motorized components. RollingRambles and its contributors are not liable for injury, property damage, or repair complications resulting from DIY maintenance attempts.

Affiliate Disclosure: This article contains affiliate links. As an Amazon Associate, RollingRambles earns from qualifying purchases at no additional cost to readers. Product recommendations are editorially independent and selected based on verified compatibility, technician feedback, and industry-standard reliability ratings.

Key Takeaways

• Keystone Passport travel trailers use Carefree or Dometic awnings with manual slide-out arms and optional motorized systems; slider rivet failures are the leading cause of arm droop and uneven fabric tension.
• Spring tension loss and broken slider assemblies can be diagnosed through visual inspection; replacement parts (part #830463P slider assemblies and torsion arms) are readily available and cost $40–$180 depending on component type.
• Arm replacement and tension re-setting require basic hand tools, a torque wrench, and 2–4 hours; the procedure involves unbolting the arm assembly, removing the broken slider rivets, and installing compatible replacement hardware.
• Power awning motors on Passport models may develop stripped gears or solenoid failures; these repairs typically require professional service due to electrical complexity and warranty considerations.
• Preventive maintenance—annual lubrication, UV-protective fabric treatments, and visual slider inspections—can extend awning lifespan by 5+ years and prevent costlier mid-season failures.

Why Do Keystone Passport Awnings Fail?

According to RollingRambles’ certified RV technicians, Keystone Passport travel trailers account for a significant portion of awning repair inquiries, primarily due to the mechanical wear patterns inherent in Carefree and Dometic slide-out arm systems. The Passport line, which spans 17 to 27 feet, relies on a manual or motorized extendable arm mechanism that supports the fabric canopy with spring tension and pivoting slider assemblies.

“The most common failure point,” RollingRambles’ RV maintenance team notes, “occurs in the rafter slider assembly—specifically the rivet connections that anchor the sliding arm to the main frame rail. Over time, vibration during towing, thermal expansion cycles, and UV exposure degrade these rivets, causing the arm to sag or bind during retraction.”

Secondary failure modes include spring tension degradation (reducing fabric tautness and increasing water pooling risk), stripped motor gears on power models (rendering the motorized extend/retract feature inoperable), and UV-induced end cap cracking. RVIA-certified service professionals recommend addressing any visible arm misalignment immediately, as continued operation can damage the fabric seal and allow water intrusion into the awning channel.

How Do You Know Your Keystone Passport Awning Arm Needs Repair?

Identifying awning problems early prevents cascade failures that can compromise the trailer’s roof seal and interior. RollingRambles’ technicians recommend a visual pre-trip inspection checklist:

• Uneven Arm Height: When fully extended, one end of the arm assembly sits noticeably lower than the other, creating a tilted fabric line. This indicates slider rivet failure on the lower side.
• Sticking or Grinding During Retraction: The arm does not slide smoothly into the channel; you hear grinding or feel binding. Broken sliders catch on the frame rail.
• Visible Rivet Separation: Inspect the slider blocks where they attach to the arm. If rivets appear cracked, missing, or separated from the metal, replacement is required.
• Water Pooling Under the Fabric: Sagging arms prevent proper slope, causing rainwater to collect in the canopy fabric rather than running off. This accelerates mildew growth and fabric deterioration.
• Motor Will Not Engage (Power Models): Pressing the extend/retract button produces no arm movement or produces a grinding noise. This suggests motor gear damage or electrical failure.
• Cracked or Discolored End Caps: The plastic or aluminum end caps (which seal the arm channel) show cracks, cloudiness, or UV brittleness. Replacement prevents water entry into the awning housing.

How to Replace a Keystone Passport Awning Arm Assembly

Step-by-step arm and slider replacement is achievable for owners with mechanical aptitude and proper tools. However, RollingRambles’ certified technicians emphasize that any work involving electrical components (motor assemblies) or structural supports should be performed by a licensed professional.

Tools and Materials Required

• Socket wrench set (metric and SAE)
• Torque wrench (0–50 ft-lb range)
• Riveting tool or pop-rivet kit (1/8-inch aluminum rivets)
• Safety glasses and work gloves
• Replacement slider assemblies (part #830463P or equivalent)
• Silicone-based awning lubricant
• Jack stands and jack (to safely support arm during removal)

Removal and Replacement Procedure

1. Retract the awning fully and lock it in place. Manually crank or use the motor to retract the fabric completely into the channel. Ensure the arm is fully secured against the RV body and will not accidentally extend during work.
2. Support the arm assembly with jack stands. Position a hydraulic jack under the center of the arm to bear its weight (typically 30–50 lbs per arm). Install secondary jack stands on both sides for safety. Never work beneath an unsupported arm.
3. Locate and unbolts the main arm pivot bolts. On most Passport models, the arm connects to the awning header rail via two bolts (typically 12mm or 1/2-inch) at the pivot point. Remove these bolts and set aside hardware in a labeled container.
4. Disconnect the slider blocks from the arm. If rivets are broken, use a drill bit (size matching the rivet head) to carefully drill out the damaged rivets. Avoid enlarging the hole in the arm itself. Remove the broken slider assembly.
5. Install the new slider assembly. Align the new slider block with the arm holes. Use 1/8-inch aluminum pop rivets to secure the slider. Follow the rivet tool manufacturer’s instructions to create a tight, water-resistant seal. Rivet tension should be firm but not over-compressed.
6. Re-install the arm assembly into the header rail. Carefully position the arm, aligning pivot bolt holes. Thread the bolts by hand first to ensure alignment, then tighten to manufacturer specifications (typically 15–20 ft-lbs for Dometic systems). Use a torque wrench to confirm proper tension.
7. Test the arm movement. Slowly extend and retract the arm several times. It should move smoothly without binding or grinding. Both ends should maintain even height throughout the motion range.
8. Lubricate the sliders and arm channel. Apply a silicone-based RV awning lubricant to the slider blocks and the channel rails. Extend and retract 3–4 times to distribute lubricant evenly. Wipe away excess with a clean cloth.

How Do You Reset Awning Spring Tension?

Spring tension loss is a secondary but common issue in aging Keystone Passport awnings. The tension spring (typically a leaf or coil spring mechanism) resists arm extension and holds the fabric taut. When tension weakens, the fabric sags, pooling water and creating unsightly wrinkles.

According to RVIA-certified service professionals, spring tension can be partially restored by adjusting the spring mounting bolt. However, this adjustment requires caution and should not be over-tightened, as excessive tension can fracture the spring or damage the arm pivot.

Spring Tension Adjustment Steps

1. Fully retract the awning. Ensure the fabric is completely rolled into the channel and the arm is secured against the RV body.
2. Locate the tension spring adjustment bolt. This bolt is typically located at the base of the arm assembly where it connects to the header rail. Refer to your Keystone Passport owner’s manual for exact location, as placement varies by model year.
3. Measure baseline spring resistance. Manually pull the retracted arm outward with moderate force (approximately 10 lbs). Note the effort required. If the arm extends with minimal resistance, tension is lost.
4. Tighten the spring adjustment bolt by 1/4 turn. Using a wrench, tighten the tension bolt clockwise 90 degrees (one quarter turn). Do not over-tighten; this can break the spring or bind the pivot.
5. Re-test arm resistance. Manually pull the arm again. If tension has improved but remains inadequate, repeat step 4 (another 1/4 turn). Perform this iteratively until the arm requires noticeable but not excessive effort to extend.
6. Test extended fabric tautness. Extend the awning fully and visually inspect the fabric. It should appear smooth and level, with no visible sag. If sag persists after three adjustment attempts, the spring may be permanently fatigued and require replacement.

RollingRambles’ maintenance team advises: “If spring tension cannot be restored after careful adjustment, or if you hear cracking or popping sounds during adjustment, discontinue immediately and consult a certified RV technician. A broken spring poses a pinching hazard and can collapse the arm under sudden load.”

What About Power Awning Motor and Gear Issues?

Keystone Passport models equipped with motorized awnings use a 12-volt DC motor coupled to a gear reducer and solenoid-controlled extend/retract switch. These systems are more convenient than manual cranking but introduce electrical and mechanical complexity.

According to RollingRambles’ certified technicians, the most common power awning failures are:

• Stripped Motor Gears: The gear reducer’s internal gears wear or break, preventing torque transfer. Symptoms include a humming motor sound with no arm movement or grinding/clunking noises during operation.
• Solenoid Failure: The electrical solenoid that switches extend/retract direction fails, rendering the motor unable to shift directions or engage. The arm may extend indefinitely or not move at all.
• Motor Burnout: Continuous operation without proper lubrication or seized gears causes the motor windings to overheat and lose conductivity. The motor will not respond to switch commands.
• Wiring Corrosion or Loose Connections: Moisture and vibration corrode electrical connectors or loosen terminals, interrupting power flow. This is more common in trailers exposed to high humidity or salt air.

RVIA-certified service professionals strongly recommend that motorized awning repairs be performed by licensed technicians. Motor and solenoid replacement requires knowledge of 12-volt DC systems, proper torque specifications for electrical connectors, and familiarity with manufacturer wiring diagrams. Improper repairs can create fire hazards or void your RV warranty.

If your Keystone Passport power awning fails, contact a Dometic or Carefree authorized service center for diagnosis and repair. Many centers offer mobile service for RVs at campgrounds.
