NUCAMP T@B 400 – Roof Vent Fan Replacement

I’ve got a Maxxair motor sitting on my workbench right now that I pulled from a T@B 400 last summer—the shaft is frozen solid, the windings smell scorched, and the bearing seals are completely shot. That fan spent seven years cycling on and off in desert heat, sucking dust through those intake louvers, and it finally gave up at midnight on a 103-degree night in Arizona. What that dead motor proves is that roof vent fans on the T@B 400 aren’t a “someday” repair—they’re a *when*, not an *if*. The Maxxair unit that ships stock on these trailers burns out because thermal cycling and dust accumulation team up to cook the motor windings from the inside. The good news is you don’t need to pay a shop $280 to $350 in labor to swap it, and you don’t need special tools or a dealer appointment. This guide walks you through the whole job using gear you probably already have, and I’ve done it myself on a tight campsite in under an hour.

Why the T@B 400 Roof Vent Fan Fails

The factory motor gets cooked by a one-two punch: dust from desert or dry-climate air clogs the intake louvers and blankets the windings, trapping heat that should be venting out. At the same time, your thermostat is hammering the motor on and off as it hunts for the right temperature, and that constant cycling wears the bearings down fast. You’re typically looking at somewhere between three and seven years of service before the first motor quits, depending on where you camp and how hard you’re pushing it during peak heat.

The silver lining is that failure doesn’t happen without warning. You’ll hear squealing or grinding before the motor seizes, or it’ll take longer and longer to spin up before finally refusing to start. That advance notice window gives you time to grab a replacement and install it on your own schedule instead of being trapped in a sweat lodge at some boondocking spot in mid-July.

Sourcing a Motor That Bolts Right In Without Modifications

The line between a quick 30-minute job and a half-day wrestling match with adapters and drill holes comes down to picking a motor that fits the existing Maxxair flange as-is—no custom brackets, no new holes, no fasteners hanging crooked in the breeze. Hit that mark and you’re done before lunch. Miss it and you’re fabricating, drilling, and crossing your fingers that your roof doesn’t start leaking when the next storm rolls through.

Direct-fit options that work

• Flange bolts align with the existing holes on your first try—zero cutting or drilling required
• Spins quietly and generates solid airflow without the noise or grinding that kept you awake before
• Your 12V circuit is already installed and waiting—just wire the terminals and button everything up

What creates headaches instead

• Standard drop-ship inventory can take two to three weeks to arrive; being without ventilation while you wait feels endless
• If the roof housing is corroded or the flange is cracked, the job balloons into a full roof repair with cutting, patching, and crossed fingers until it rains

Tools and Materials You’ll Need

Keep it simple. A Phillips screwdriver (or a drill running a Phillips bit), a basic socket set, and a ladder or stable platform to reach the roof safely—that’s the core. Bring a flashlight because even in daylight that motor housing throws a shadow across the mounting bolts. Grab a small cup or ziplock bag to capture the four fasteners so they don’t tumble off the roof into the weeds. A soft brush or an old toothbrush dusts off the flange before the new motor sits down; not required, but it prevents debris from settling under the gasket and creating leak points down the road.

Step-by-Step Replacement Process

Step 1: Kill power to the vent. Flip the breaker or disconnect the battery. Twelve volts can arc and weld metal to metal if you’re careless. Spend 20 seconds and do it right.

Step 2: Access the motor from the interior. Most T@B 400 owners reach this from a bed or a step stool—roof access not required. Unbolt the trim ring or escutcheon (usually three or four fasteners) and shift it aside. This opens your workspace and keeps the new housing from catching on trim.

Step 3: Drop the old motor out. Four bolts anchor the motor to the roof flange. As you undo the last one, grip the motor and ease it down—it will fall if you let it, and you don’t want it on your head. Set it gently on a rag to contain the dust cloud.

Step 4: Disconnect the power cables. Two wires splice into the motor terminals. Shoot a quick photo showing which wire connects where (look for + and − labels). This 10-second snapshot keeps you from reversing polarity when the new motor gets wired in.

Step 5: Mount and bolt the new motor in place. Feed the new motor up through the opening, line up all four holes with the flange, and thread all four bolts by hand to verify smooth engagement. Then tighten in a criss-cross pattern—opposite corners first, then the other pair—so the gasket seats evenly all the way around. Tighten firmly but don’t crank it; crushing the seal doesn’t make it better.

Step 6: Reconnect the wires. Use your photo as reference. Positive wire to positive terminal, negative to negative. Double-check before flipping the breaker back on.

Step 7: Test the motor and finish up. Restore power and run the vent. It should spin smoothly and quietly with no grinding or hesitation. If it stutters, stops, or makes noise, kill the breaker and check your wiring again. Once it’s running clean, bolt the trim ring back on and call it done.

Common Mistakes to Avoid

The biggest trap is ordering a generic “universal” roof vent motor only to find out it doesn’t thread onto the Maxxair flange without brackets or drilling fresh holes. That misstep launches you into doubt and a return-shipping nightmare. Stick with a motor made to bolt straight onto your existing flange and you’ll skip that entirely. The second mistake is glossing over flange prep—dust left under the gasket eventually migrates into the ceiling structure and kicks off moisture and mold later. A quick wipe with a dry cloth takes 30 seconds and buys you years of trouble-free operation.

The Replacement Motor That Works

I second-guessed the shaft diameter on the first one I ordered—the Maxxair spec sheet wasn’t crystal clear—but it dropped straight in and spun up without a hiccup.

Parts and Tools

• Replacement Maxxair roof vent fan motor assembly matched to your T@B 400 specification
• Maxxair FANMATE Fan/Vent Cover with EZ Clip for dust and weather protection — check current price
• Silicone-based sealant rated for RV roof use (Dicor or equivalent)
• Stainless steel fasteners matching the original mounting bolt size and thread pitch
• Gasket material or pre-cut gasket for the vent opening flange
• Wire connectors or solder and heat shrink tubing to match your existing 12V DC wiring

Step-by-Step Instructions

Step 1: Shut off power and photograph the wiring

Turn off the 12V DC breaker or disconnect the battery to kill power to the roof vent circuit. Before touching anything, photograph the wire connections at the motor terminals—note which wire connects to positive and negative, and the color of each wire. This prevents reversed polarity when you reconnect. Take a wide shot of the entire roof assembly so you remember the orientation and any cable routing.

Step 2: Remove the interior trim ring and disconnect wires

From inside the trailer, unscrew or unclip the interior trim ring around the vent opening. Disconnect the 12V wires from the old motor terminals. If they’re soldered, carefully desolder them; if they’re crimped connectors, cut and strip the wires. Set the interior trim ring aside in a safe place—don’t lose the fasteners.

Step 3: Access the roof and unbolt the old motor assembly

Climb onto the T@B 400 roof using a ladder and secure footing. Locate the four mounting bolts around the motor housing perimeter. Unbolt them completely and set them aside. Gently lift the old motor assembly straight up and away from the roof opening. Inspect the rubber gasket underneath—if it’s cracked, hardened, or stuck to the roof, carefully peel it away and discard it.

Step 4: Clean the roof opening and install new gasket

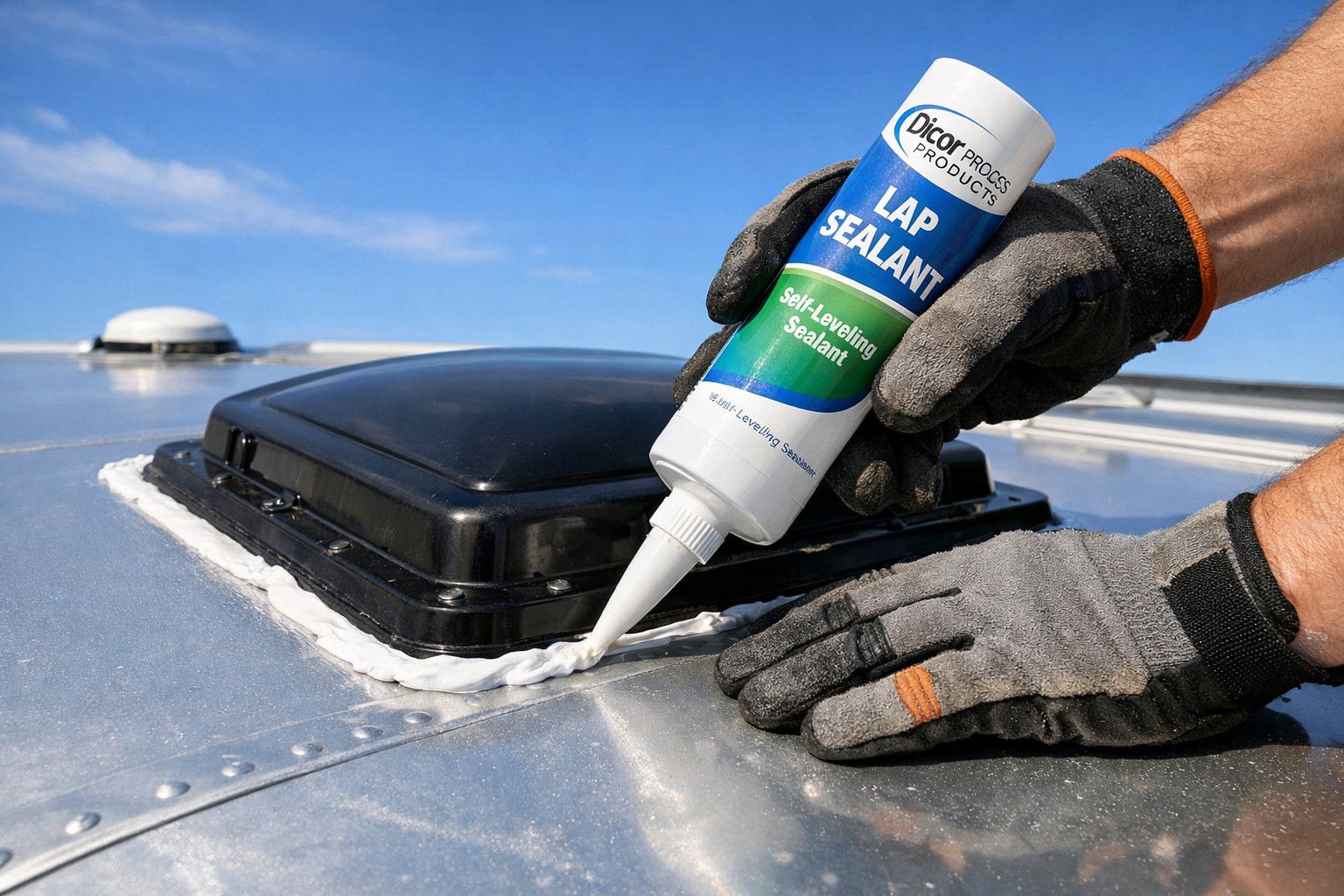

Wipe the roof surface around the vent opening with a dry cloth to remove dust, debris, and old sealant residue. Lay a new gasket or gasket material around the opening flange, centering it on the mounting bolt holes. If using silicone sealant instead of a pre-cut gasket, apply a thin bead around the perimeter of the opening before setting the new motor.

Step 5: Install the new motor and secure bolts

Lower the new Maxxair motor assembly onto the roof opening, aligning the mounting holes. Insert the four stainless steel bolts through the motor flange and into the roof. Tighten them in a cross pattern (opposite corners first) to ensure even seating and prevent warping. Do not over-tighten; snug them firmly until the gasket compresses evenly, then stop.

Step 6: Reconnect wires and test polarity

From inside the trailer, connect the positive wire to the positive terminal and the negative wire to the negative terminal on the new motor. Use solder and heat shrink or crimp connectors matching your original method. Before fully securing, turn on the 12V breaker and listen—the motor should spin smoothly without grinding or squealing. Turn it off immediately and proceed to reinstall the trim ring.

Step 7: Reinstall trim ring and verify operation

Clip or screw the interior trim ring back into place around the vent opening. Turn the breaker back on and run the fan for two to three minutes on high speed, listening for smooth operation and checking that air flows freely from the roof. Feel around the interior trim ring for any air leaks or water drips. If everything is quiet and dry, the job is complete. Install the Maxxair FANMATE cover on the roof to prevent future dust accumulation.
