How to Install an RV Door Lock: A Step-by-Step DIY Guide (Tools, Measurements, and the Mistakes That Wreck a Door Frame)

Is your RV door lock sticking, or won’t it turn the key all the way? Before you assume you need a full replacement, here’s what actually matters: most lock failures aren’t the lock itself — they’re installation mistakes that warp the assembly against the door, or mismatches between your existing cutout and whatever replacement you grabbed. After 80,000 miles of fixing rigs that other people already broke, I’ve learned that door lock installation is a job where five minutes of prep and measurement saves you from a cracked frame and a callback. This is the unvarnished breakdown — which tools actually matter, where people rush and regret it, and how to spot a fitment problem before you’ve already drilled.

Tools You Actually Need (Not the Padded List)

Most RV lock replacements — this one included — reuse the existing door cutout, so you don’t need a hole saw unless you’re switching to a lock with a different bore pattern than what’s currently in the door. Here’s what actually earns a spot in the toolbox for this job:

• Phillips and flathead screwdrivers (a stubby driver helps in the tight interior panel space)
• A tape measure — you’ll use it three separate times before you touch the new lock
• Painter’s tape to protect the exterior finish around the cutout
• A pencil for marking, and a small level for checking the paddle/handle sits square
• Butyl tape or exterior-rated sealant for the plate perimeter once you’re done
• A drill and step bit, held in reserve — only needed if your new lock’s cutout doesn’t match what’s already there

Before You Touch the New Lock: Diagnose the Old One

Don’t skip this. If the old lock rattles, the problem might be a worn strike plate, not the lock body — and if that’s the case, the same failure will happen to your new lock unless you fix the strike plate at the same time. Pull the interior panel, work the latch by hand, and watch where the play actually is: in the cylinder, in the bolt throw, or in the strike. That five-minute inspection tells you whether you’re doing a straight swap or a swap-plus-strike-plate job.

Step-by-Step Installation

1. Measure before you order anything

RV door lock cutouts are not standardized the way residential bores are. A Class C latch commonly needs a 3.5″ x 4.5″ cutout at 1.5″ door thickness; a lot of travel trailers use a smaller 2.67″ x 3.6″ cutout at 1.25″–1.5″ thickness; keyless units often need 3.75″ x 2.75″. Three different lock families, three different hole patterns, all called “RV door lock” in a search bar. Measure your existing cutout width and height, your door thickness, and the backset (keyhole center to door edge) before you order — not after the box arrives.

2. Remove the old assembly completely

Remove both the interior and exterior halves before you do anything else. Set the screws aside in a labeled cup — RV lock hardware kits rarely include extras, and stripped or lost screws are a common reason people end up forcing a fit later.

3. Dry-fit before you commit to anything

This is the step most people skip, and it’s the one that saves you. Hold the new lock’s exterior plate up to the existing cutout without removing backing tape, tightening screws, or trimming anything. Check that it sits flat, that the spindle and cylinder line up with the cutout, and that the paddle or handle clears the surrounding trim when it swings. If anything binds or doesn’t sit flush with light hand pressure, that’s a fitment mismatch — treat it as a fitment problem to solve, not something to muscle through with a longer screw.

4. Seat the interior plate and start every screw by hand

Once the dry-fit checks out, seat the interior plate flat against the door and start all the mounting screws by hand before tightening any of them fully. Tighten in an alternating, criss-cross pattern — top-left, bottom-right, top-right, bottom-left — the same logic as lug nuts on a wheel. Tightening one corner down first is the single most common cause of a new lock binding right out of the box, because it pulls the assembly slightly out of square against the door.

5. Test before you fully tighten anything

With screws snug but not fully torqued, work the key, thumb-turn, and handle through a full cycle. The bolt should throw fully and retract smoothly, and the door should latch without you having to lift, pull, or slam it. If it’s binding at this stage — before final tightening — stop and back off a screw or two rather than forcing the cycle. Forcing it now just hides a problem that will get worse with road vibration.

6. Weatherproof the exterior plate

Run a thin bead of butyl tape or exterior sealant around the back of the exterior plate before final tightening, or around its perimeter after. This is the step that prevents the exact corrosion damage you see in the photo below — water gets behind an unsealed plate, sits against the door skin, and eventually seizes the strike plate or rots the door core from the inside.

Common Installation Mistakes That Actually Cause Callbacks

• Uneven tightening. The single most common cause of a brand-new lock that binds or sticks. Alternate corners, don’t go around in a circle.
• Skipping the dry-fit. The five extra minutes to hold the plate up before drilling or committing catches a mismatch while it’s still free to fix.
• Measuring the outer trim plate instead of the actual door hole. Decorative trim rings are often larger than the functional cutout underneath — measure the hole in the door itself, not the cosmetic plate that covers it.
• Not checking inward vs. outward door swing before ordering. Some lock and handle assemblies are handed (left or right, in or out) — confirm your door’s configuration on the product page before you buy, not after you’ve already drilled.
• Forcing a lock whose hole spacing is close but not exact. “Close enough” on a deadbolt cutout usually means the bolt won’t sit centered over the strike, which undermines the entire point of the upgrade. See the section below.

When the Hole Pattern Doesn’t Match — What to Actually Do

This is the scenario that turns a DIY install into a door repair bill. If your dry-fit shows the new lock’s hole spacing is off from your existing cutout, you have three real options, in order of preference:

• Return it and order a lock from the same family (Bauer, Trimark, LATCH.IT, Global Link) as whatever is currently installed. Like-for-like replacement is dramatically simpler than cross-brand swaps, since manufacturers rarely share bore patterns.
• Look for a lock model that ships with its own escutcheon or backing plate large enough to cover a slightly larger existing cutout — this lets a smaller-footprint lock fit into a bigger hole cleanly, without you cutting anything.
• Only as a last resort, enlarge the cutout — conservatively, checking fit repeatedly as you go — and never force a strike plate to sit somewhere it doesn’t seat flush. A deadbolt that’s slightly misaligned defeats the entire purpose of the upgrade, and on a fiberglass or composite door, over-drilling risks cracking the surrounding skin, which is a much bigger repair than the lock itself.

If you’re staring at a door that’s already been modified by a previous owner — extra holes, filled gaps, a strike plate that’s clearly been relocated — that’s the point to stop and get a quote from an RV service center instead of pushing forward. Compounding a bad repair with another bad repair is how a $50 lock turns into a $300 door.

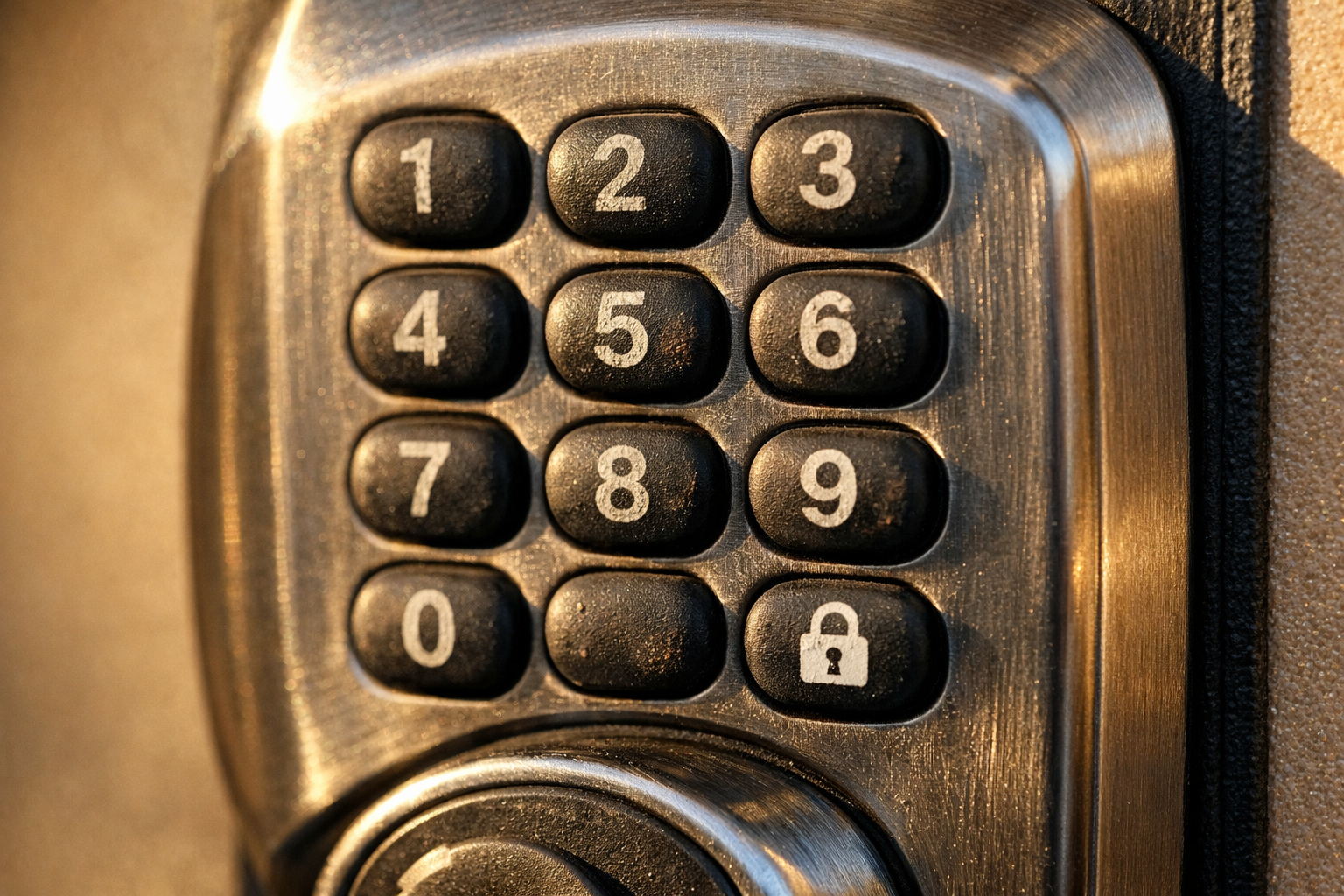

One more note if you’re installing a keypad or keyless lock instead of a purely mechanical deadbolt: the physical mounting steps above are nearly identical. The differences are all downstream of step 6 — seat the battery pack, run through the manufacturer’s code-programming sequence, and test the keypad response before you close everything up.

Case Study: Installing the Deadbolt That Doesn’t Need the Striker Plate Adjusted

When a travel trailer’s factory door latch wears out and the striker plate no longer catches flush, you’re not just looking at a nuisance — you’re looking at a door that swings open on a pothole or during wind gusts. This is a real walkthrough of installing a secondary deadbolt that gives you redundancy: a lock mechanism that doesn’t depend on the original striker plate’s alignment at all, which makes it a good example of exactly the install process above from start to finish.

What works

• Installation doesn’t require striker plate adjustment or a full door rebuild — following the steps above, you’re bolting directly into existing frame or door structure.
• Works on both travel trailers and Class A/C entry doors without brand-specific brackets — the threads and hole patterns are standard enough on this style that dry-fitting confirms a match on most of what rolls through a campground.
• Comes with all mounting hardware, extra screws, and a spare gasket in the box, so you’re not making an extra hardware-store run mid-install.

What doesn’t

• If your door frame is already warped or crooked from age, this install exposes that problem rather than fixing it — you’ll still need to shim the opening to get the bolt sitting flush, exactly as the mismatched-hole-pattern section above describes.
• Skip the dry-fit here at your own risk — cheap knockoff versions of this style have loose internals that stick after a few months of road vibration if the mounting isn’t square from the start.

I installed one on a Keystone fifth wheel where the original latch had play in it — took three tries to get the bolt alignment tight enough that it didn’t bind, using exactly the alternating-tighten method above, but once it seated properly, that door stopped moving entirely. Order the door lock deadbolt and budget thirty minutes for the full install, dry-fit included.
