RV Inverter Sizing, Wiring & Fusing: The Complete Installation Guide

Getting the Inverter Right Is Its Own Project

Picking an inverter is the easy part. Sizing it correctly, wiring it with the right cable gauge, and protecting it with the right fuse is where most DIY installs go wrong — and where the consequences aren’t cosmetic. This guide is narrowly focused on that installation math: how big an inverter you actually need, what wire and fuse that inverter demands, and how to integrate it into your RV’s existing AC system without creating a fire hazard behind a cabinet panel.

Solar and electrical work sits in the middle of the DIY-friendly-to-professional-only spectrum. I’ve seen owners successfully wire a complete battery bank and inverter setup on a Saturday afternoon, and I’ve also been called out to rigs where a poorly fused inverter installation melted wiring inside a wall cavity. The stakes with 12-volt DC and 120-volt AC systems aren’t always obvious, because things can look fine on the surface while a connection is slowly overheating behind a cabinet panel — which is exactly why this guide focuses on the parts of an inverter install that actually determine whether it’s safe, not just whether it turns on.

Pure Sine Wave vs. Modified Sine Wave

Before sizing anything, decide on wave type — it affects which appliances you can safely run. Pure sine wave inverters produce smooth, consistent power that mirrors what you get from the grid. Modified sine wave inverters create a stepped approximation of AC power that’s cheaper but risks damaging sensitive electronics like laptop chargers, CPAP machines, and modern appliance control boards. Most RV owners are better served by pure sine wave despite the higher upfront cost, simply because most modern RVs are full of exactly the electronics that modified sine wave struggles with.

Sizing: Continuous Load, Then Surge

Inverter sizing has two separate numbers, and both matter. First, list every device you’ll run simultaneously and add up the wattage from each device’s label — this is your continuous load. Most RVers land somewhere between 800 and 2,000 watts of continuous draw. Second, account for surge: motors, compressors, and pumps draw far more at startup than while running. A microwave might run at 1,200 watts but spike to 2,400 watts on startup; refrigerators commonly need roughly three times their running wattage at startup, and air conditioners can surge to five times running wattage. Your inverter has to survive that spike without tripping, even though it only lasts a second or two.

Add your continuous load and your largest anticipated surge together, then build in a 20-25% safety margin for conversion losses and future additions. Undersized inverters trip their overload protection repeatedly and shorten their own lifespan; oversized inverters cost more and drain batteries faster in standby, so this isn’t a “buy the biggest one” problem — it’s a math problem worth doing properly once.

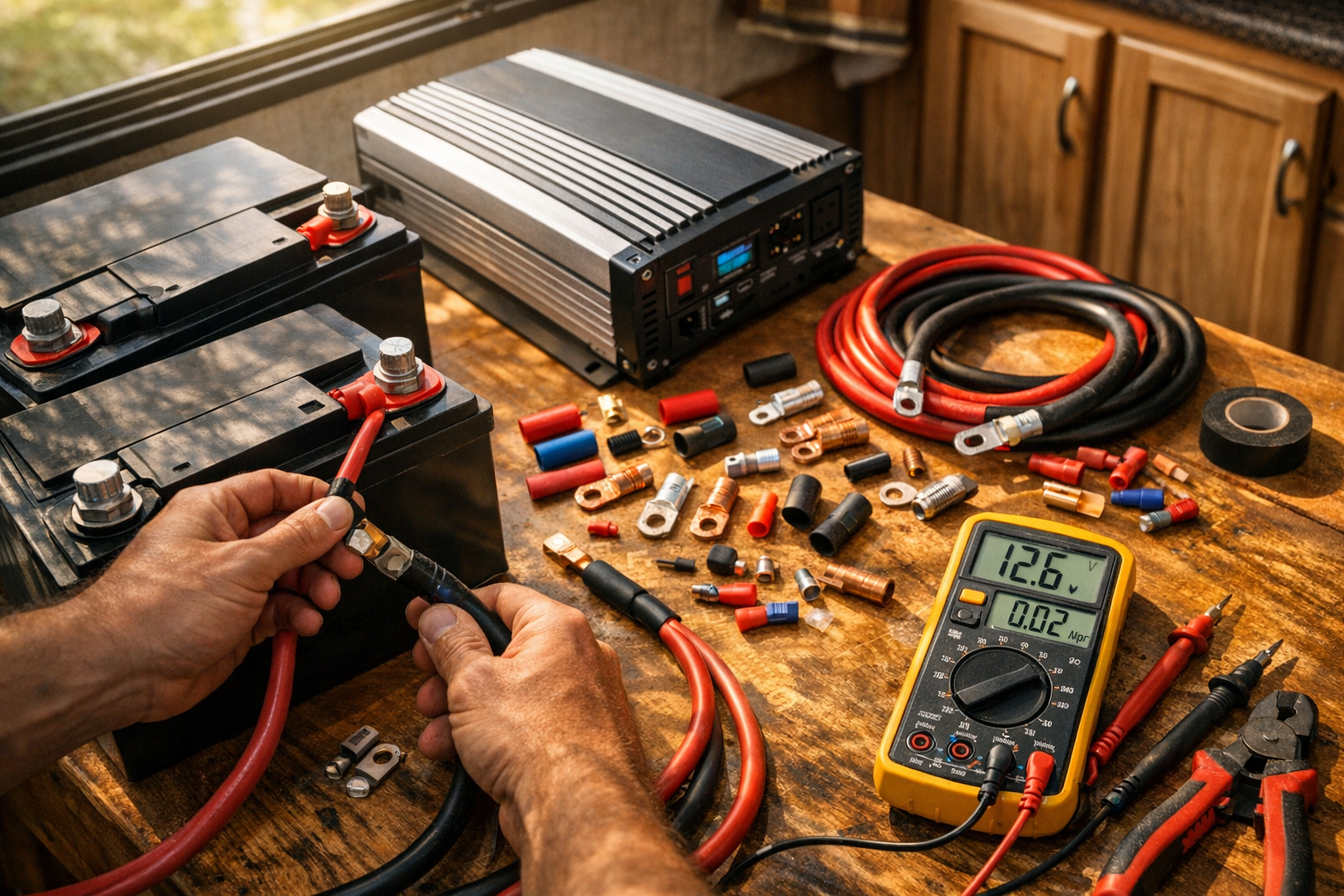

Wire Gauge: Why DC Cabling Is Unforgiving

DC circuits draw far more amperage than AC circuits for the same wattage, because voltage is so much lower. A 1,200-watt inverter running on 12V DC pulls about 100 amps; the same load on 120V AC only draws 10 amps. That amperage difference is why battery-to-inverter cabling needs to be so much thicker than typical household wire — undersized DC wire heats up fast, and the relationship between current and heat is squared, so doubling the current roughly quadruples the heat generated.

The industry rule of thumb for DC runs feeding sensitive equipment like inverters is to keep voltage drop under about 3% of system voltage — on a 12V system, that’s roughly 0.36V. Keep the battery-to-inverter run as short as possible; under six feet is the common target for a 2,000W-class inverter, since that run can see over 200A during startup surge. Cable length matters as much as amperage: a 5-foot run and a 10-foot run carrying identical current need different gauges, because every additional foot adds resistance and therefore voltage drop. Wire gauge numbers work inversely — lower numbers mean thicker wire — so when your inverter’s manual gives you a minimum gauge for your run length, treat it as a floor, not a target; one size up gives you margin for future expansion and reduces heat under sustained load.

Fusing: Sizing the Fuse and Choosing the Type

Every inverter installation needs overcurrent protection between the battery and the inverter, placed as close to the battery’s positive terminal as physically possible — ideally within about seven inches. The basic sizing math: divide your inverter’s watts by your battery voltage to get baseline amperage, then add roughly 15% to account for real-world inverter inefficiency (most units lose 10-15% of power during conversion). A 3,000-watt inverter on a 12V system works out to 250 amps baseline, which becomes about 287 amps after the inefficiency buffer — rounding up to a standard 300-amp fuse.

Fuse type matters as much as fuse size, especially with lithium batteries. Standard ANL or MEGA fuses are common and inexpensive, but their interrupt rating — the maximum fault current they can safely stop — tops out around 6,000 amps depending on the model. Lithium battery banks have very low internal resistance and can push far more current into a dead short than a lead-acid bank of the same capacity, which can exceed what an ANL fuse can safely interrupt. Class T fuses carry an interrupt rating up to roughly 20,000 amps and are the standard recommendation for lithium installations and any larger inverter setup, specifically because they can actually stop a worst-case short instead of arcing internally while failing to open the circuit. Always match your fuse rating to your wire gauge, not just to the inverter — the fuse only protects the wire if it’s sized to blow before the wire overheats.

Integrating With Your Existing AC Panel

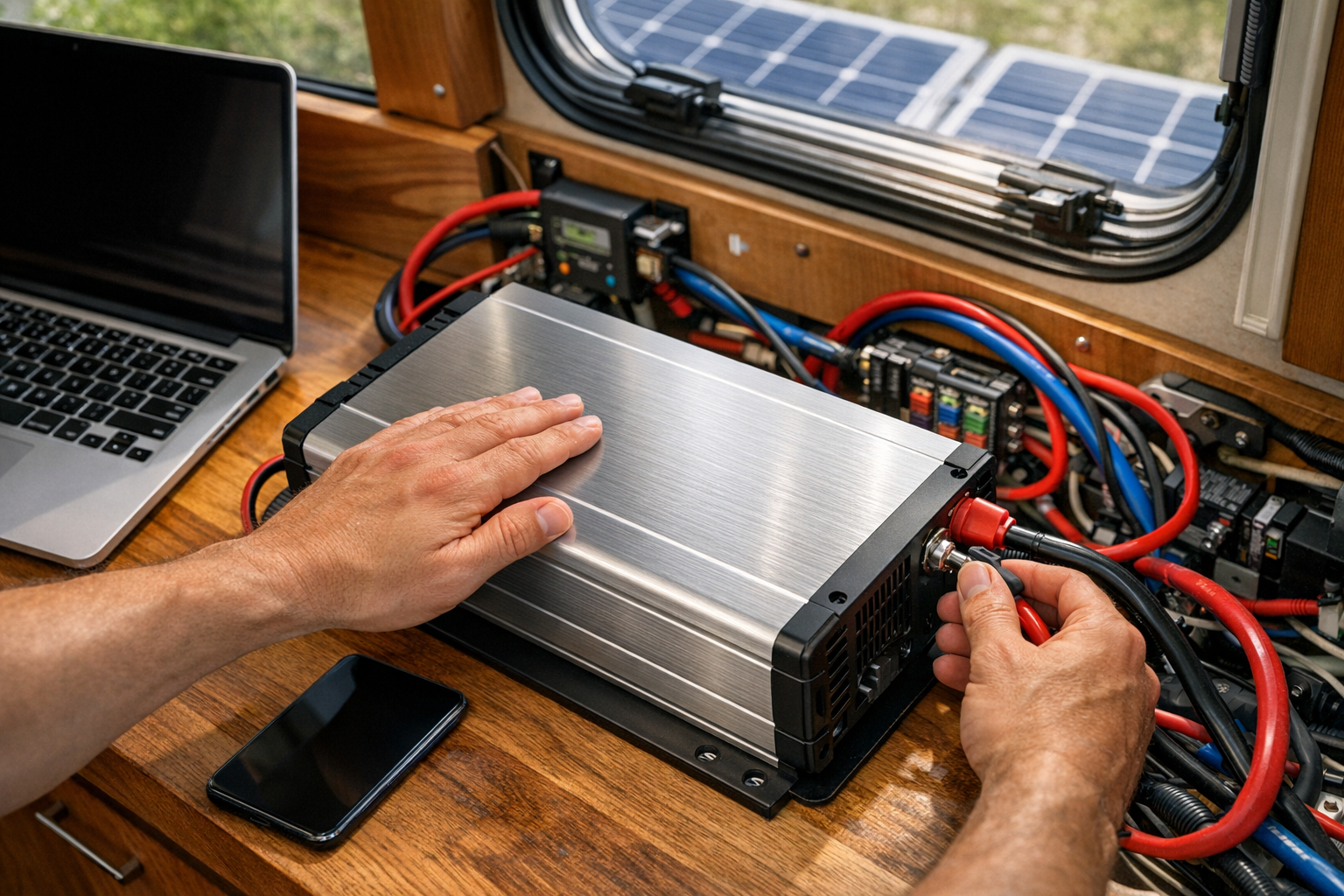

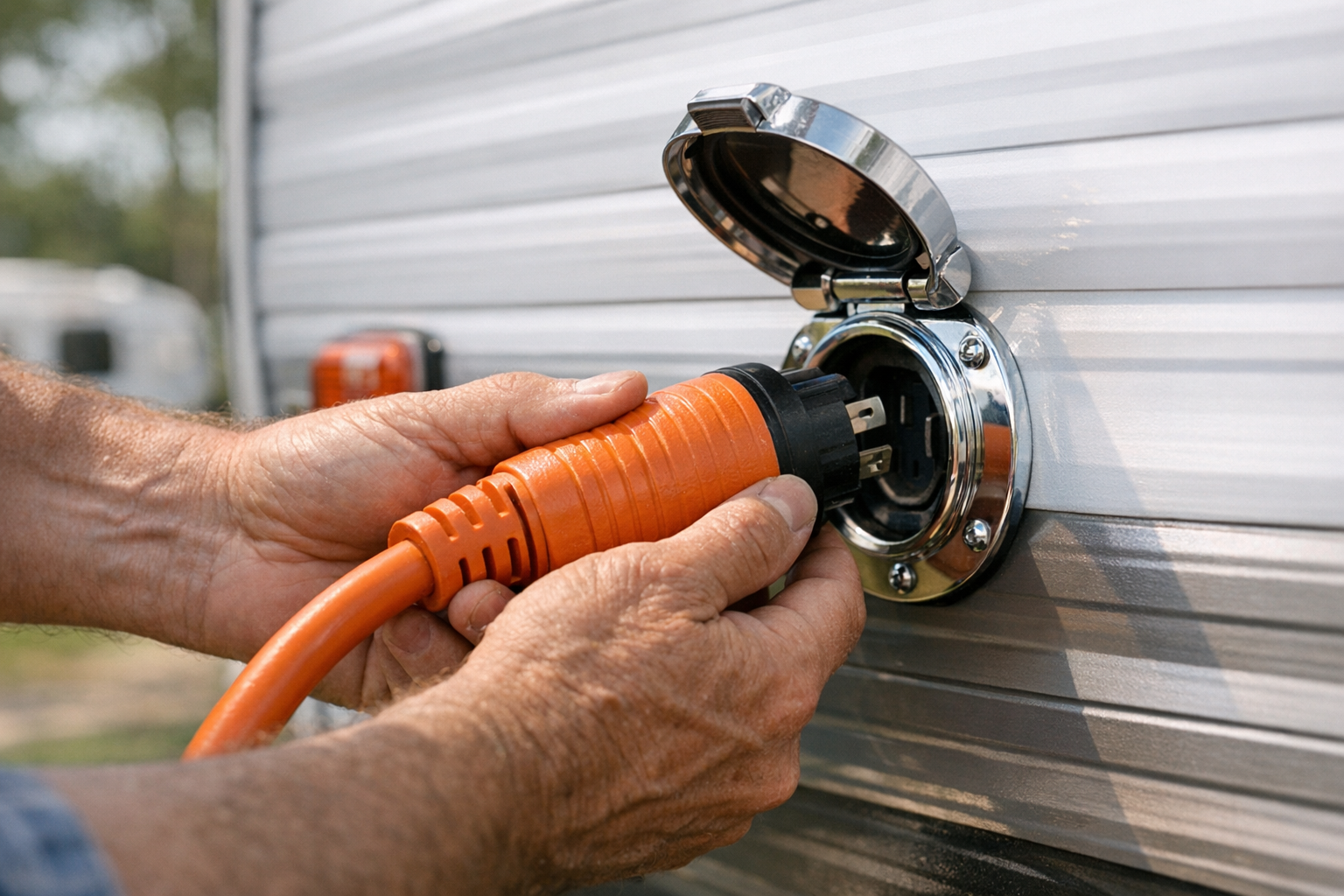

Most RVs already have a shore power connection and an AC distribution panel; your inverter needs to work with that setup, not replace it. A transfer switch — automatic or manual — sits between your shore power inlet, your inverter, and your breaker panel, and ensures only one source feeds the panel at a time. This prevents backfeeding, which is dangerous both to your equipment and to anyone working on shore power lines elsewhere. Automatic switches cost more and are worth it for convenience; manual switches are a legitimate budget option for DIY installs as long as you’re disciplined about flipping them when you connect or disconnect shore power.

Not every circuit needs to run through the inverter. Wire your essential loads — lighting, phone chargers, entertainment systems — through the transfer switch, and leave genuinely high-draw appliances like air conditioners and electric water heaters on shore-power-only circuits. Trying to run a rooftop AC off a modest inverter is a fast way to find its ceiling; a typical 30-amp RV system’s air conditioner alone can draw 12-16 amps, which can consume most of what a mid-size inverter can deliver across the whole rig.

Never bond neutral and ground at the inverter if your RV’s electrical system already has that bond established elsewhere — a second bond point creates a ground loop, which causes nuisance breaker trips at best and a genuine shock hazard at worst. Most inverters ship with this bond configurable; check your specific unit’s manual before you power anything on.

Ventilation and Heat Management

Pure sine wave inverters can reach temperatures well over 100°F during peak operation, and repeated overheating cycles degrade internal components even if the built-in thermal shutdown always catches it in time. Give the unit at least 4 inches of clearance on all sides and avoid sealed cabinets with no airflow — vertical mounting tends to dissipate heat better than laying a unit flat on a shelf. If the compartment itself regularly exceeds 100°F in summer, which is common in battery compartments that also trap heat from the batteries themselves, add a small auxiliary fan rather than relying on the inverter’s internal cooling alone.

Troubleshooting an Installed Inverter

An inverter that shuts down unexpectedly is almost always telling you it hit an overload or a low-voltage cutoff — check your actual simultaneous load against your calculated continuous rating before assuming the unit is defective. Buzzing or humming from a modified sine wave inverter is normal; the same noise from a pure sine wave unit usually means a loose internal connection or a failing component and is worth a professional look. And if you’re chasing a mystery voltage drop under load, the wire run between battery and inverter — and the tightness of every lug along it — is the first thing to check, not the last.

The Pure Sine Wave Inverter That Stops Phantom Loads and Equipment Damage

Most RV owners don’t realize that cheap modified sine wave inverters are silently stressing sensitive electronics — microwaves hum, laptops throttle, and medical equipment won’t run at all. A true pure sine wave inverter, correctly sized and correctly fused per the math above, is the only way to safely convert your battery bank to household-grade AC power without watching your gear fail prematurely.

What works

• Sensitive electronics—laptops, phone chargers, CPAP machines—actually function without thermal stress or damage codes appearing.
• Battery draw is measurably lower because the inverter isn’t forcing inefficient conversion cycles; you’ll see 10–15% better runtime per charge cycle.
• No more mysterious appliance shutdowns mid-use—refrigerator compressors don’t choke, and microwave magnetrons don’t fail after two seasons.

What doesn’t

• They’re 30–40% more expensive than modified sine wave units, and for folks running only lights and fans, that premium feels wasteful upfront.
• Thermal shutdown is real in hot climates—you’ll lose power for 10–20 minutes if ambient temps push the inverter past its rated ceiling, which happens faster in small RV cabins during summer.

I second-guessed upgrading to pure sine wave for my own rig until a laptop power supply failed under warranty and the manufacturer point-blank said modified sine wave was the culprit—that’s when the math made sense. Grab a pure sine wave inverter, size the wire and fuse using the numbers above, and stop betting your electronics on a $200 cost saving.
