AGM vs Lithium: Choosing the Right RV Battery Bank for Solar & Off-Grid Power

Of all the decisions in a solar or off-grid electrical build, the battery bank is the one that’s genuinely hard to walk back. Panels and inverters are relatively easy to swap later; a battery bank is a bigger investment, and picking the wrong chemistry for how you actually camp means re-buying it sooner than you’d like. This guide is specifically about that one decision: AGM or lithium, and how to tell which one actually fits your usage.

I’ve spent years living in my rig through desert summers and mountain winters, and the battery bank is the one component where I’ve seen owners make a call based on sticker price alone and regret it within two seasons. Whichever chemistry you land on, you’ll want solar sized to actually recharge it — a great battery bank that never gets a full charge because the panels feeding it are undersized ages just as fast as a cheap one. This guide walks through the real tradeoffs, not the showroom pitch.

The Core Difference: Usable Capacity

The single biggest difference between AGM and lithium (LiFePO4) isn’t price — it’s how much of the rated capacity you can actually use. AGM batteries are generally kept above 50% state of charge to protect their lifespan, so a 200Ah AGM bank realistically gives you around 100 usable amp-hours. LiFePO4 batteries can be safely discharged to 80-90% depth of discharge without meaningfully shortening their life, so a 100Ah lithium battery delivers close to double the usable energy of a 100Ah AGM battery. This is the number that actually determines how long you can boondock, not the number printed on the case.

Cycle Life and the Real Cost Over Time

AGM batteries typically last somewhere in the range of 300-1,000 charge cycles depending on how deeply they’re discharged and how well they’re maintained. LiFePO4 batteries commonly reach 2,000-5,000+ cycles at the same depth of discharge — a meaningful multiple, not a marginal improvement. In real-world terms for a full-timer cycling a battery bank daily, that often works out to roughly 1.5-2 years of useful life from AGM versus a decade or more from lithium under similar use. The upfront price gap between the two chemistries has narrowed a lot in recent years, and once you price in replacing an AGM bank three to five times over the life of one lithium bank, lithium is frequently the cheaper option over a long ownership horizon — not just the higher-performing one.

Weight: More Relevant Than Most Buyers Expect

A typical 100Ah AGM battery weighs around 60-65 pounds. A comparable 100Ah LiFePO4 battery is typically under half that. For a four-battery bank, that’s a difference of well over 100 pounds — real cargo capacity on a rig where every pound competes with gear, water, and passengers. If you’re already close to your GVWR, or you tow with a vehicle where payload is tight, the weight difference alone can be the deciding factor independent of cycle life or usable capacity.

Cold Weather Performance

This is one area where AGM has a real, unglamorous advantage: standard lead-acid chemistries, including AGM, tolerate cold charging better than lithium. Most LiFePO4 batteries should not be charged below freezing without a built-in low-temperature charge cutoff or a heated battery box, because charging lithium cells below 32°F can cause permanent internal damage even though discharging in the cold is generally fine. If you winter camp regularly in genuinely cold climates, look specifically for lithium batteries with internal heating pads or built-in low-temp charge protection — plain LiFePO4 without that feature is a poor match for a rig that sits in freezing temperatures with solar trying to charge it all day.

Which One Fits Your Actual Camping Pattern

AGM makes sense if:

• You camp occasionally rather than living in the rig full-time, so total cycle count over the battery’s life stays low regardless of chemistry.
• Budget is the primary constraint and you’d rather replace a cheaper battery bank more often than finance a lithium bank upfront.
• You winter camp in genuinely cold conditions and don’t want to deal with low-temperature charge cutoffs or a heated battery box.

Lithium makes sense if:

• You’re a full-timer or frequent boondocker cycling the battery bank daily — this is where lithium’s cycle-life advantage actually pays for itself.
• Cargo weight is tight and you need the usable capacity without the corresponding weight penalty.
• You’re running a sizable inverter for AC appliances — lithium holds a steadier voltage under heavy, rapid discharge than AGM, which sags and can trigger inverter shutdowns under the same load.

Sizing Whichever Bank You Choose

Start with an honest daily energy audit rather than guessing. Walk through your RV and list every device you’ll run, its wattage from the label, and roughly how many hours a day you use it. A 12V refrigerator commonly draws 30-40 amp-hours a day on its own; LED lighting and a water pump might add another 10-20 amp-hours; laptop and phone charging adds more depending on your work setup. Add it up, then build in a buffer — most experienced RVers target 20-30% above their calculated baseline to cover cloudy days and inefficiencies in the charging chain, not to mention appliances you add later.

Because AGM only gives you roughly half its rated capacity as usable power, an AGM bank sized to your daily needs has to be roughly double the amp-hour rating of a lithium bank covering the same usage. That’s the number that actually drives the weight and cost comparison between the two chemistries — not the sticker price per battery, but the total bank size each chemistry requires to deliver the same number of usable amp-hours per day.

Recharging Whatever You Land On

A battery bank is only half the equation — you need a way to recharge it off-grid, and solar is the default answer for most boondockers. A rough starting point: a standard 100-watt panel generates on the order of 25-30 amp-hours on a good sunny day, so a system needing 100 amp-hours of daily recharge typically wants somewhere around 300-400+ watts of panel, with extra margin for cloudy days and less-than-ideal mounting angles. Lithium also charges noticeably faster than AGM because it accepts current at a higher rate as it approaches full, which matters on short-daylight winter trips when you need to catch every available minute of sun.

Pair your charge controller to your battery chemistry, not just your panel wattage — most modern MPPT controllers support both AGM and LiFePO4 charge profiles, but confirm before you buy, since feeding lithium the wrong charge curve is a common way to shorten its life prematurely despite the chemistry’s overall durability.

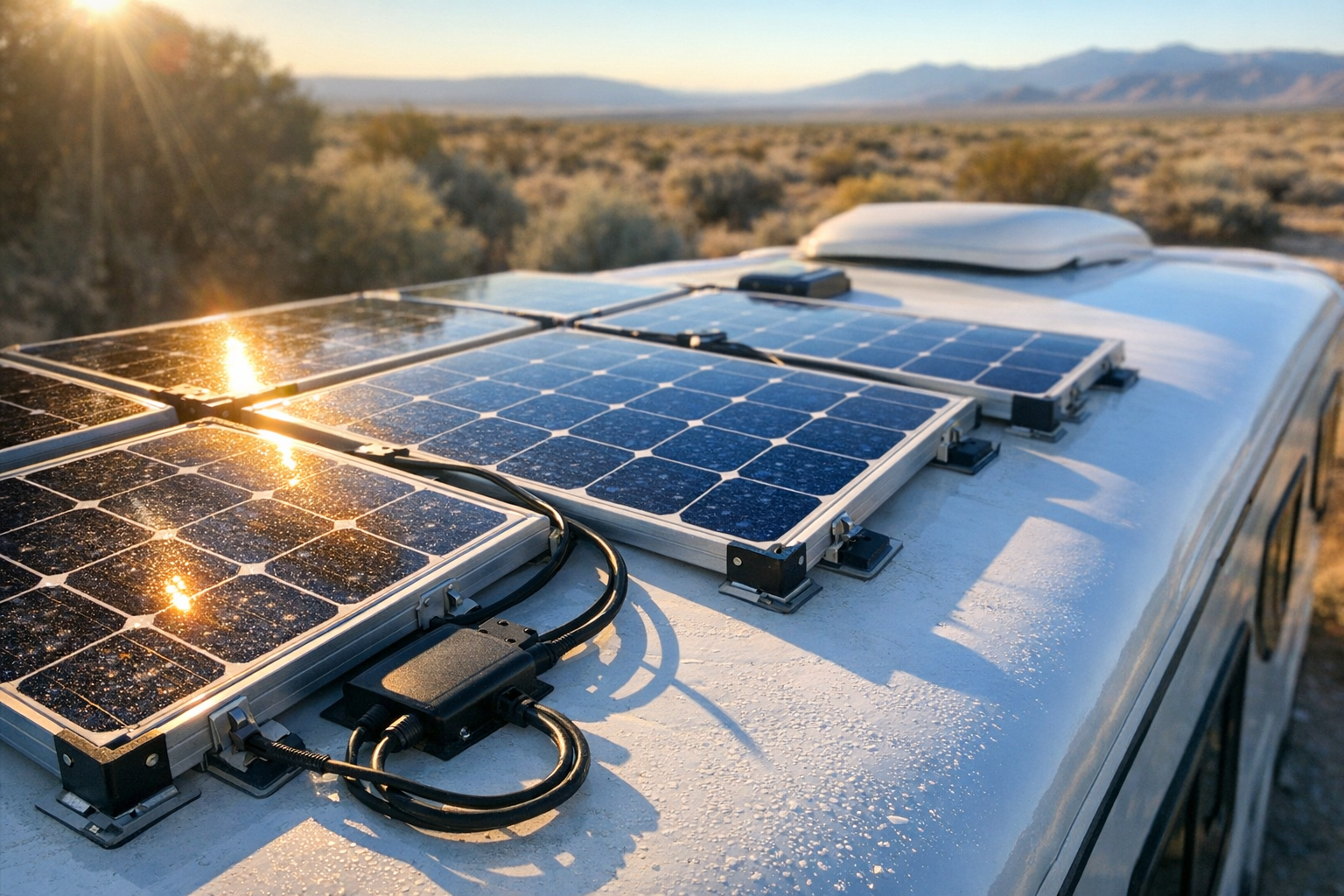

The Solar Panels That Actually Keep Your Battery Bank Topped Off During Boondocking

Most RV owners undersize their solar array and end up living on a deficit—parasitic loads drain faster than the panels can replenish, regardless of which battery chemistry is on the other end. Get this wrong and you’re running your engine or a generator just to keep the fridge cold, which defeats the entire point of boondocking.

What works

• Even on cloudy days you’ll see steady charge current into the battery bank—these panels don’t completely ghost when the sun isn’t perfect.
• The efficiency holds up through multiple seasons; no dramatic degradation in year two or three like some cheaper knock-offs experience.
• Mounting stays solid on roof flexing and vibration—connectors don’t loosen themselves into a fire hazard after 10,000 miles of rough road.

What doesn’t

• Weight is real—you’re looking at roughly 45 lbs per 400W panel, which affects your GVWR headroom, and matters more if you already trimmed weight by choosing lithium over AGM.
• Installation requires proper roof penetration and seal work; cheap self-adhesive mounting will let water in and cost you thousands in mold remediation later.

I second-guessed the wattage when my first full-timer customer pushed back on the cost, but when I watched their battery voltage stay above 13V all day without running the generator, I became a believer. Order the solar panels that match your actual battery bank size, not the cheapest option.
