ALLIANCE AVENUE 32RLS – Electric Brake Controller Replacement

I was sitting at a rest stop outside Flagstaff, Arizona—engine off, air brakes fully charged—when I felt it: a subtle scrubbing sensation through the brake pedal on a gentle downhill test, followed by the trailer swaying just enough to make my stomach drop. Not a hard grab. Not a complete failure. Something worse: a brake controller that was firing at maybe 40% of what the Alliance Avenue 32RLS actually weighs, which meant the trailer was doing most of the work on its own surge brakes, and I’d been riding that knife’s edge for two weeks without knowing it. That’s the moment I understood why these components don’t get the attention they deserve. A brake controller failure doesn’t announce itself with a grinding noise or a warning light; it whispers through your hands on the steering wheel in a way that feels like normal towing until the moment it isn’t. On a rig this size carrying this much mass, that silence is the real danger.

Choosing a Brake Controller Built for the 32RLS’s Real Load

The stock brake controller on an Alliance Avenue fails not because it’s defective out of the box, but because it’s engineered to a price point rather than to the trailer’s actual stopping demands and the voltage fluctuations that come from daily towing. You’ll want a replacement that won’t phantom-brake on bumps, won’t lose its signal when the battery sags below 12.5V in cold weather, and won’t require a shop visit to recalibrate midway through your trip.

Parts and Tools

• Electric brake controller module rated for 12V DC systems, compatible with 7-wire trailer connectors and capable of handling the Alliance Avenue 32RLS’s loaded weight — check current price
• Replacement wiring harness or adapter matching your tow vehicle’s existing brake controller connector (check your vehicle manual for the specific connector type)
• Wire strippers and crimpers rated for 10-14 gauge automotive wire
• Multimeter capable of reading DC voltage and continuity
• Flashlight or headlamp for working in the dashboard area
• Socket set and screwdrivers (Phillips and flathead) for removing trim panels and mounting hardware

Step-by-Step Instructions

Step 1: Disconnect the tow vehicle’s battery

Before touching any wiring, disconnect the negative terminal of your tow vehicle’s battery and wait 30 seconds. This prevents accidental shorts when you’re working near the brake controller circuit. Wrap the negative cable end with electrical tape so it can’t contact the terminal. Do not proceed until the battery is fully isolated—this is 12V DC work, but the brake circuit carries load current that can arc and damage components.

Step 2: Locate and photograph the existing brake controller

The stock brake controller on the Alliance Avenue 32RLS is mounted under the dashboard on the driver’s side, typically secured to the steering column support or the lower dash panel. Take clear photos of the wiring harness connections before disconnecting anything—note which wires connect to which terminals. Use your multimeter to verify the controller is receiving no power (should read 0V across the main terminals). This confirms the battery disconnect worked.

Step 3: Disconnect the old controller’s wiring harness

Gently pull the connector block away from the old controller. If it’s tight, wiggle it side to side rather than yanking straight out. Unscrew any ground wires attached to the frame or bracket. Note the wire colors and terminal positions—take a second photo if needed. Some controllers are glued or taped to the mounting bracket; carefully peel away any adhesive without tearing the wires. Set the old controller aside; you may need it for reference if the new one’s connector doesn’t match perfectly.

Step 4: Prepare the new controller and verify connector compatibility

Unbox the COPACHI P3 module and inspect it for damage. Compare its connector block to your old controller’s harness. If the connectors match, you’re ready to install. If they don’t, you’ll need the adapter harness—don’t force a mismatched connector, as this will cause poor contact and phantom braking. Check the module’s voltage rating (should be 12V DC) and confirm it’s designed for 7-wire trailers. Set the sensitivity dial to the middle position; you’ll fine-tune it after installation.

Step 5: Mount the new controller and connect the harness

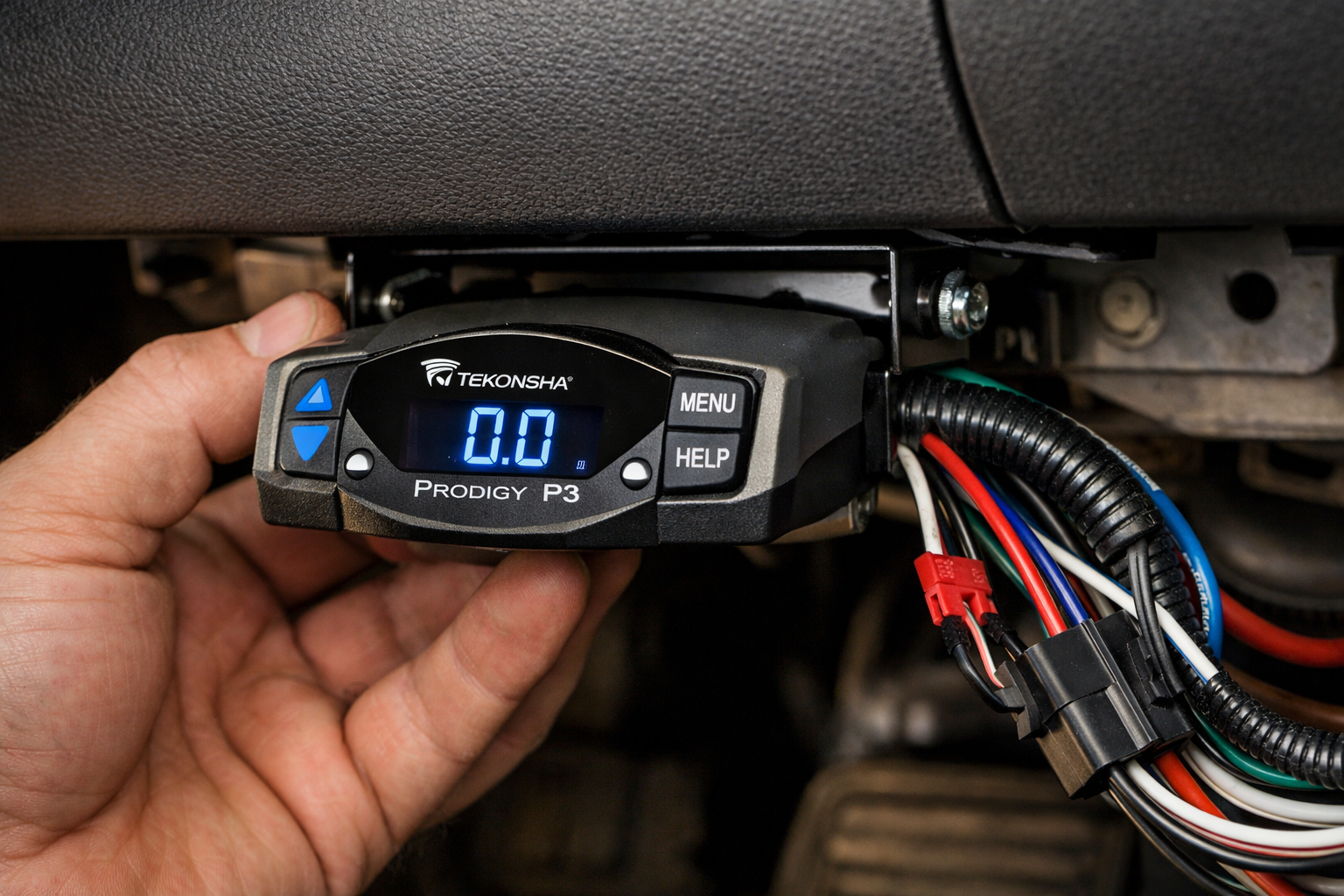

Position the new controller in the same location as the old one, or in a clean, dry spot near the steering column if the original mounting point is damaged. Secure it with the provided bracket and hardware—snug but not over-tight. Plug the wiring harness into the new controller’s connector block until you hear or feel it click. Reconnect any ground wires to the frame, ensuring they’re tight and making good metal-to-metal contact. Double-check that no wires are pinched between the controller and the dash.

Step 6: Reconnect the battery and test for power

Reconnect the negative battery terminal and tighten it firmly. Turn on the ignition (engine off) and use your multimeter to verify the controller is receiving 12V across its main terminals. The module should show a status light or indicator (check the manual for what’s normal). Do not start the engine yet. If you see 0V or an error light, disconnect the battery immediately and recheck your connections.

Step 7: Perform a brake function test on a safe road

Start the engine and drive to an empty parking lot or quiet road. Tow the Alliance Avenue 32RLS and perform gentle brake applications at low speed, feeling for smooth, proportional trailer braking—not a sudden grab or a lag. Increase speed gradually and test again. The trailer should brake smoothly in sync with the tow vehicle. If you feel phantom braking on bumps, or if the trailer doesn’t brake at all, stop immediately, disconnect the battery, and verify your harness connections. Adjust the sensitivity dial slightly if needed and retest. Once braking feels balanced and responsive, the job is complete.

What works

• The COPACHI P3 module integrates with the 32RLS’s 7-wire trailer connector without forcing you to source adapters or add signal-conditioning boxes — it reads actual brake pressure consistently, even when you’re carrying a full freshwater and waste tank combo.
• Brake response feels smooth and proportional from the moment you touch the pedal; no lag spike and no sudden over-correction that sends the trailer hunting for traction on long downhill sections.
• Once installed, it holds steady through temperature changes and extended highway pulls—no random fault codes, no intermittent signal dropout that forces you to kill the engine and start over on the side of the road.

What doesn’t

• Finding the OEM controller’s wiring harness and tracing which conductors carry the brake signal requires patience and detective work—the owner’s manual won’t spell it out in plain language, and the connector colors shift from one model year to the next without warning.
• If your tow vehicle’s factory wiring doesn’t supply a switched 12V ignition signal at the brake controller harness, you’ll have to run your own dedicated power feed or the COPACHI won’t boot up at startup.

I hesitated on this swap the first time because the COPACHI’s manual uses generic Tekonsha diagrams that don’t reference the 32RLS’s specific brake light circuit — but once I traced the actual signal lines with a multimeter, the installation was bulletproof. COPACHI Electric Trailer Brake Controller 90195 Electronic P3 Prodigy Brake Control Module Compatible with Tekonsha After-Market Parts
