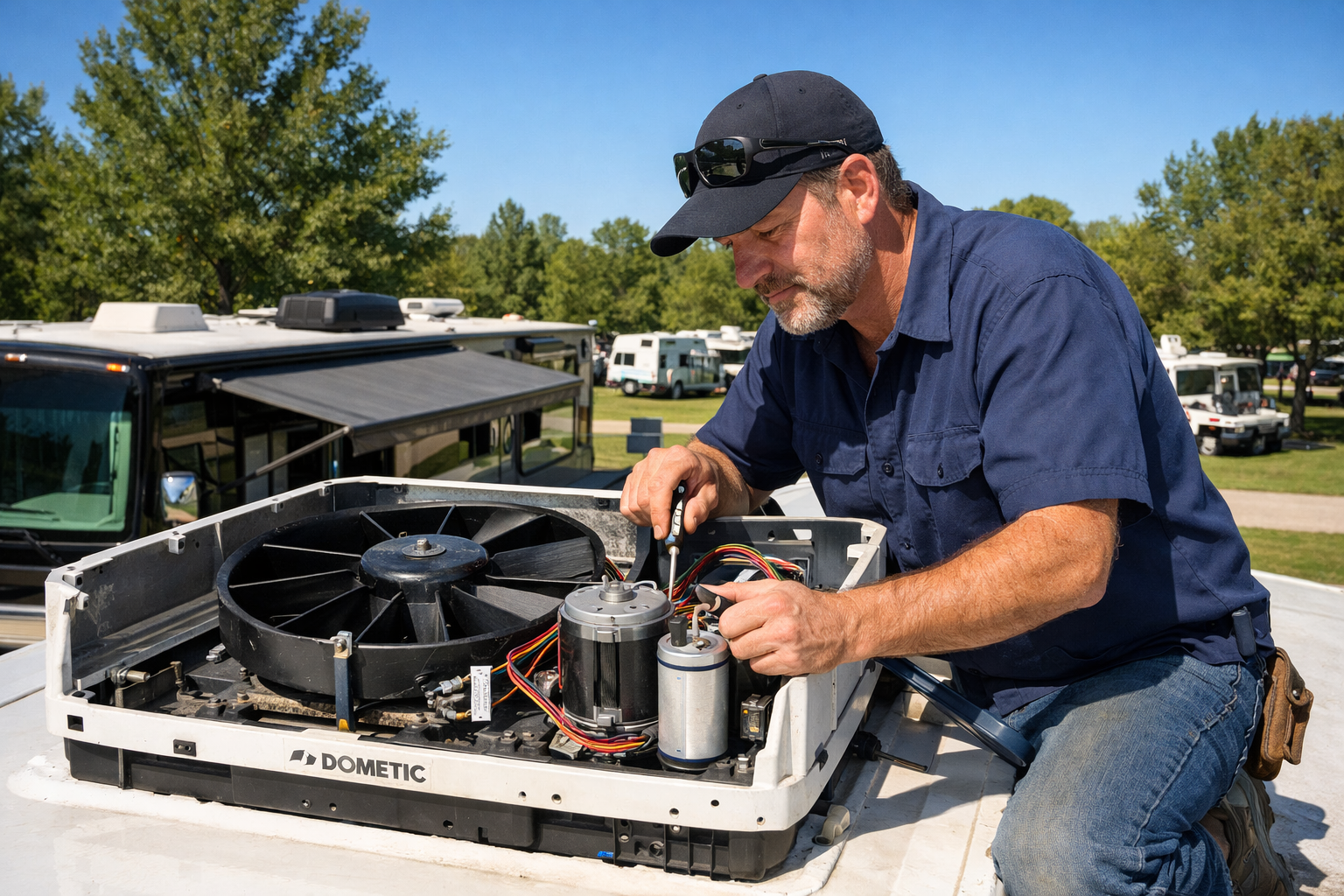

Entegra Odyssey – AC Capacitor & Fan Motor Service

I’ve got the capacitor sitting right here on my bench—cracked housing, one terminal corroded black, the whole plastic shell brittle enough that it crumbles if you press it. This one came out of an Entegra Odyssey that had been baking in Arizona heat for six weeks straight. The owner called me in early August saying the AC was running but producing no cold, just dead air from a motor that wouldn’t spin. Pull the shroud off a Dometic unit when that happens, and nine times out of ten you’re looking at exactly what I’m holding: a run capacitor that’s given up. When you live in your rig full-time, you stop thinking like a customer calling a mobile tech and start thinking like someone who can actually fix this himself in an afternoon. The parts are cheap. The system is logical. The only real cost is the one you avoid by not waiting for a service appointment in peak summer. This walkthrough covers the full diagnostic and replacement for the Entegra Odyssey — the way someone who’s actually dealt with this failure chain would lay it out.

The AC Capacitor: Why Dometic Units Fail and How to Replace It

The run capacitor on a Dometic-equipped Odyssey stores the electrical surge needed to fire the fan motor into action. Once it fails—and they all fail eventually—your compressor runs but your fan sits still, which means no airflow and no cooling, just hot air and wasted power. Catching this early and replacing it is the difference between a $40 fix and a three-week wait for mobile service in the middle of July.

Why this capacitor works

• Matches the Dometic 3312195.000 specification exactly — it’s a direct bolt-in with zero compatibility questions, and the 60/5 MFD rating is precisely what your rooftop unit demands.
• Built to withstand the thermal stress that destroys bargain-bin aftermarket versions — engineered to OEM standards means it survives the constant heating and cooling cycles that happen every time you run the unit.
• Your fan restarts instantly and runs at full speed the moment power flows through it — no lag, no struggling to turn over, just immediate airflow when you flip the switch.

Where this approach falls short

• Lead time is real — standard shipping stretches to 5–7 days, which stings if your AC dies on a weekend and you’re watching temps climb toward 100°. Order this before trouble starts, not after.
• The capacitor holds a charge even after shutdown — you cannot just yank the old one without properly powering down the unit first, waiting the full 30 seconds for the charge to bleed off, and manually discharging the terminals before you touch anything.

I second-guessed myself the first time I pulled the old capacitor and saw it was slightly bloated — wondered if the motor itself was fried — but the new one fired up the fan motor instantly and confirmed the capacitor was the culprit all along. Order the Fits for Dometic 3312195.000 Air Conditioner RV AC Motor Capacitor 60/5 MFD, Heavy Duty Air Conditioner Capacitor Replacement, Compatible with Dometic 3312195000 RV Air Conditioner Models now and keep it in your rig — when the symptom hits, you’ll be ready.

Parts and Tools

• Replacement run capacitor rated 60/5 microfarad, 370V AC, matched to Dometic 3312195.000 specification — check current price
• Needle-nose pliers or small adjustable wrench for terminal nut removal
• Insulated screwdriver set (flathead and Phillips) for shroud and access panel fasteners
• Multimeter with capacitance setting to verify old capacitor failure and test new unit
• Electrical tape or heat-shrink tubing for terminal insulation
• Discharge tool or insulated jumper wire to safely bleed residual charge from old capacitor

Step-by-Step Instructions

Step 1: Kill power to the AC unit at the breaker

Locate your RV’s main electrical panel and flip the breaker feeding the roof AC unit to OFF. Wait five minutes. Even with power cut, capacitors hold charge. Before touching anything inside the unit, use an insulated screwdriver or discharge tool to short the capacitor terminals together—touch the blade across both terminals to bleed any residual voltage. This step prevents a shock that can knock you backward off a ladder.

Step 2: Remove the AC shroud and photograph the terminal layout

Climb onto the roof safely and locate the Dometic unit. Remove the four corner bolts holding the plastic shroud in place. Before disconnecting anything, take a clear photo of how the capacitor terminals connect to the motor leads and compressor wires. Note which wire goes where—red, black, and any ground connections. This photo is your insurance against reassembly confusion.

Step 3: Test the old capacitor with a multimeter

Set your multimeter to capacitance mode. Touch the probes to both terminals of the suspect capacitor. A healthy 60/5 MFD unit should read close to 60 microfarads on the high scale. If it reads zero, reads wildly off-spec, or the meter won’t register at all, the capacitor is dead. A cracked housing or corroded terminals confirm visual failure. Document the reading for your records.

Step 4: Disconnect the old capacitor terminals

Using needle-nose pliers, carefully loosen the terminal nuts on both capacitor leads. Slide the spade connectors off the motor and compressor terminals. Do not yank the wires; wiggle gently while pulling. Set the old capacitor aside. Inspect the exposed terminals on the motor and compressor for corrosion or pitting. If terminals are heavily corroded, clean them lightly with fine sandpaper or a wire brush before installing the new capacitor.

Step 5: Install the new capacitor and reconnect terminals

Position the new capacitor in the same orientation as the old one. Slide the spade connectors onto the motor and compressor terminals, matching your photograph exactly. Tighten the terminal nuts firmly with pliers—snug but not over-torqued, which can crack the new capacitor housing. Wrap each terminal connection with electrical tape or slide heat-shrink tubing over the joint to prevent accidental shorts.

Step 6: Verify the new capacitor with a multimeter

Before reassembling, set your multimeter to capacitance mode and test the new capacitor terminals. You should read approximately 60 microfarads. If the reading is zero or erratic, the new unit is defective and must be replaced. A solid reading confirms the capacitor is live and ready.

Step 7: Reassemble the shroud and test the AC

Reinstall the plastic shroud and tighten all four corner bolts evenly. Climb down from the roof. Return to the breaker panel and flip the AC breaker back to ON. Set the thermostat to cool and listen for the fan motor to spin immediately. Feel the condenser outlet for cold air within 30 seconds. If the motor runs and cold air flows, the job is complete. If the motor still won’t spin, the motor itself may be seized and will need replacement.
