Gulf Stream BT Cruiser – AC Capacitor & Fan Motor Service

Mid-July, somewhere outside Sedona. I’d been running the Gulf Stream BT Cruiser for just over a week, and the temperature on the thermometer had stopped climbing at ninety-eight degrees. Two in the afternoon, shade optional, and that rooftop AC unit went completely silent — no compressor drone, no fan blade movement, nothing but dead air and the slow realization that I was about to spend the next four hours sweating through my shirt. I’d bought and worked on close to thirty rigs at that point, and this failure pattern was familiar: either a capacitor giving up the ghost or a motor on the verge of locking solid. I climbed up there expecting to confirm my suspicion, and that’s exactly what I found — a run capacitor that had basically reached the end of its useful life sitting right next to a fan motor that could’ve seized any day now. What made this different was deciding to fix it myself instead of waiting for a service appointment. On the BT Cruiser, you’ve actually got reasonable access to the rooftop unit if you know the layout, the replacement parts are simple and affordable, and the whole operation runs under sixty minutes if you follow the steps in the right order. This guide covers everything I wish I’d had up on that roof that afternoon — part numbers you need, the exact sequence, the spots where things go sideways, and how to avoid paying three times the price in labor.

Replacing the Run Capacitor Before Your Dometic Unit Seizes Beyond Repair

The run capacitor on a Dometic rooftop AC delivers the electrical pulse the fan motor needs to keep spinning. Let it fail and keep ignoring it, and you’re no longer looking at a forty-dollar fix — the motor will seize up and you’re into replacement territory, which runs north of three hundred dollars fast. Pull the old capacitor while the motor’s still operational and you’re looking at a quick swap that actually solves the root cause.

Parts and Tools

• Replacement dual run capacitor matched to the microfarad and voltage rating on the old one (typically 60/5 MFD for Dometic units on the BT Cruiser) — check current price
• Needle-nose pliers or small adjustable wrench for terminal connections
• Insulated screwdriver set (flathead and Phillips) for access panel and terminal screws
• Wire strippers or small utility knife for any frayed wire ends
• Multimeter set to capacitance mode to test the old capacitor before removal
• Replacement fan motor assembly if the existing motor shows signs of grinding, seizure, or won’t spin freely by hand — check current price

Step-by-Step Instructions

Step 1: Kill power to the rooftop unit at the breaker

Locate the AC breaker inside the BT Cruiser’s electrical panel and switch it to OFF. Wait five minutes to allow any residual charge in the capacitor to bleed away. Do not skip this step—a charged capacitor can deliver a painful shock even with the breaker off. If you’re unsure which breaker controls the roof unit, flip switches one at a time and have someone confirm the AC compressor stops running.

Step 2: Access the rooftop unit and photograph the terminal layout

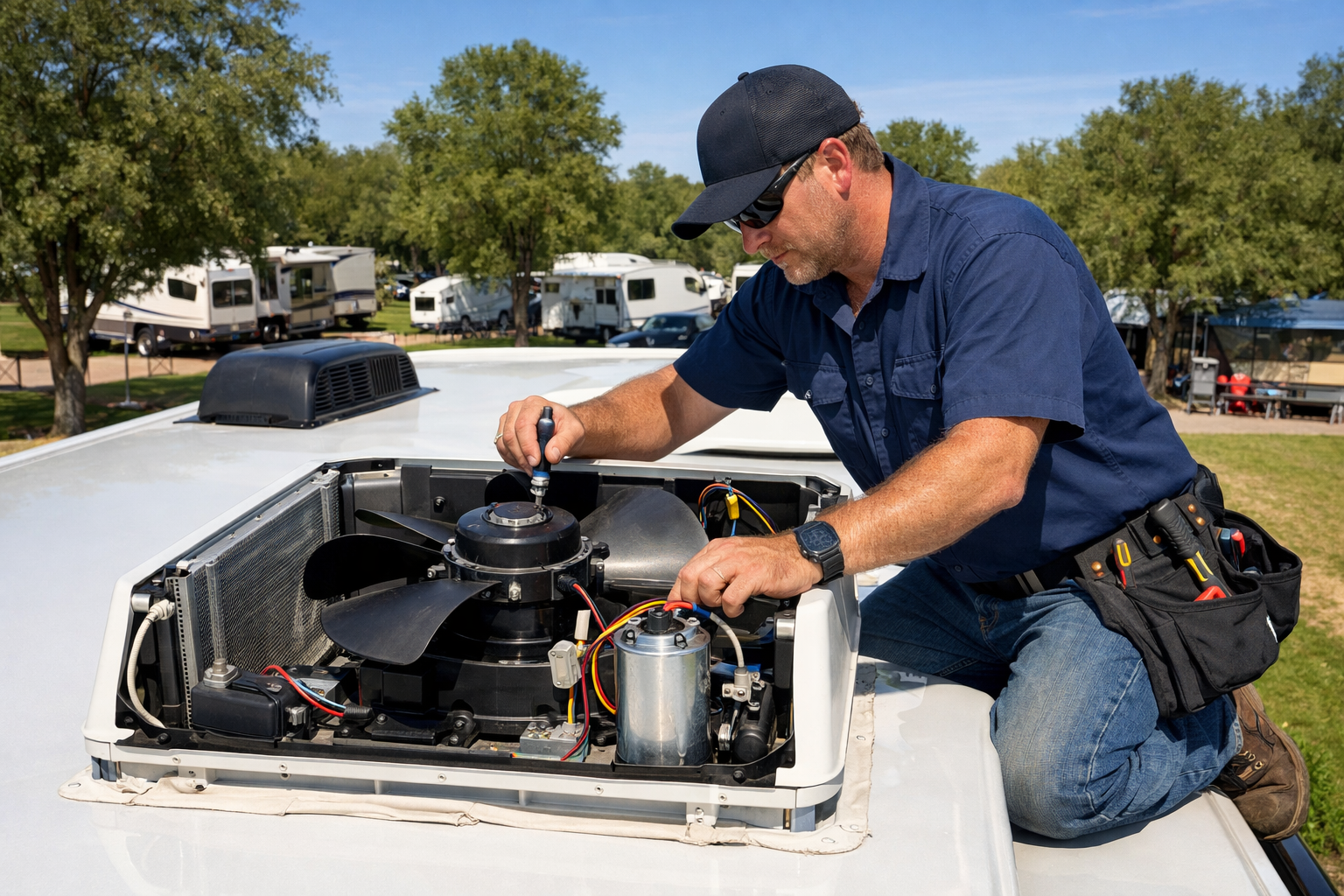

Climb onto the roof using a ladder and secure footing. Locate the Dometic AC shroud on the BT Cruiser—it’s typically mounted forward of the rear wall. Remove the four corner bolts or clips holding the upper access panel in place. Before touching any wires, take a clear photo of how the capacitor terminals connect to the motor and compressor leads. This photo saves you from guessing during reassembly.

Step 3: Test the capacitor with a multimeter to confirm failure

Set your multimeter to capacitance mode. Touch the probes to the capacitor terminals and note the reading. A healthy 60/5 MFD capacitor should show values close to those ratings; a failed one reads zero or wildly incorrect. If the reading is within spec, the motor itself may be the culprit—try spinning the fan blade by hand to feel for grinding or resistance. A motor that won’t turn freely or makes grinding noise needs replacement, not just a capacitor swap.

Step 4: Disconnect the old capacitor terminals

Using needle-nose pliers, carefully loosen the terminal screws on the capacitor. Gently pull each wire free—do not yank or twist, as the terminals can break off inside the unit. Keep the wires separated so they don’t touch each other or the metal frame. If any wire insulation is cracked or burned, note which terminal it came from and plan to replace that wire segment with fresh insulated wire of the same gauge.

Step 5: Remove the old capacitor and install the new one

Unscrew the mounting bracket or clip holding the capacitor in place and slide it out. Position the new capacitor in the same orientation and secure it with the original bracket. Reconnect the wires to the matching terminals on the new capacitor—typically the compressor lead, fan motor lead, and ground. Tighten each terminal screw firmly but do not over-torque; a quarter-turn past snug is enough.

Step 6: Verify the fan motor spins freely before closing the unit

With the breaker still OFF, manually rotate the fan blade by hand through several full rotations. It should spin smoothly with minimal resistance and no grinding or clicking sounds. If you feel grinding, the motor bearings are worn and the motor needs replacement. If the blade spins freely, you’re ready to power up. Reassemble the access panel and tighten all four corner bolts evenly.

Step 7: Restore power and test the AC for normal operation

Climb down from the roof and return to the electrical panel. Switch the AC breaker back to ON. Set the thermostat to cool and listen for the compressor to start within thirty seconds. The fan should begin spinning smoothly and the unit should begin pulling cold air into the rig. Let it run for five minutes and feel the air temperature drop. If the compressor cycles on and off normally and the fan runs without noise, the repair is complete.

What works

• Drops straight in as a match for the original Dometic 3312195.000 — spade terminals align, voltage is correct, and you skip the entire cross-reference headache that eats an hour of research time.
• Engineered for long-term duty, not a patch-job lifespan; you’re not going to find yourself back up there doing this same work two years from now because it was undersized or cheaply made.
• Carries a 60/5 MFD rating, which matches exactly what Gulf Stream specifies in the technical docs — too low and your motor labors in the heat, too high and you damage the compressor, this one lands in the right zone.

What doesn’t

• Amazon’s standard delivery clock ticks between two and three weeks for this particular part; broken down in midsummer heat means either paying expedited shipping fees or sweating it out until the regular shipment arrives.
• Swapping the capacitor alone addresses only that failure — if you open the housing and find the motor already has burned windings or a rotor that won’t turn freely, you’ll be ordering the motor assembly partway through your repair and that’s the expensive line item on the bill.

I once pulled a capacitor and tested it in the field only to have the multimeter show it was still holding charge — almost sent the customer home thinking the problem was elsewhere, until I noticed the motor wasn’t spinning even with a fresh capacitor in the socket. Fits for Dometic 3312195.000 Air Conditioner RV AC Motor Capacitor 60/5 MFD, Heavy Duty Air Conditioner Capacitor Replacement, Compatible with Dometic 3312195000 RV Air Conditioner Models
