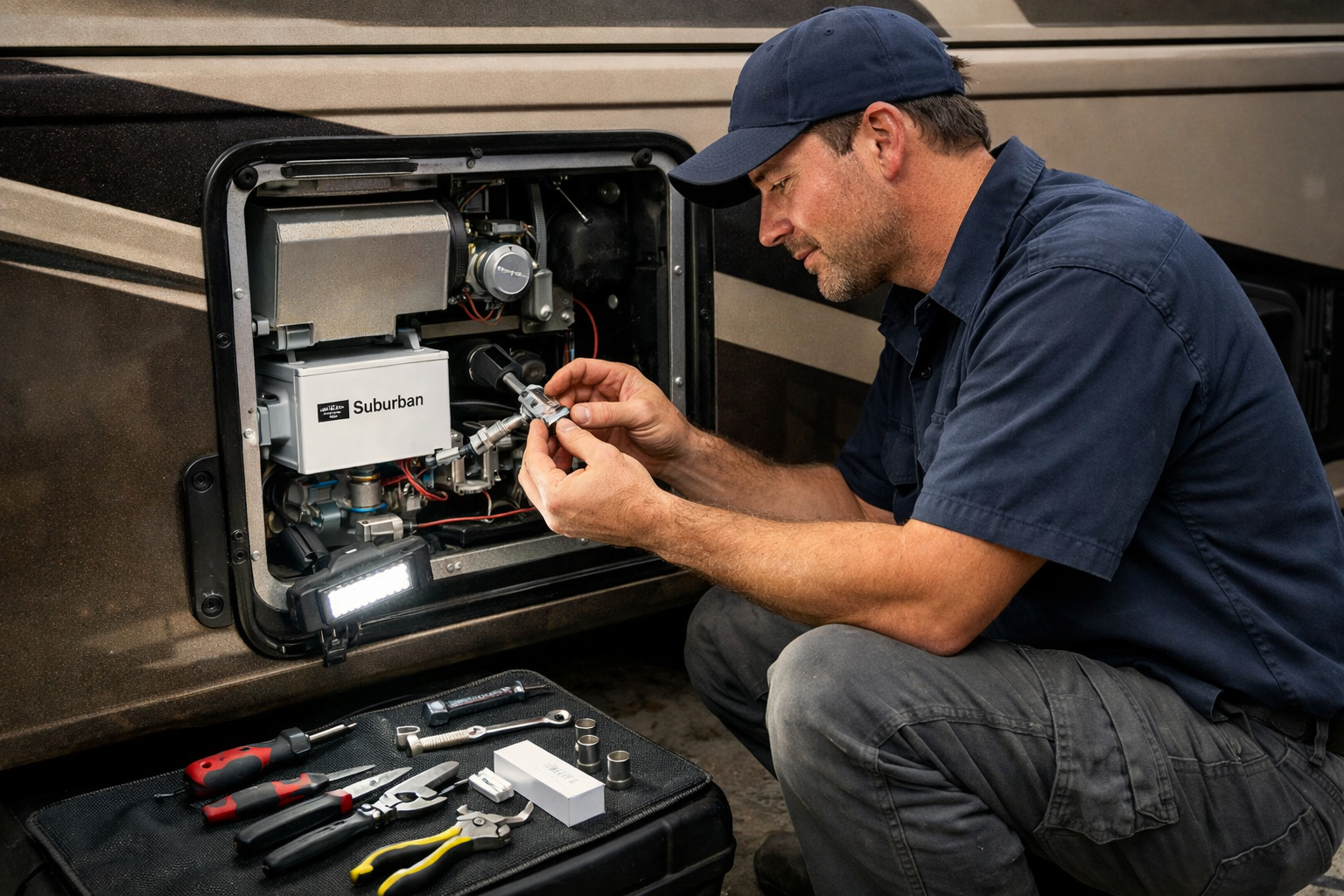

Gulf Stream BT Cruiser – Furnace Igniter & Control Board Replacement

Your furnace quit mid-freeze, and you’re staring at a thermostat that’s dropping by the hour while dealer techs won’t pick up until Tuesday. So what’s actually broken—and can you fix it yourself without waiting for a service appointment that costs more than the part itself?

On the Gulf Stream BT Cruiser, furnace failures almost always trace back to one of two culprits: the igniter electrode or the control board. Both sit within arm’s reach if you know where to look, both are replaceable in under two hours with basic tools, and both cost a fraction of what a shop will charge you to source, install, and bill you for “diagnostic time.” The catch is that cold weather won’t wait while you’re learning the difference between the two—so I’m walking you through exactly how to identify which one failed, what the replacement process looks like, and which part number gets you back to working heat before the weekend.

Diagnosing the Igniter Failure on Your BT Cruiser Furnace

The igniter electrode is the first component to wear out in most BT Cruiser furnaces, and when it fails, you’ll recognize the pattern immediately: the blower kicks on, cold air blows out of the vents, and the furnace control board cycles through its ignition sequence over and over without ever actually lighting. This is the part to replace before you start troubleshooting wiring harnesses or second-guessing the board itself.

Parts and Tools

• Replacement igniter electrode assembly with wire harness, matched to Suburban OEM part number 232286 — check current price
• Furnace control board replacement (Suburban brand, matched to your BT Cruiser model year and voltage rating)
• Wire strippers and crimpers for reconnecting igniter harness to control board terminals
• Needle-nose pliers for removing and seating wire connectors on control board
• Flashlight or headlamp for visibility inside furnace cabinet
• Small Phillips and flathead screwdrivers for access panel and terminal screws

Step-by-Step Instructions

Step 1: Kill power to the furnace at the breaker

Locate your RV’s main electrical panel and switch off the breaker feeding the furnace circuit—usually labeled clearly. Wait 30 seconds to allow any residual charge to bleed off. This prevents shock and protects the control board from voltage spikes during disconnection. Do not proceed until you’ve confirmed the thermostat display is dark and the blower is silent.

Step 2: Access the furnace cabinet and photograph the wiring layout

Open the furnace access panel, typically located on the front or side of the unit. Before touching anything, photograph the control board and igniter electrode with your phone, making sure the wire connections are clearly visible. This reference image saves you from guessing during reassembly. Note which wires connect to which terminals—colors matter, and a photo beats memory every time.

Step 3: Test the igniter electrode for continuity

Set a multimeter to ohms and touch the probes to the igniter electrode terminals. A working electrode reads between 4 and 14 ohms; anything higher or infinite resistance confirms the igniter has failed. If the reading is normal, the control board is likely your culprit. Document this result so you know which part to replace before you start disconnecting anything.

Step 4: Disconnect the igniter harness from the control board

Locate the wire connector linking the igniter electrode to the control board—usually a two-pin or three-pin plug. Gently pull the connector straight out; do not twist or yank sideways, as the pins inside are fragile. If it’s stubborn, use needle-nose pliers to carefully work it free. Set the old igniter assembly aside; you’ll need the harness length as a reference for routing the new one.

Step 5: Remove the old igniter electrode and install the new one

The igniter electrode is typically held by one or two screws into the furnace combustion chamber wall. Remove these fasteners and slide the old electrode out. Insert the new 232286 electrode into the same position, ensuring the probe sits at the correct depth—it should not touch the burner or the chamber wall. Secure with the original screws, hand-tight only; over-tightening cracks the ceramic insulator.

Step 6: Reconnect the igniter harness and verify the control board

Plug the new igniter harness connector back into the control board, matching the pin orientation to your reference photo. If the igniter tests good but the furnace still won’t light, the control board is the failure point. Disconnect the board’s power terminals, remove the mounting screws, and swap in the replacement Suburban board, reconnecting all wires in the same order they came off.

Step 7: Restore power and test the ignition cycle

Switch the breaker back on and set the thermostat 5 degrees above the current cabin temperature. Listen for the blower to start, then watch for the igniter to glow orange-red within 10 seconds. The burner should light within 30 seconds of ignition. If the furnace cycles and produces heat, the repair is complete. If it still fails, turn off the breaker and recheck all wire connections against your photo.

What works

• The OEM part number 232286 cross-references directly from the Suburban nameplate, eliminating any uncertainty about fit—this is exactly what left the factory installed in your rig.
• Within 30 seconds of powering up the furnace after installation, you’ll hear the characteristic spark-click from the new electrode, followed immediately by the ignition flame and warm air—no more watching cycles fail to produce heat.
• The electrode assembly arrives with the wiring loom already bundled and positioned, so you’re not splicing loose wires or inheriting someone else’s questionable solder joints.

What doesn’t

• Plan on 5–10 business days for delivery through standard channels—a death sentence if you’re already shivering and need heat in 48 hours, so order this as insurance before your igniter actually fails.
• Accessing the electrode means removing the furnace shroud and its mounting hardware; if corrosion or seized bolts have welded those brackets in place, you’re looking at 45 minutes to an hour just fighting your way to the part itself.

I second-guessed myself the first time I tested the old igniter with a multimeter and saw no resistance—I thought maybe the control board was bad instead, which would have meant replacing a $300+ board when a $40 igniter was the real culprit. Fit For Suburban RV Furnace Parts 232286,Single Probe Gas Furnace Igniters Electrode with Wire Assembly, Camper Furnace For Suburban 232286 Above 934701426 SF-20, SF-25, SF-30, SF-35 (SF Series)
