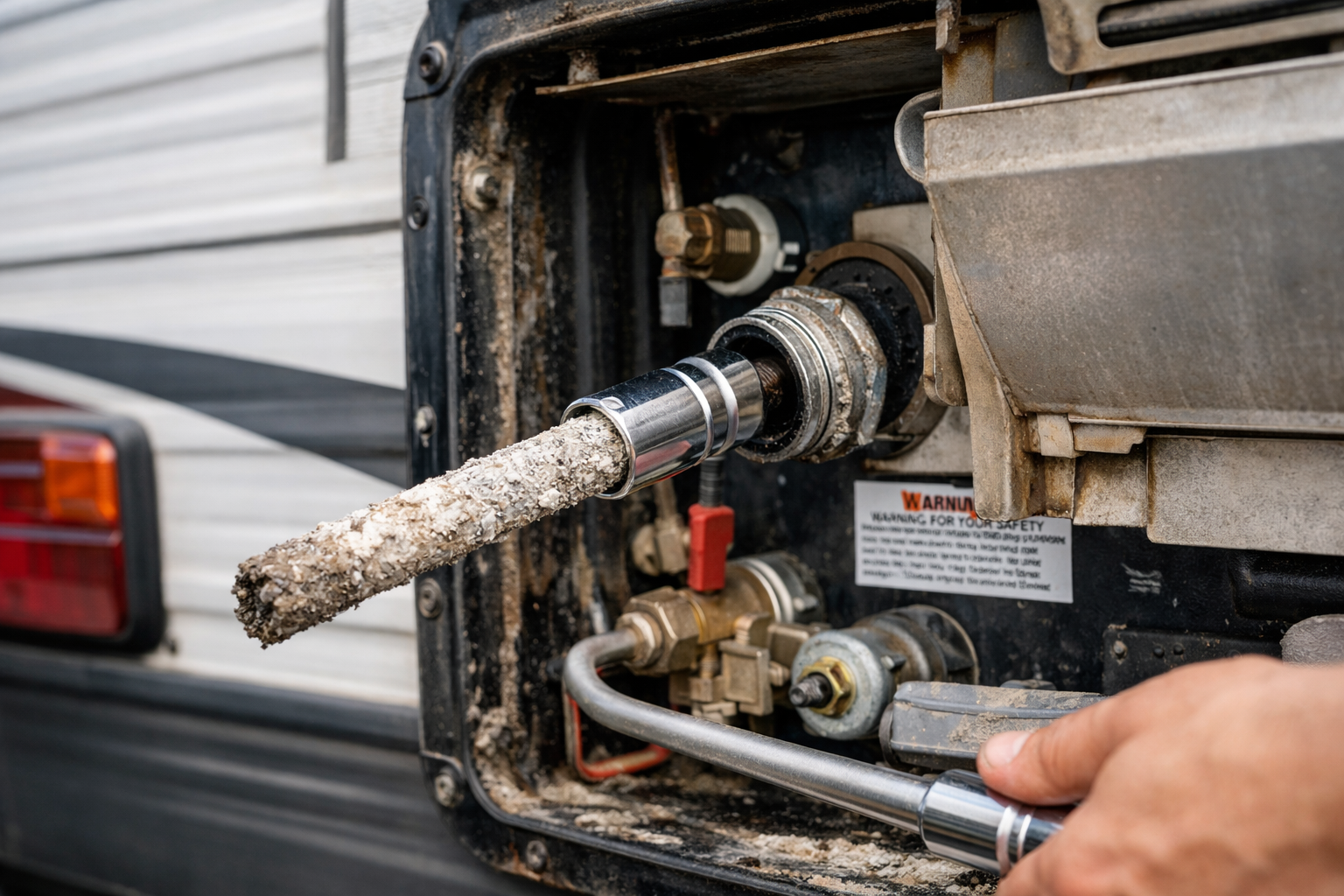

JAYCO EAGLE 321RSTS – Water Heater Anode Rod Replacement

The Jayco Eagle 321RSTS ships with a Suburban water heater that’s reliable enough—until the anode rod gets forgotten. I’ve pulled more than a handful of these tanks apart where the magnesium core had already dissolved completely, leaving nothing but a bare steel wire and a tank wall that’s turned into Swiss cheese from the inside out. By that point, you’re not swapping a rod; you’re looking at a full tank replacement, a heating element that won’t fire anymore, or worse, water seeping into the subfloor cavity where you’ll never find it until the floor starts to soft. The thing is, this failure mode is almost entirely preventable. A $15 anode rod, replaced every couple of years, is the difference between a ten-minute job and a five-figure rebuild. I’m writing this because I’ve watched too many Eagle owners find out the hard way that “out of sight” doesn’t mean “out of danger,” and if you’re here because something’s already gone sideways or you’re trying to stay ahead of it, this walkthrough covers exactly what you need to do to get it right.

How the Anode Rod Sacrifices Itself to Keep Your Tank Alive

The magnesium rod corrodes before the steel tank does—that’s the whole design. Once the core is gone and you’re staring at a hollow wire, your Suburban’s days are numbered and your tank is consuming whatever protection it had left.

Parts and Tools

• Replacement anode rod sized 9.25″ with 3/4″ NPT threads, magnesium construction — check current price
• Adjustable wrench or socket set sized to fit the anode rod hex head (typically 1-1/16″ or 1-1/8″)
• Bucket or shallow pan to catch residual water draining from the tank opening
• Teflon tape or pipe thread sealant rated for potable water systems
• Flashlight or headlamp to inspect the tank opening and old rod condition

Step-by-Step Instructions

Step 1: Turn off the water heater and isolate power

Switch the water heater to OFF at the control panel inside your rig. If your Suburban uses 120V AC ignition, flip the breaker on your main panel. If it’s propane-fired, you can leave the propane valve open but the heater must be off. Wait at least 30 minutes for the tank to cool enough to touch safely. A hot tank will burn your hands and pressurized water can spray out unexpectedly.

Step 2: Locate the anode rod port and photograph the setup

On the 321RSTS, the Suburban water heater sits in the pass-through storage area. The anode rod port is on top of the tank—a hex-head fitting that looks like a bolt. Before you touch anything, take a photo showing the rod’s orientation and any surrounding plumbing. This helps you remember the exact position when reinstalling. Note whether the rod sits flush or recessed; this tells you if corrosion has eaten into the fitting itself.

Step 3: Drain the tank and remove the old rod

Open the low-point drain valve at the bottom of the tank into your bucket. Let it run until water stops flowing—this relieves pressure and prevents spray when you crack the anode fitting. Once drained, position your wrench on the hex head of the anode rod and turn counterclockwise. The rod should come free with steady pressure; if it’s seized, apply penetrating oil and wait 15 minutes before trying again. Do not force it or you’ll strip the fitting.

Step 4: Inspect the old rod and tank opening

Pull the old rod out and examine it. If the magnesium core is completely gone and only a bare wire remains, your tank has been unprotected for months—check the tank interior with your flashlight for white corrosion deposits or pitting on the steel. Look inside the port opening for debris or corrosion buildup. If you see heavy white crusty deposits, wipe them out gently with a cloth on a stick. A corroded port fitting may need replacement; if the threads look damaged, stop and source a new fitting before proceeding.

Step 5: Wrap the new rod and thread it in

Wrap the threads of your new anode rod with 3–4 layers of Teflon tape, wrapping clockwise so the tape doesn’t unwind as you thread it in. Insert the rod by hand first to ensure the threads catch straight—cross-threading here will damage the fitting permanently. Once hand-tight, use your wrench to snug it down firmly but do not over-torque; you’re aiming for snug enough that it won’t weep, not so tight that you crack the fitting or make removal impossible next time.

Step 6: Refill the tank and check for leaks

Close the drain valve at the bottom of the tank. Turn on the water supply to your rig and listen for the tank to fill—it should take 2–3 minutes. Watch the anode rod fitting closely for any drips or seepage around the hex head. If water appears, turn off the supply, let the tank drain again, remove the rod, add one more wrap of Teflon tape, and reinstall. Once dry, turn the water back on and monitor for 10 minutes.

Step 7: Restore power and verify heating function

Turn the water heater back on at the control panel. If it’s propane-fired, you’ll hear the igniter click within 30 seconds; if it’s 120V, the heating element should energize. Wait 15 minutes and feel the hot water line coming out of the tank—it should be noticeably warm. Run a hot tap inside the rig to confirm water temperature is rising. If the heater doesn’t fire or water stays cold, check that the power or propane supply is actually reaching the unit before assuming a larger problem.

What works

• The 9.25″ magnesium rod threads straight into your 321RSTS’s top port with no surprises—length is right, pitch is right, no adapter games.
• You’ll get solid protection for 3–5 seasons out of each rod if you’re winterizing annually and draining the tank the way the manual says to.
• Buying the 2-pack means you’re not stranded in the middle of nowhere waiting for parts to show up when the first one finally gives out.

What doesn’t

• Online shipping timelines fall apart when you’re living on the road and your tank just started leaking—you could be without hot water for a week while you wait.
• The drain valve on a lot of these older Eagles has already seized or corroded in place, which means you can’t empty the tank to swap the rod without tackling the valve first.

I second-guessed the 3/4″ NPT size on my first Jayco because I thought I had a 1/2″ connection, but the spec sheet was right and the rod seated perfectly without forcing. RV Water Heater Anode Rod 2-Pack, 2 Years Warranty – 9.25″ x 3/4″ NPT Premium Magnesium Rv hot water heater anode rod, Suburban RV Water Heater Parts, Long-Lasting Protection
