JAYCO EAGLE 321RSTS – Roof Membrane Leak Repair

Jayco doesn’t print it in the owner’s manual, and a service writer won’t volunteer this information: a roof membrane leak on the Eagle 321RSTS almost never means the membrane itself failed first. What actually happens is an owner spots water staining inside, assumes the rubber is shot, and orders a full membrane replacement—only to discover after installation that water was entering through a compromised vent flashing, a loose antenna base, or a hairline crack in a sidewall joint the whole time. Find the entry point before you touch the membrane. I’ve seen interiors gutted by mold and structural rot that could have been prevented with a proper leak source inspection and thirty bucks worth of quality sealant. Read this section through completely before you order parts or break out a utility knife—because doing the diagnosis right means you’ll seal it correctly the first time, not twice.

UV-Resistant Tape Solutions for Jayco Roof Repairs

After you’ve confirmed the membrane itself is the culprit—and ruled out flashing, vent rings, or seam failures—you need a temporary patch that won’t separate under the intense heat cycling an aluminum Jayco roof experiences. Standard hardware store tape fails because the adhesive can’t handle the temperature swings that come with desert sun and cool nights.

Why this tape works

• Maintains bond integrity through the kind of thermal expansion and contraction that causes ordinary tape edges to curl and lift within a season—you’ll find the perimeter still sealed six months in instead of peeling and leaking.
• Four-inch width bridges small punctures and covers patch boundaries without requiring overlapping strips, which cuts down on the secondary seams where moisture inevitably finds entry.
• Bonds immediately upon contact without needing heat activation or extended cure periods—apply it and you’re road-ready the same afternoon without waiting.

Where this tape falls short

• This is a holding measure only—a gap-filler until you commit to either a complete membrane swap or a full roof coating application; treating it as a permanent solution means buying tape again in twelve months.
• The roof surface must be completely clean and oil-free before application (not surface-wiped; actually degreased with solvent) or adhesion degrades immediately—corner-cutting on prep is the #1 reason these patches separate prematurely.

I’ve had this tape peel up on my own rig at the edges because I didn’t clean the roof hard enough before application, and I had to re-do the whole section—which is exactly why prep is non-negotiable here. CHUANGSEED RV Roof Tape White, 4 Inch X 50 Feet, RV Sealant Tape, Roof Patch Repair Tape for Camper Roof Repair, Trailer Roof Sealant, Stop Camper Roof Leaks, UV-Resistant, Weatherproof,Boat

Parts and Tools

• Roof membrane patch material or UV-resistant repair tape matched to your membrane color (white for most Jayco models) — check current price
• Isopropyl alcohol or acetone for cleaning and degreasing the repair area
• Clean lint-free cloths or paper towels
• Utility knife or sharp scissors for trimming tape to size
• Roller tool or hard plastic squeegee for pressing tape edges and removing air bubbles
• Safety harness and roof ladder rated for RV use if accessing the roof

Step-by-Step Instructions

Step 1: Work safely at height and secure the rig

Park on level ground and engage all stabilizers and wheel chocks. Wear a safety harness rated for fall protection, clipped to a secure anchor point on the roof. Never work alone on an RV roof. If you’re uncomfortable at height, this repair is worth paying a shop to handle. Check weather—do not attempt this in rain, high wind, or temperatures below 50°F, as tape adhesive won’t set properly in cold.

Step 2: Locate and confirm the leak source

From inside, identify the water stain location and mark it with tape on the ceiling. Go to the roof directly above that mark. Look for obvious damage: punctures, cracks, or separated seams in the membrane. Inspect nearby vent flanges, antenna bases, and roof-to-sidewall joints for cracks or lifted sealant. Photograph the damage from multiple angles before cleaning. If you cannot find visible damage, the leak is likely entering through flashing or a vent—do not patch the membrane.

Step 3: Clean and dry the repair area thoroughly

Use a utility knife to gently scrape away any loose membrane material, dirt, or old sealant around the damage. Wipe the area with isopropyl alcohol or acetone on a lint-free cloth, working outward from the damage in a 6-inch radius. Let the surface dry completely—at least 15 minutes in dry conditions. Any moisture or residue under the tape will cause adhesive failure and the leak will return within weeks.

Step 4: Measure and cut the repair tape

For punctures or small cracks, cut a patch at least 3 inches longer and wider than the damage on all sides. Round the corners of your patch with scissors to prevent edges from catching and peeling. For seam failures, cut a strip that spans the entire compromised section plus 2 inches beyond on each end. Lay the cut patch on a clean surface—do not remove the backing yet.

Step 5: Apply the tape with proper adhesion technique

Peel back one corner of the backing and position the tape over the damage. Press that corner down firmly, then slowly peel the backing while pressing the tape down with your other hand, working toward the opposite corner. Use steady, even pressure—do not stretch the tape. Once fully adhered, use a roller or squeegee to press all edges and the entire surface, working from the center outward to eliminate air bubbles.

Step 6: Seal the tape perimeter with compatible sealant

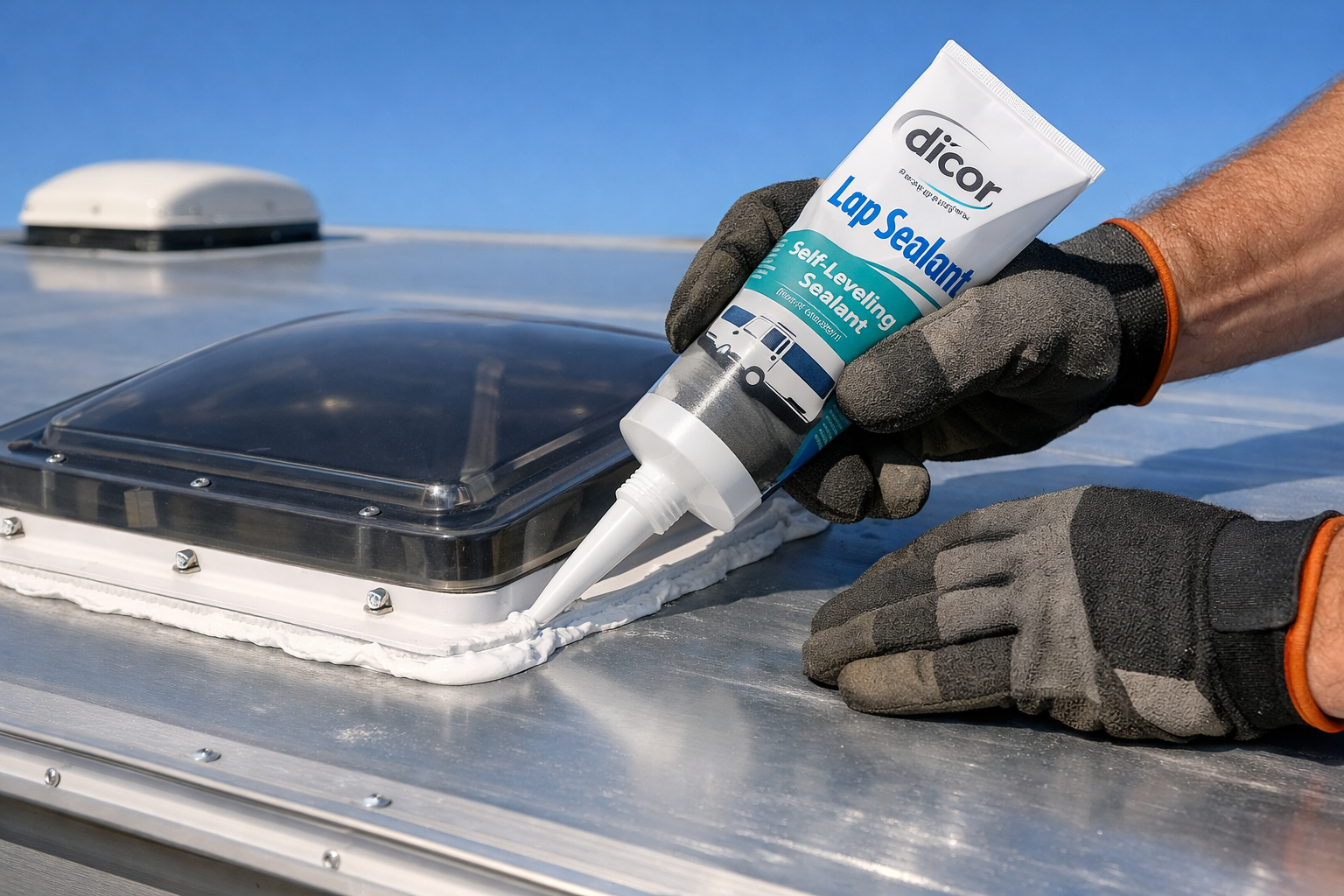

Apply a thin bead of RV-grade roof sealant (Dicor or equivalent) around the entire perimeter of the tape, especially at the corners and edges. This prevents water from wicking under the tape edges during thermal cycling. Smooth the bead with a wet finger or caulk tool. Allow the sealant to cure per manufacturer instructions—typically 24 hours—before exposing the roof to rain or heavy sun.

Step 7: Test the repair after curing

Once sealant is fully cured, monitor the interior ceiling during the next rain or use a garden hose to spray the repair area from above while someone watches inside for leaks. Start with light spray 10 feet away, then move closer. If water appears inside, the tape edges have failed or the damage extends beyond the patch—you’ll need to remove the tape, clean thoroughly, and apply a larger patch or call a professional for membrane replacement.
