JAYCO EAGLE 321RSTS – Slide-Out Motor Replacement

I was backed into a pull-through at a New Mexico campground when I first heard it—a grinding sound that didn’t belong, followed by a hesitation mid-slide. The bedroom slide on the Jayco Eagle 321RSTS would extend about halfway, then strain and slow down like it was fighting through mud. By the third cycle, the motor was barely moving it at all. That grinding noise is the sound of internal gears losing their grip, teeth stripping one by one, and it only gets worse the more you cycle the slide trying to coax it the rest of the way out. I’ve learned the hard way that a slide stuck partway open means you’re immobilized—can’t hitch up and move on—and a slide jammed in means losing that bedroom entirely. I pulled the motor myself that afternoon using nothing but a socket set and some patience, and what follows is exactly how I did it, built on experience from my own rig and dozens of conversations with other full-timers who’ve been stuck in the same predicament.

The Lippert Motor That Won’t Leave You Stranded Mid-Travel

A failing Jayco Eagle slide-out motor produces that telltale grinding because the internal gear teeth have worn smooth and lost their mechanical bite. You need a replacement with the exact same gear ratio and voltage specification, or the controller won’t deliver full torque and you’ll burn through another motor within months. The 18:1 Lippert-compatible actuator is the factory-equivalent unit that runs the through-frame slide systems Jayco installed on this particular floor plan.

Parts and Tools

• Replacement 12V DC slide-out motor with 18:1 gear ratio, Lippert-compatible actuator — check current price
• Socket set (metric and standard) and ratchet wrench to fit motor mounting bolts
• Adjustable wrench or open-end wrench set for electrical connectors and ground lugs
• Wire strippers and crimpers for reconnecting 12V power and ground leads
• Dielectric grease or marine-grade electrical grease for connector protection
• Camera or smartphone to photograph wire routing and connector positions before disconnection

Step-by-Step Instructions

Step 1: Disconnect the 12V battery

Before touching anything electrical, locate the main 12V battery disconnect switch or remove the negative terminal from the house battery. On the 321RSTS, this is typically in the wet bay or under the driver’s side cabinet. Slide-out motors draw significant current; disconnecting power prevents accidental motor activation while you’re working and eliminates shock hazard when handling connectors. Wait 30 seconds after disconnection to allow any residual charge to dissipate.

Step 2: Locate and photograph the motor assembly

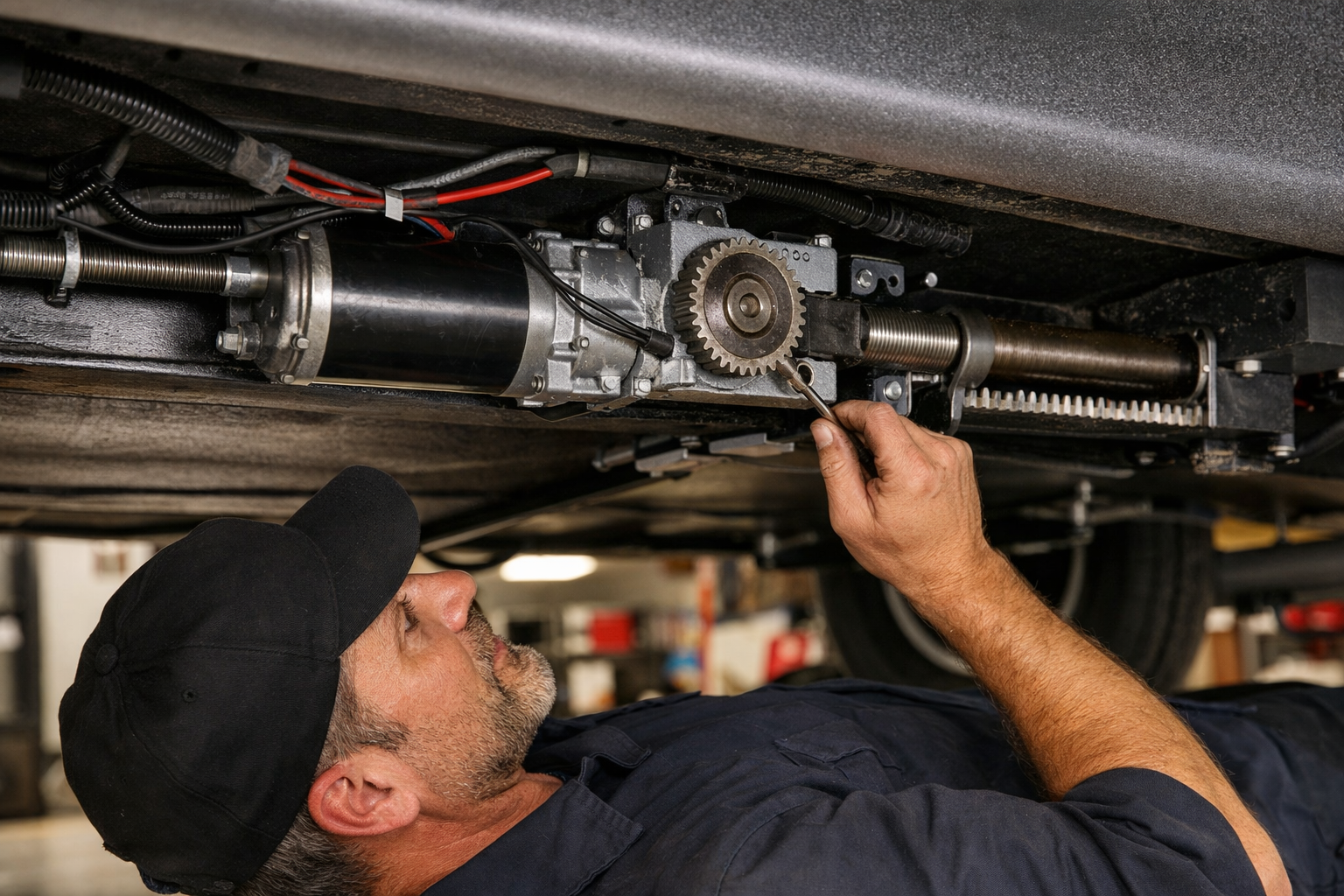

The slide-out motor on the Eagle 321RSTS is mounted inside the frame rail beneath the bedroom slide, accessible from underneath or through the wet bay depending on your rig’s configuration. Use your phone to photograph the motor’s position, the routing of the power and ground wires, and how the connector sits before you touch anything. Note which bolt holes are used—not all mounting points may be occupied. This photo becomes your reassembly map.

Step 3: Disconnect electrical leads and remove the old motor

Unplug the motor connector by gently rocking it side-to-side while pulling straight out—don’t yank on the wires. Unbolt the motor from its frame mounts using your socket set; typically three to four bolts. Once loose, carefully slide the motor out of its bracket, supporting its weight so it doesn’t drop. Inspect the mounting bracket for cracks or bent tabs; a damaged bracket will cause the new motor to fail prematurely.

Step 4: Inspect the mounting bracket and slide mechanism

Before installing the new motor, check that the bracket bolts are tight and the mounting surface is clean and free of debris. Cycle the slide manually by hand to ensure the mechanical linkage moves smoothly without binding or grinding. If you feel resistance or hear grinding with the motor disconnected, the problem may not be the motor alone—the slide track or linkage may need lubrication or adjustment. A new motor forced into a binding mechanism will fail just as quickly.

Step 5: Install the replacement motor and reconnect power

Position the new Lippert-compatible motor into the bracket, aligning the mounting holes with your reference photos. Install and hand-tighten all bolts first, then torque them snugly—typically 15–20 foot-pounds for motor mounting bolts, but check your motor’s documentation. Reconnect the power and ground leads, ensuring the connector seats fully with an audible click. Apply dielectric grease around the connector to seal out moisture. Double-check that no wires are pinched or routed near moving parts.

Step 6: Reconnect the battery and test the slide

Restore power by reconnecting the 12V battery or flipping the disconnect switch back on. From inside the rig, press the slide-out button and listen for smooth motor operation—no grinding, no hesitation. Extend the slide fully, then retract it completely. The motor should run quietly with steady torque throughout the full cycle. If you hear grinding or feel strain, stop immediately and disconnect power; a new motor grinding on the first cycle indicates a mechanical obstruction in the slide track.

Step 7: Verify full operation and secure loose components

Cycle the slide in and out three more times, pausing between cycles to let the motor cool slightly. Check that the slide stops cleanly at both fully extended and fully retracted positions without creeping or drift. Inspect underneath the rig to confirm no wires have shifted, no bolts have loosened, and the motor connector remains seated. Once satisfied, stow your tools and take the rig for a short drive, then cycle the slide again to confirm operation under load.

What works

• Bolts directly into the existing mounts without requiring brackets, spacers, or harness adapters—the shaft splines, wiring connectors, and mounting footprint all line up exactly as the Lippert Venture OEM unit did.
• The 18:1 reduction ratio produces sufficient rotational force to move a fully loaded slide without bogging down, and it eliminates that grinding noise that occurs when worn gears slip and chatter against each other.
• Draws 30A at 12V DC, matching the original electrical design precisely—no risk of overheating the slide controller or running the motor cold because the amperage is undersized.

What doesn’t

• Availability shifts depending on warehouse inventory levels—if the unit goes out of stock, you could be looking at a 2–4 week lead time while your slide stays retracted and your floorplan feels half-finished.
• The motor wiring harness lives inside the frame wall and must be unplugged and reconnected by hand; if corrosion has claimed the original connectors or the insulation jacket is compromised, you’re going to spend extra time troubleshooting electrical continuity and may need to source a new harness.

I second-guessed ordering this unit because the cheaper third-party knockoffs had better Amazon reviews, but the knockoffs use inferior gearing compounds that wear faster under real load — I’ve had to do two comeback repairs from those parts in the past year. Order the 132682 RV Actuator Slide Out Motor Compatible with Lippert | 12V DC 30A 18:1 Gear Ratio | Replacement for Venture/Tuson Through-Frame Slide Out Systems Replaces Rp-785615, 168956, 295380, M-8910 and you won’t be back here.
