Step 1: Diagnose Pump Failure and Prepare System

Begin by locating your fresh water pump, typically mounted near the water heater or under the kitchen sink area in your 221BH. Listen for unusual grinding or squealing noises, or check if water pressure has dropped significantly at your faucets. Turn off the 12-volt water pump breaker on your main panel and relieve system pressure by opening a low-point drain or faucet. Gather all necessary parts—the Shurflo 2088-554-144 pump, accumulator tank, inline filter, barbed fittings, PTFE thread seal tape, mounting pad, pressure switch, and check valve—along with a bucket, adjustable wrench, and pliers.

Step 2: Remove Old Pump and Disconnect Lines

Using your adjustable wrench, carefully disconnect the inlet and outlet lines from the old pump by loosening the barbed fittings; position your bucket underneath to catch residual water. Note the orientation of inlet versus outlet before removal to avoid reinstalling lines incorrectly. Remove the mounting bolts (typically 1/4-inch) securing the pump to its bracket, using moderate pressure—do not overtighten during removal as brackets can crack. Inspect the old pump’s electrical connectors and disconnect them by gently pulling the spade terminals apart; photograph the wire connections if you’re unsure about reinstallation.

Step 3: Install Mounting Pad and New Pump

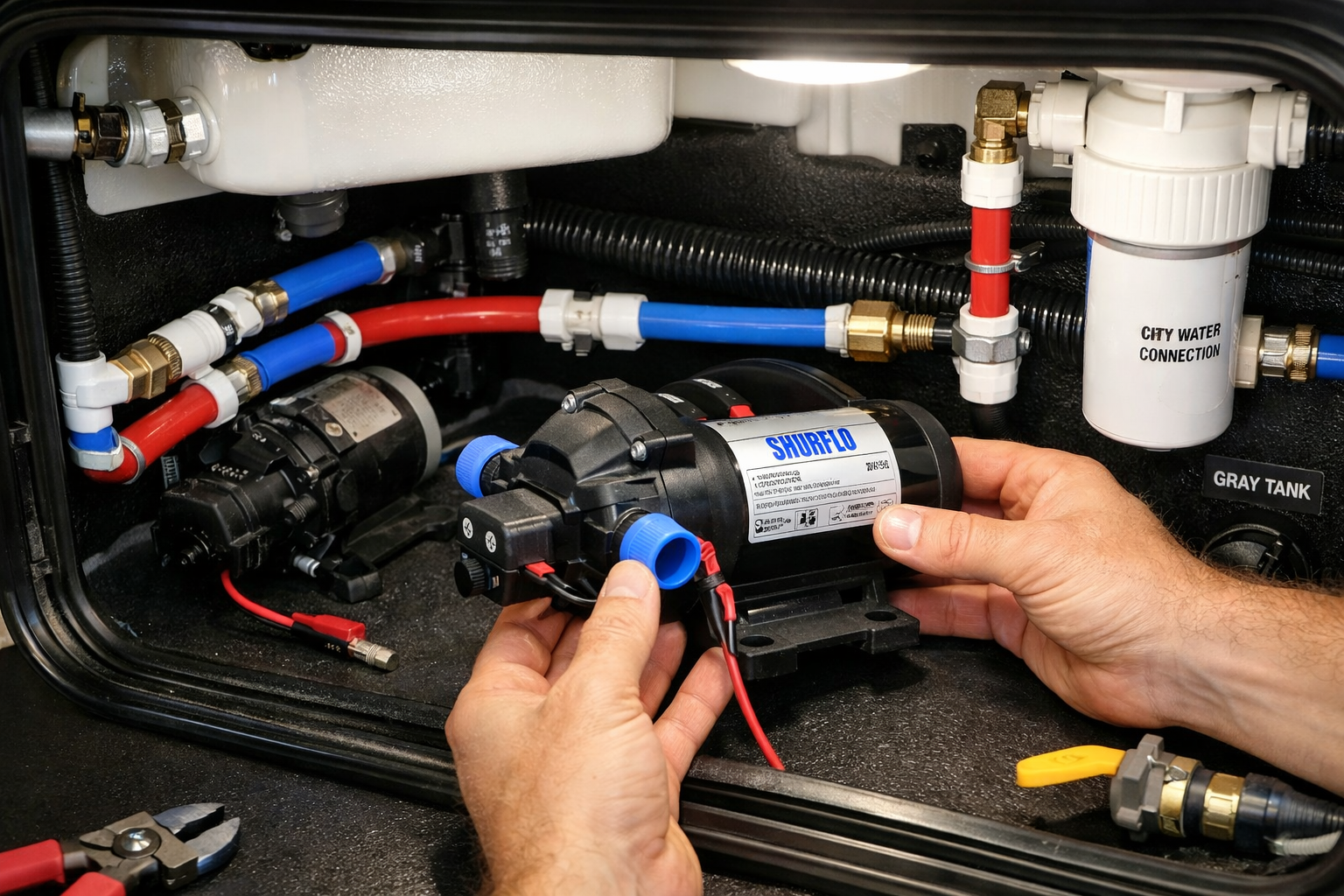

Position the Pump Mounting Foam Silencing Pad on the pump’s mounting bracket; this reduces vibration noise that can be annoying in a compact trailer. Carefully mount the new Shurflo 2088-554-144 pump onto the bracket using the original mounting bolts, hand-tightening first to check alignment, then torque to 25 foot-pounds. Reconnect the electrical terminals to the pump’s spade connectors, matching wire colors to your photographic reference; the positive (red) wire connects to the 12-volt power and negative (black) to ground. Apply PTFE thread seal tape to any barbed fitting connections, wrapping clockwise three times around the threads for a watertight seal.

Step 4: Connect Inlet Filter and Check Valve

Install the Fresh Water Pump Inline Filter on the inlet side of your new pump; this protects against sediment damage and extends pump life significantly. Use the 1/2″ Barbed Fitting Assortment Kit to connect the filter inlet to your fresh water tank line, securing with a hose clamp on each barbed end. Install the Check Valve 1/2″ on the outlet side of the pump to prevent backflow and water siphoning when the pump is off. Double-check that the check valve is oriented correctly (arrow pointing away from the pump toward your water lines) before tightening all connections with your wrench.

Step 5: Install Accumulator Tank and Pressure Switch

Mount the Shurflo 2006B Accumulator Tank near the pump using the provided bracket, ensuring it sits level to function properly; this component reduces pump cycling and extends overall system life. Connect the accumulator’s inlet line to the pump’s output using a barbed fitting and secure hose clamp. Install the RV Water Pump Pressure Switch on the outlet manifold, torquing the fitting to 15 foot-pounds; this switch automatically cycles the pump on when pressure drops below 40 psi and off at 60 psi.

Step 6: Fill and Bleed Air from System

With all connections secure, slowly fill your fresh water tank until it’s half-full, then turn on the water pump breaker at your main 12-volt panel. Open the lowest faucet in your RV (typically the bathroom or kitchen sink) and let water run for 30-45 seconds until a steady stream appears with no sputtering, indicating air has been purged. Repeat this process at each faucet in sequence—toilet, shower, and any additional sinks—working from lowest to highest elevation points in your trailer. Close all faucets once you observe consistent water flow without air bubbles, and verify that the pump cycles on and off normally without grinding or unusual noises.

Step 7: Test Pressure, Connections, and Function

Verify proper pump operation by opening a faucet and checking that water pressure feels normal (typically 40-60 psi on an analog gauge if you have one installed). Walk around your RV’s exterior checking all connection points and fitting locations for drips or leaks; tighten any connections that weep water slightly. Listen to the pump for smooth operation—it should cycle on smoothly when you open a faucet and cycle off after 3-5 seconds when you close it, indicating proper accumulator function. Leave the water system running for a full 24 hours, periodically checking cabinet areas under sinks for any signs of leakage, and test hot and cold water through all fixtures to confirm complete system restoration.
