Thor Freedom Traveler – AC Capacitor & Fan Motor Service

I’ve got my workbench set up in the shade behind bay two, and this is where I spend half my summer — sitting on a stool with a clamp and a multimeter, pulling dead capacitors out of Thor Freedom Travelers one after another. The pattern never changes: owner calls, says the AC hummed once and quit, or it’s running but pushing nothing but warm air and the breaker keeps tripping. I walk up to the unit, listen for that labored, struggling motor sound on startup, and nine times out of ten I already know what I’m pulling out. A weak or failed AC capacitor doesn’t announce itself with drama — it just silently stops holding the electrical charge that kicks the fan motor into gear. The compressor tries to fire, the fan motor strains against a capacitor running on fumes, and owners end up convinced they need a whole new AC unit. But here’s the thing: if you can identify what’s actually dying — the capacitor or the motor itself — and you’re willing to spend thirty minutes on a $30 replacement, you’ve just dodged a $500+ service call and learned a repair that pays for itself the first time you use it. This guide shows you how to tell the difference, pull the bad capacitor safely, and drop in the right replacement so your Freedom Traveler’s AC actually works again.

Swapping Out the Capacitor That Restores Dometic Performance

When your Thor Freedom Traveler’s AC hesitates at startup, the fan crawls instead of spins, and cold air stops coming out, the capacitor is usually the culprit — it’s responsible for storing and releasing the surge of electricity the motor needs to fire up and run at full speed. If the capacitor has lost its charge, nothing else upstream will work right. This single component failure is the most frequent cooling complaint on Freedom Travelers, and replacing it costs pocket change compared to the alternative.

Parts and Tools

• Replacement dual run capacitor matched to the microfarad and voltage rating on the old one (typically 60/5 MFD at 370V for Dometic units) — check current price
• Digital multimeter capable of reading AC voltage and resistance
• Needle-nose pliers or terminal puller for safe capacitor lead removal
• Insulated screwdriver set (Phillips and flathead)
• Discharge tool or jumper wire to safely bleed residual charge from the old capacitor
• Replacement AC fan motor if testing confirms the motor itself is failed — check current price

Step-by-Step Instructions

Step 1: Kill power to the AC unit at the breaker

Locate your RV’s main electrical panel and flip the breaker controlling the rooftop AC unit to OFF. Wait five minutes to allow any residual charge to dissipate. This is non-negotiable—capacitors hold voltage even when power is cut, and a shock from one will drop you. Before you touch anything, take a photo of the capacitor terminals and their wire connections so you know exactly where each lead goes when reassembling.

Step 2: Access the AC unit’s control board and capacitor

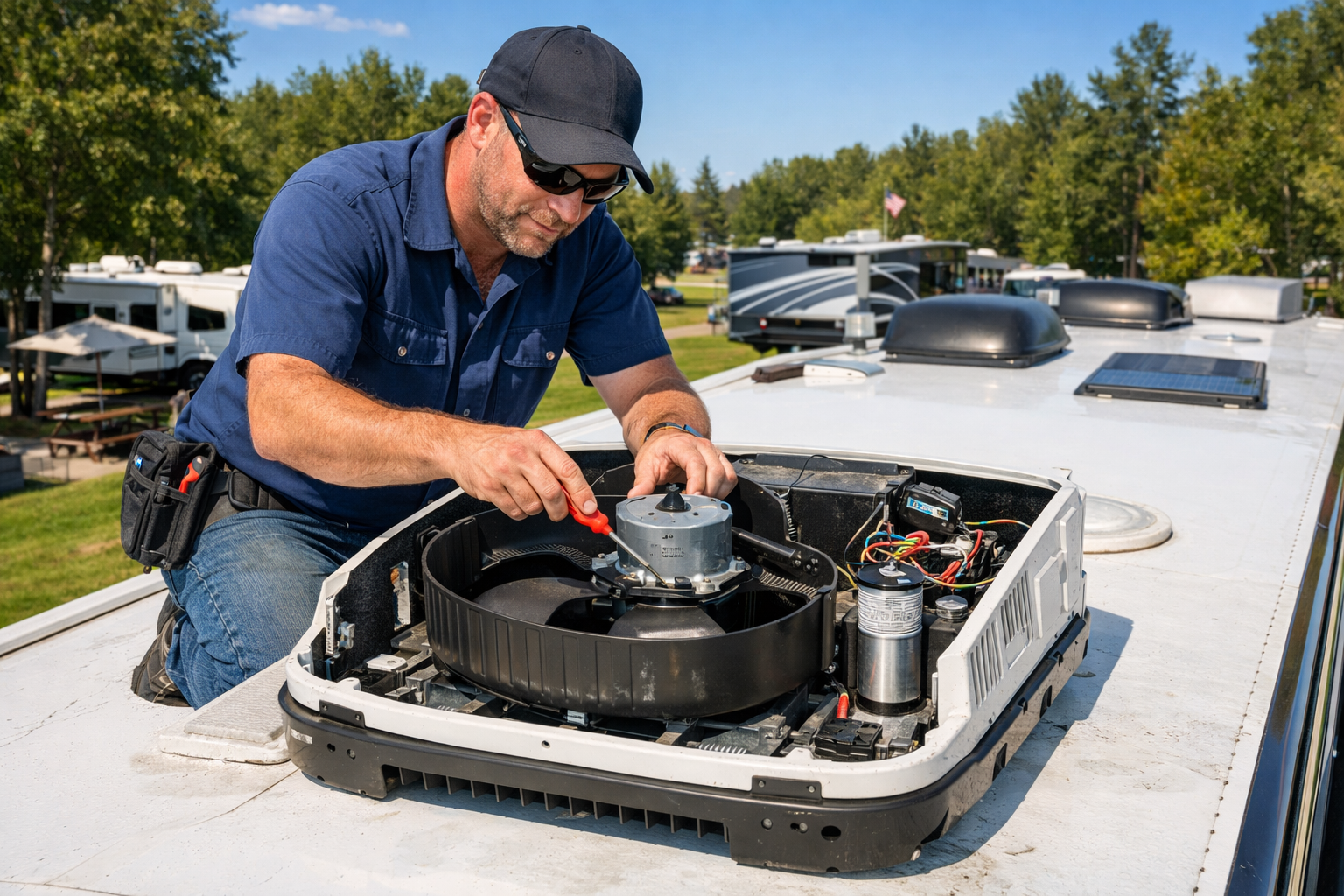

Climb onto the roof and locate the access panel on your Dometic unit—usually a plastic cover held by two or three screws on the side facing the interior of the RV. Remove the screws and set them aside. Slide or lift the panel away. Inside you’ll see the capacitor: a cylindrical component about the size of a AA battery, mounted vertically or horizontally near the motor terminals. Take a second photo showing the exact position and wire routing before you disconnect anything.

Step 3: Safely discharge the old capacitor

Even with power off, the capacitor holds a charge. Use an insulated screwdriver or a jumper wire to bridge the two terminals together for two seconds—you may see a small spark, which is normal and means the capacitor had stored energy. This discharge step prevents a painful shock and protects the circuit board. Do not skip this step regardless of how dead the unit seems.

Step 4: Test the capacitor with a multimeter to confirm failure

Set your multimeter to the capacitance setting (usually marked with a capacitor symbol). Touch the probes to the capacitor terminals. A healthy capacitor reads close to its rated value (60 MFD for your unit). A reading of zero, or wildly lower than rated, confirms the capacitor is dead. If the reading is close to spec, the motor itself may be the problem—test it next before ordering parts.

Step 5: Test the motor windings if the capacitor reads good

Switch your multimeter to resistance mode (ohms). Disconnect the motor leads from the capacitor terminals and measure resistance across the motor windings. A healthy motor reads between 5 and 20 ohms depending on the winding. An open circuit (infinite resistance) or a very low reading (under 2 ohms) indicates a failed motor winding. Document this result—it tells you whether you’re replacing the capacitor alone or the motor too.

Step 6: Remove the old capacitor and install the new one

Using needle-nose pliers, gently pull each wire terminal off the capacitor posts. Do not yank—rock the terminal side-to-side as you pull to avoid bending the post. Note the wire colors and positions. Unscrew or unclip the capacitor mounting bracket and remove the old unit. Install the new capacitor in the same orientation, secure it with the bracket, and press the wire terminals back onto the posts in their original positions. Double-check that each connection is snug and fully seated.

Step 7: Restore power and test the AC for proper operation

Close the access panel and secure it with screws. Climb down from the roof and return to the breaker panel. Switch the AC breaker back to ON. Wait ten seconds, then turn on the AC unit from inside the RV. Listen for the fan motor to spin smoothly and quickly—no labored humming or grinding. Check that cold air flows from the vents within 30 seconds. If the unit still won’t start or runs warm, the motor is likely failed and needs replacement.

What works

• Motor spins at full power immediately after installation — you’ll notice the change in speed and sound right away, often before the cooling cycle has even begun.
• Exact physical and electrical match for Dometic 3312195.000; fits without modification, no part number cross-referencing, no second-guessing on the microfarad rating.
• Holds its charge over many seasons of use — the original design gives out around year three or four, but this replacement stays stable through years of cycling.

What doesn’t

• Won’t salvage a motor that’s already locked up or has internal burns — those require replacing the entire motor assembly, not just swapping the capacitor.
• The old capacitor must be safely discharged before removal; even a powered-down unit can still hold enough charge to deliver a serious shock.

I once second-guessed myself halfway through installation thinking the fan still wasn’t spinning fast enough, only to realize I hadn’t seated the capacitor terminals all the way home — once I pushed them flush, the AC ran like it came off the line. Fits for Dometic 3312195.000 Air Conditioner RV AC Motor Capacitor 60/5 MFD, Heavy Duty Air Conditioner Capacitor Replacement, Compatible with Dometic 3312195000 RV Air Conditioner Models
