Tiffin Wayfarer – Furnace Igniter & Control Board Replacement

I was three weeks into November somewhere near the Utah border when the Wayfarer’s furnace just stopped cooperating. Nights were dropping into the low 30s, and I’d wake up to that telltale clicking — the igniter trying to spark but nothing catching. Before I wasted a service call or started second-guessing myself with dealer parts, I realized something: this exact failure pattern is one of the oldest tells in full-time RV ownership. The igniter electrode cracks from temperature stress, the control board quits detecting spark, and suddenly you’ve got a paperweight where your heat source used to be. But here’s the thing — I’ve pulled and swapped enough of these units to know it’s almost never as dire as it feels at 2 AM in the cold. That cracked electrode, that failed spark signal, it’s a three-part puzzle, and once you solve the first piece, everything else clicks into place. This breakdown shows you exactly which parts actually fail, how to confirm which one is gutting you, and how to get your furnace running hot again without the dealer markup or the guessing game.

The Electrode Assembly That Cuts Through “No Heat” Diagnosis on Tiffin Wayfarer Furnaces

Suburban furnace igniters split and degrade from repeated heating cycles — particularly on long-in-the-tooth Wayfarers that pull hard through seasonal swings — and once the electrode fractures, the control board loses spark confirmation, leaving you without warmth and without a fault indication. This spark electrode is your diagnostic pivot point: replace it first, and you’ll either see immediate ignition or you’ve narrowed your problem down to what’s happening below on the control board side.

What performs

• Direct swap into SF-series Suburban ignition systems — the connector assembly interfaces straight into your board with zero modifications or intermediate connectors required.
• You’ll get audible spark the moment ignition cycle kicks in; that acoustic feedback tells you electrode contact is solid and your board is still firing the signal down the line.
• Eliminates throwing cash at a control board replacement when your real culprit is actually sitting in your hand.

What doesn’t work as well

• Delivery windows from independent distributors balloon to 2–3 weeks; if you’re stranded mid-winter, that timeline becomes a real problem.
• A few aftermarket versions come with connector strain relief that’s a touch loose; make sure your plug seats all the way in before you close the furnace enclosure back up.

I’ve had this igniter arrive and watched the spark gap test fail because the wire wasn’t fully seated in the connector — thirty seconds of wiggling fixed it, but that moment of doubt cost me an hour of troubleshooting when I should have been on the road. Fit For Suburban RV Furnace Parts 232286,Single Probe Gas Furnace Igniters Electrode with Wire Assembly, Camper Furnace For Suburban 232286 Above 934701426 SF-20, SF-25, SF-30, SF-35 (SF Series)

Parts and Tools

• Replacement igniter electrode assembly with wire harness, matched to your Suburban furnace model (typically 232286 single-probe for Wayfarer units) — check current price
• Suburban furnace control board replacement unit specific to your Wayfarer’s furnace model year and wiring configuration
• Needle-nose pliers or tweezers for handling small wire connectors and electrode positioning
• Multimeter capable of reading DC voltage and continuity for spark signal verification
• Small flashlight or headlamp for visibility inside the furnace combustion chamber and control board area
• Wire strippers and electrical tape for any harness repairs or reconnections

Step-by-Step Instructions

Step 1: Kill power to the furnace at the main panel

Locate your RV’s 12V distribution panel and switch off the furnace circuit breaker completely. Wait 30 seconds to ensure any residual power drains. This prevents accidental spark or shock when handling the igniter electrode and control board connectors. Take a photo of the breaker panel with the furnace breaker labeled so you remember which one controls heat.

Step 2: Access the furnace combustion chamber and locate the electrode

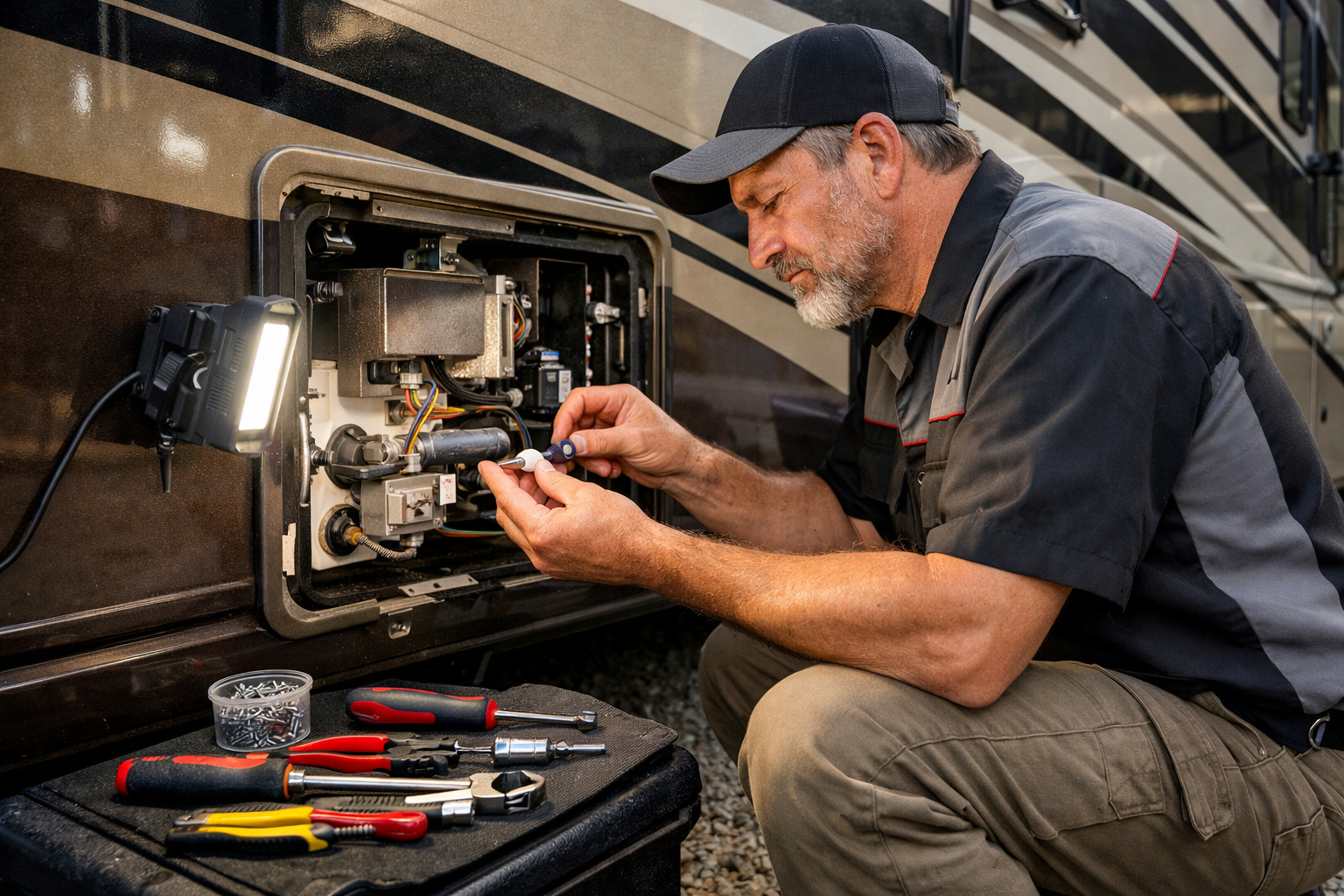

Open the furnace access panel on your Wayfarer—typically mounted on the exterior wall or accessible from inside a cabinet. You’ll see the burner assembly and the igniter electrode protruding into the combustion chamber. Photograph the electrode position and the wire routing before touching anything. Look for visible cracks, discoloration, or a broken tip on the electrode itself.

Step 3: Disconnect the igniter wire harness and remove the old electrode

Gently pull the wire connector away from the igniter terminal. Use needle-nose pliers to carefully unscrew or unclip the electrode assembly from its mounting bracket—usually a single fastener. Note the exact orientation and gap distance before removal. Set the old electrode aside; you’ll compare it to the new one to confirm the failure.

Step 4: Install the replacement electrode and reconnect the harness

Position the new electrode assembly in the exact same location and orientation as the original. Secure it with the fastener, ensuring it sits at the correct gap from the burner (typically 3–4 mm, but verify against your furnace manual). Reconnect the wire harness firmly until you hear or feel a click. Do not force the connector; it should seat smoothly.

Step 5: Test ignition and spark signal before reassembling

Restore power at the breaker. Set the furnace thermostat to heat and listen for the igniter clicking. You should hear a sharp spark sound within 3–5 seconds. If spark returns immediately, the electrode was your culprit and you’re done. If clicking continues without ignition, turn off power again and proceed to control board diagnosis.

Step 6: Diagnose the control board if electrode replacement didn’t restore spark

With power off, locate the furnace control board—usually a small circuit board mounted near the burner assembly or in a control box. Use your multimeter to check for 12V DC at the igniter connector when power is restored and the thermostat calls for heat. If voltage is present but no spark occurs, the electrode may be defective; if no voltage appears, the control board is not sending the signal and needs replacement.

Step 7: Replace the control board if spark signal is absent

Power off the furnace. Photograph all wire connections to the old control board before disconnecting anything. Unplug each harness carefully and note its position. Remove the old board and install the replacement, matching each connector to its original port. Reconnect power and test the thermostat call for heat. You should hear the igniter spark within seconds and the burner should light.

Step 8: Verify heat output and close up the furnace

Once the burner ignites, let the furnace run for 2–3 minutes and feel warm air flowing from the vents. Check that the thermostat cycles the burner on and off normally as the rig reaches temperature. If all is working, close the furnace access panel securely and restore the breaker to its normal position. Your Wayfarer should now hold heat through cold nights.
