WINNEBAGO REVEL 44E – Fresh Water System Service and Cassette Toilet Maintenance

Fresh Water System Service and Cassette Toilet Maintenance

I have a corroded quick-connect fitting sitting on my workbench right now — pulled it from a Revel I picked up last spring. It’s weeping just enough that the stain on the subfloor underneath tells the real story: nobody on that rig had checked the water system in at least eight months. That single fitting cost the previous owner probably $2,000 in hidden damage by the time mold had worked into the wall cavity and the fresh water pump was short-cycling constantly trying to maintain pressure it could never hold. The fresh water plumbing and cassette toilet on a Winnebago Revel 44E are two of the first systems I tear into when evaluating a used Class B — not because they’re complicated, but because their failures happen silently and in tight spaces where water damage becomes a structural problem before you smell it. I’ve learned exactly what to look for, what wears out first, and how to catch these issues before they turn a solid rig into a money pit. This guide walks you through both systems with the same diagnostic mindset I use when I’m standing in someone else’s van trying to figure out what they missed.

Parts Needed:

• SHURFLO 4008-101-A65 New 3.0 GPM RV Water Pump Revolution, 12V (Part Number: Shurflo 4008-101-E65 or Flojet 04406-143A) ($69.95)
• Shurflo 255-213 RV Replacement Water Pump Strainer | 1/2 Twist-On Pipe Strainer (Part Number: Shurflo 255-215) ($7.85)
• SHURFLO 94-237-00 Series 2088 Check Valve Kit (Part Number: Shurflo 94-590-01 check valve kit) ($19.35)
• LEDBarz 12524 RV Toilet Seal Closet Bolt kit Replacement (Part Number: Thetford 23721 or Dometic seal kit) ($9.99)

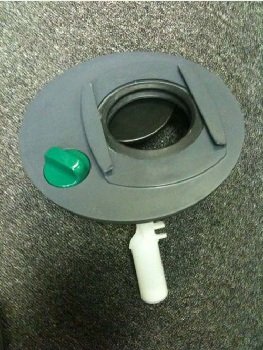

• Toilet Flush Mechanism | For Cassette C-402C / C-402X / C-403L Permanent Toil… (Part Number: Thetford cassette toilet parts) ($169.45)
• Camco TastePURE Spring Fresh Water System Cleaner and Deodorizer for RV and M… (Part Number: Camco 41190 or equivalent) ($22.79 ($0.18 / fluid ounce))
• Camco EvoFlex2 25-ft Drinking Water Hose – RV Drinking Water Hose Reinforced … (Part Number: Camco 20ft drinking water hose) ($22.92)
• VOTMELL 4 Rolls 1/2 Inch(W) X 520 Inches(L) Teflon Plumbers Tape,Pipe Sealing… ($3.59 ($0.90 / count))
• Super Lube 92003 Silicone Lubricating Grease with PTFE, 3 oz Tube, Translucen… (Part Number: Super Lube 92003) ($18.49 ($6.16 / ounce))
• Camco Tastepure RV Water Filter – Advanced RV Inline Water Filter with Flexib… (Part Number: Camco 40043 TastePURE) ($20.92)
• Himaweek RV Water Inlet Connection City Water Fill Inlet Flange Brass with Ch… ($15.99)
• SHURflo 182-200 Pre-Pressurized Accumulator Tank,Black, 9.1″ x 4.8″ x 3.8″ (Part Number: Shurflo 182-200) ($71.89)

After years on the road, I’ve swapped out enough water pumps to know that not all of them are created equal — and on the Revel 44E, you don’t have room for a pump that’s going to rattle your teeth loose at 2 a.m. The SHURflo 4008-101-A65 3.0 GPM Revolution 12V water pump runs noticeably quieter than the standard 2088 series, and the self-priming capability means you’re not babysitting it during startup. Just make sure you match your hose barb fittings before you button everything back up — it’ll save you a second trip under the van.

I keep this in my repair kit without exception: the SHURflo 255-213 twist-on inlet strainer is one of those three-dollar parts that can save a three-hundred-dollar pump. On the Revel’s fresh water system, any debris that gets pulled from the tank goes straight to the pump first — and a clogged or missing strainer is the number one reason these pumps fail prematurely. The half-inch twist-on design makes inspection and cleaning fast, even in tight quarters. Replace it every season at minimum, and always check it first when your flow pressure starts dropping.

Don’t overlook the check valve when you’re servicing the fresh water system — it’s the part most people skip and then wonder why their pump keeps short-cycling. The SHURflo 94-237-00 Series 2088 check valve kit is a direct fit and takes about ten minutes to swap out. A failing check valve lets pressure bleed back through the system, which forces the pump to kick on repeatedly even when no one’s running water — that’s wasted battery and unnecessary wear. If your pump has been cycling on its own, start here before assuming the pump itself is the problem.

Step 1: Water Pump Diagnosis and Location

Before you buy a replacement pump, confirm that the pump itself is actually the culprit. Fill your fresh water tank all the way, then engage the water pump switch (you’ll usually find this toggle near the galley area or mounted on your electrical panel). Listen closely — the pump motor should produce an audible hum or whir and generate pressure within 10-15 seconds, then fall silent as soon as it reaches the target pressure. Open a faucet and observe the flow: you should see solid pressure between 30-50 PSI, and the pump should fire back up automatically as soon as that pressure drops, then shut off once pressure recovers. If your pump runs constantly without ever building pressure, you’ve got a leak hiding somewhere in the plumbing or a failed check valve inside the pump itself. If the pump doesn’t run at all, verify the fuse (typically 15 amps) and confirm that 12V is actually reaching the pump terminals. Power present but pump won’t start means the motor is toast. For the Revel specifically, look for the pump in the rear storage zone, underneath the dinette seat, or tucked into a compartment next to the fresh water tank. You’ll recognize it by the rubber vibration isolators underneath, the two water line connections (one labeled “IN” from the tank, one “OUT” to your fixtures), and a pair of electrical leads soldered or crimped to the motor terminals.

Step 2: Water Pump Removal and Replacement

Once you’ve confirmed the pump is the problem, kill power by flipping the pump switch off and yanking the fuse. Open every faucet in the system to dump any residual pressure that’s trapped in the lines. Now identify which connection is inlet and which is outlet — the inlet (coming from your tank) will be marked with “IN” and an arrow pointing at it, while the outlet (going to your fixtures) will show “OUT”. Grab some towels and a bucket because you’re about to lose water: the Revel typically uses quick-disconnect fittings on the pump, so push the collar back toward the pump body while simultaneously pulling the line away to disconnect. If yours has older barbed fittings with hose clamps wrapped around them, just break loose the clamp screws with a screwdriver and yank the hose. Plan on 1-2 cups of water spilling out when you do this. Take a photo of your electrical connections so you remember which wire goes where (positive and negative), then disconnect them. Remove the bolts holding the pump to its mount and lift the assembly clear.

Step 3: New Pump Installation and Testing

Before you bolt down your new pump, check whether the inlet strainer is already installed on it — if not, add it now because that screen is your only defense against debris clogging the pump. Set the new pump into the exact footprint where the old one sat, making sure the inlet and outlet ports face the right direction so your existing water lines can reach them easily. Tighten the mounting bolts snug but not gorilla-tight, since crushing the rubber isolation feet will defeat their purpose and create vibration noise. Reattach your water lines to their correct ports: for push-fit connectors, insert the line firmly until you feel it seat and click home, then test it by tugging — it should stay put. For barbed fittings, slide the hose all the way onto the barb and secure it with a stainless steel clamp that you tighten until it’s snug but not deforming the hose. Reconnect your electrical wires, matching polarity exactly as you noted in your photo. Now comes the moment of truth: reinstall your fuse, flip the pump switch on, and watch what happens. The pump should build pressure without any leaks weeping from your connections. Open faucets one at a time to purge air from the lines — you’ll get sputtering and spitting until the air clears out, then smooth flow should follow.

Step 4: Cassette Toilet System Overview and Access

Some Revel configurations come equipped with cassette toilets instead of the traditional RV black tank setup. You get a toilet bowl and seat that stay bolted to the bathroom floor, connected to flush water (either from your main fresh water system or a standalone flush tank), and a removable waste cartridge (typically holding 4-6 gallons) that you extract through an exterior access door whenever it needs dumping. Class B builders love cassette systems because they free up interior space, let you dump at any regular toilet instead of hunting dump stations, and eliminate the plumbing complexity of a fixed black tank. The price for that convenience is that you have to stay on top of seal maintenance and vent integrity, otherwise odors will seep into your living space and leaks will find their way into hard-to-reach cavities. To remove the cassette for service work, locate the exterior access door (almost always on the driver’s side of the van), open it, and slide the cassette out by gripping its handle and pressing whatever release mechanism your model uses.

Step 5: Cassette Toilet Seal Maintenance and Replacement

Seal integrity is the backbone of cassette toilet reliability. Two sets of seals do the heavy lifting: a large blade seal that closes off the opening between the toilet bowl and the cassette tank, plus O-ring seals ringing the cassette’s perimeter where it locks into the toilet housing. When those seals fail, odors escape into your van and waste starts leaking into cavities. To service them, slide the cassette completely out of the van through that exterior door and position it on level ground outdoors — this process gets messy. Open the cassette tank and locate the blade seal at the top where waste enters the tank. Look for cracks, tears, or any signs the rubber has gone hard and brittle. Clean that seal thoroughly with warm soapy water, rinse it completely, and dry it down. Then apply a coating of silicone-based lubricant formulated for RV toilet seals — never petroleum-based products, which will break down the rubber. If the seal is already damaged beyond cleaning and lubrication, replace it according to your cassette’s manual: typically you’ll remove a handful of screws around its perimeter, pull the old seal away, clean the mounting surface, and press the new seal home. Also inspect those O-rings around the cassette’s outer edge and give them the same treatment — clean, dry, and silicone lubricant.

Step 6: Water System Sanitization and Winterization

At least once a year (and definitely after any period of storage), run your fresh water system through a sanitization cycle to kill bacteria, break up biofilm, and clear out accumulated gunk. Start by draining your fresh water tank completely via the drain valve mounted underneath the van — crack that valve wide open and let gravity do the work. While the tank is draining, also crack open the drain valve on your hot water heater and remove its pressure relief valve so air can get in and the tank can drain completely. Now do the math: divide your tank capacity by 15 and multiply by 1/4 cup of standard household bleach. So a 21-gallon tank gets roughly 1/3 cup of bleach mixed with a couple gallons of water, poured in through your tank fill opening. Top off the tank with fresh potable water. Fire up the pump and crack open each faucet (hot and cold handles) until you smell bleach coming out, then close them all back up. Let that bleach solution sit in your plumbing for at least 4-6 hours — overnight is even better. Then drain the entire system again, refill with fresh water, and flush every faucet, the shower, and the toilet multiple times until you’ve purged every trace of the chlorine smell. You might need to empty and refill 2-3 times before the bleach scent finally disappears.

The Shurflo 4008 Pump — Why This One Stays Running When the Revel’s Fresh Water System Gets Hammered

The stock Winnebago Revel fresh water pump fails quietly — you get weak flow at the kitchen sink, then nothing. By the time you notice, you’re dry camping with no redundancy and no water pressure for a shower. The Shurflo 4008-101-A65 is the replacement that actually holds up to full-time duty and the thermal cycling these Class B rigs go through.

What works

• Holds steady at 3.0 GPM output even after months of intermittent duty — won’t drop pressure under load the way the factory pump does.
• The motor doesn’t cavitate, so it stays cool; you can accidentally run it dry for 30 seconds without torching it if you forget winterization one year.
• 12V current draw is flat and predictable — your coach lights won’t dim and your inverter won’t reset when the pump kicks in.

What doesn’t

• You’ll need to pull and replace (or bypass) the check valve assembly at the same time — half the “pump failures” people encounter are actually check valve failures masquerading as pump wear.
• If the original pump housing cracked during a freeze cycle (happens more than you’d think), the new pump won’t fit the bracket without shimming or bracket modification.

I questioned whether the OEM housing would accept the Shurflo’s wider motor body until I test-fitted it on the bench — it does, barely, but the clearance is tighter than the spec sheet suggests. Order the Shurflo 4008-101-A65 here.
