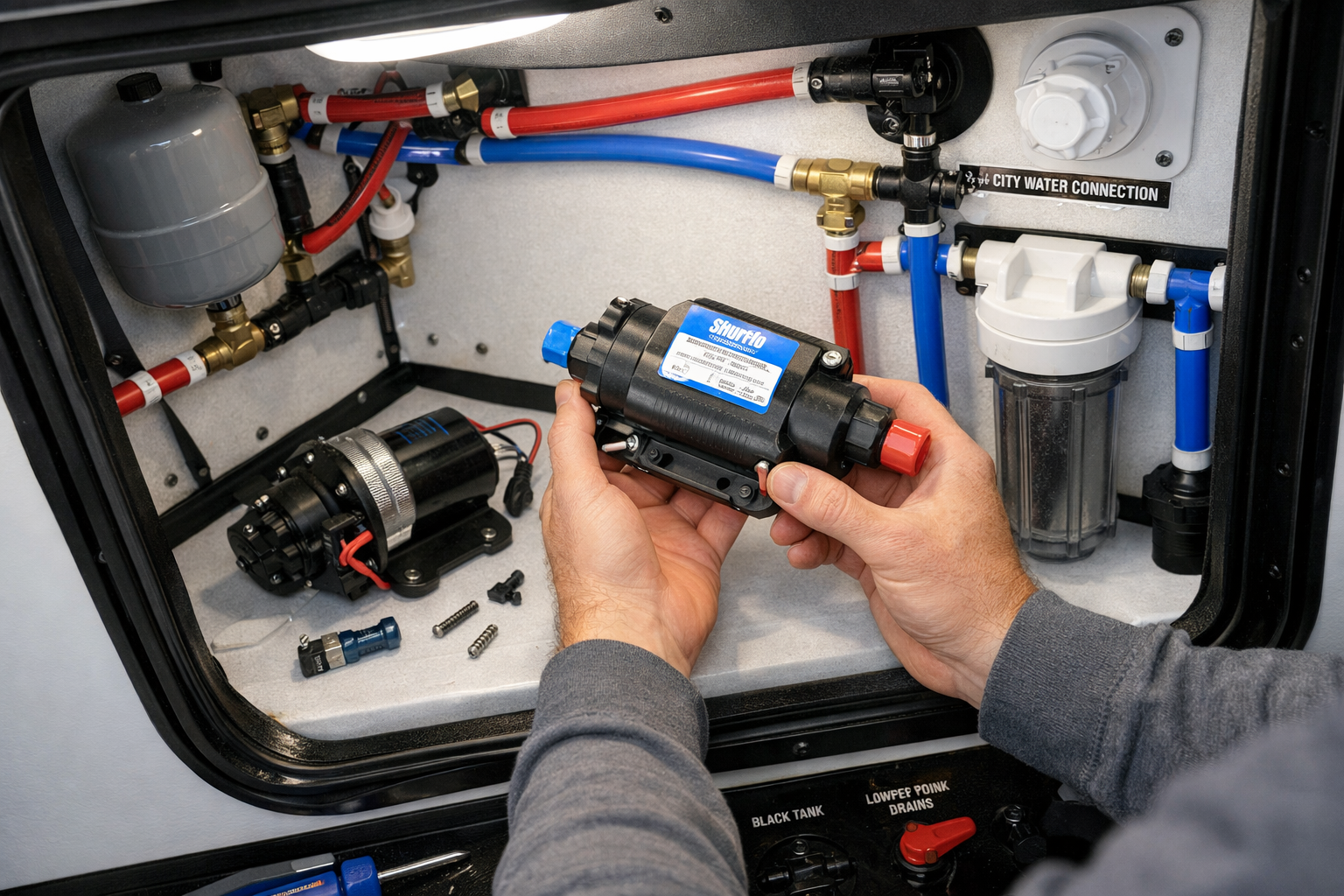

WINNEBAGO MICRO MINNIE 1700BH – Water Pump Replacement

I was parked at a BLM spot outside Moab, Utah—mid-October, temps dropping fast at night—when I turned on the kitchen faucet and got nothing but a dry click from the pump. Not even a sputter. I’d been on the road for eight weeks straight, and the 1700BH’s water system had been running flawlessly until that moment. That’s when I learned that the Winnebago Micro Minnie 1700BH’s 12-volt water pump doesn’t always go out with warning; sometimes it just quits mid-trip, leaving you choosing between a long dealer wait or figuring it out yourself in a parking lot with a flashlight and whatever tools fit in your van. The reality is that dealer service bays have a six-to-ten-week backlog these days, and if you’re living in this rig full-time, that waiting period means either going thirsty or paying a mobile technician premium rates to come to wherever you happen to be stranded. The silver lining: this repair is genuinely within reach for someone with basic tools and a willingness to get underneath the rig. The pump itself costs less than a tank of fuel, the job takes an afternoon, and once you’ve done it once, you’ll never feel helpless about water system failure again.

The 3.5GPM Diaphragm Pump That Actually Matches the Micro Minnie’s Factory Spec

Factory Shurflo pumps in the 1700BH tend to fail without any fanfare — one day pressure is normal, the next day you open a tap and there’s absolutely nothing there. This replacement diaphragm pump is engineered to the exact OEM specifications, delivering the same 45 PSI threshold and 3.5 GPM output, but constructed from materials that hold up better against the repeated freeze-thaw cycles and the low-voltage conditions that eat away at the original equipment.

Parts and Tools

• 12V 3.5GPM self-priming diaphragm water pump rated for 45 PSI, matched to OEM Shurflo specifications — check current price
• Two stainless steel hose clamps sized to fit 1/2-inch inlet and outlet lines
• Replacement 1/2-inch vinyl or reinforced rubber water line (12–18 inches) for inlet and outlet connections
• Teflon tape or plumber’s thread sealant for any threaded connections
• Small container or bucket to catch residual water from disconnected lines
• Adjustable wrench or 10mm socket set for pump mounting bolts

Step-by-Step Instructions

Step 1: Kill the 12V system and locate the pump

Turn off the main 12-volt battery disconnect switch or breaker in the Micro Minnie’s electrical panel. This prevents accidental pump activation while you work and protects you from electrical shock. The pump sits in the underbelly, typically mounted on the driver’s side near the fresh water tank. Crawl underneath with a flashlight and locate the cylindrical pump body and its two hose connections. Take a photo of the inlet and outlet lines before touching anything—you need to know which line comes from the tank and which feeds the faucets.

Step 2: Drain the system and disconnect the hoses

Open the lowest faucet in the rig (usually the shower or a floor drain) to relieve pressure and let residual water drip out. Place a bucket under the pump’s inlet and outlet connections. Loosen the hose clamps on both lines using your wrench or socket. Slide the clamps back along the hose, then gently twist and pull each line free from the pump barbs. If the hose is stuck, work it side-to-side rather than yanking straight—vinyl hardens over time and tears easily. Let any remaining water drain into the bucket.

Step 3: Remove the old pump from its mounting bracket

The pump is bolted to a small bracket or directly to the frame using two or three bolts, usually 10mm. Support the pump with one hand while you unscrew each bolt with your wrench. Keep the bolts in a small container so you don’t lose them in the underbelly. Carefully lower the old pump and set it aside. Inspect the mounting bracket for cracks or corrosion; if it’s damaged, you may need to fabricate or source a replacement bracket before installing the new pump.

Step 4: Install the new pump and secure it

Position the new pump on the bracket, aligning the bolt holes. Insert the bolts and hand-tighten them first to ensure alignment. Then use your wrench to tighten each bolt firmly but not aggressively—over-torquing can crack the pump housing. The pump should sit level and stable with no rocking. Double-check that the inlet and outlet ports face the direction of your disconnected hoses and that there’s enough clearance for the hose connections without kinking.

Step 5: Reconnect the inlet and outlet lines

Slide a hose clamp onto each line, then push the inlet line (from the tank) firmly onto the inlet barb until it seats fully. Repeat with the outlet line (to the faucets) on the outlet barb. Tighten each clamp snugly—firm enough that the hose won’t slip under pressure, but not so tight that you crush the barb or hose. If either line is cracked or kinked, replace it now rather than risk a leak. Visually inspect both connections for gaps or misalignment before moving on.

Step 6: Restore power and pressurize the system

Close the drain faucet you opened earlier. Switch the 12-volt battery disconnect back on. Listen for the pump to activate—you should hear a faint hum or click as it primes. If it runs for more than 10 seconds continuously, turn it off immediately; this usually means air is trapped in the line or the inlet is blocked. Open the kitchen faucet slowly and let water run for 30 seconds to purge air from the lines. The flow should build from a sputter to a steady stream.

Step 7: Test pressure and check for leaks

Turn on the faucet fully and verify that water pressure feels normal—strong enough to fill a cup in a few seconds. Open a second faucet simultaneously to confirm the pump maintains pressure under load. Crawl back under the rig with your flashlight and inspect both hose connections for drips or spray. If you see any weeping at a clamp, tighten it a quarter-turn and recheck. Let the system run for five minutes, then turn it off and wait 10 minutes to see if pressure holds (no water trickling from faucets). If everything stays dry and pressure is steady, the job is complete.

What works

• Built-in pressure switch means you’re not chasing down a separate relay module or troubleshooting why the pump refuses to activate when you need water.
• Diaphragm-style self-priming action gets you up to pressure immediately after you’ve drained the system for winter storage or run the tank bone-dry, preventing the air-pocket gridlock that traditional piston-driven pumps can develop.
• Field-replaceable sediment cartridges let you visually confirm when debris is accumulating at the inlet — you catch a real clog before it strangles your flow rate and makes you think the pump itself is worn out.

What doesn’t

• Standard courier delivery runs 10–14 days if you’re ordering just the pump; that’s too long if you’re currently sitting waterless at a campground, so ring up a mobile service provider and bite the cost if you can’t wait.
• Mounting bracket geometry can shift between 2018 and 2021 model runs — measure your pump bay dimensions ahead of time, particularly if your rig has had previous plumbing modifications or hose reconfigurations.

I second-guessed whether the integrated pressure switch would handle low-voltage spikes on a full-timer’s solar setup until I ran it on a 12V controller with a dead 200Ah bank — the pump held steady when it should have stuttered. 2026 Upgraded 2088-554-144/2088-403-144 RV Fresh Water Pump,12V 3.5GPM Self-Priming Diaphragm Water Pump,45PSI,Includes Pressure Switch and Detachable Filters,No Noise, for RV, Marine, Yacht, Caravan
